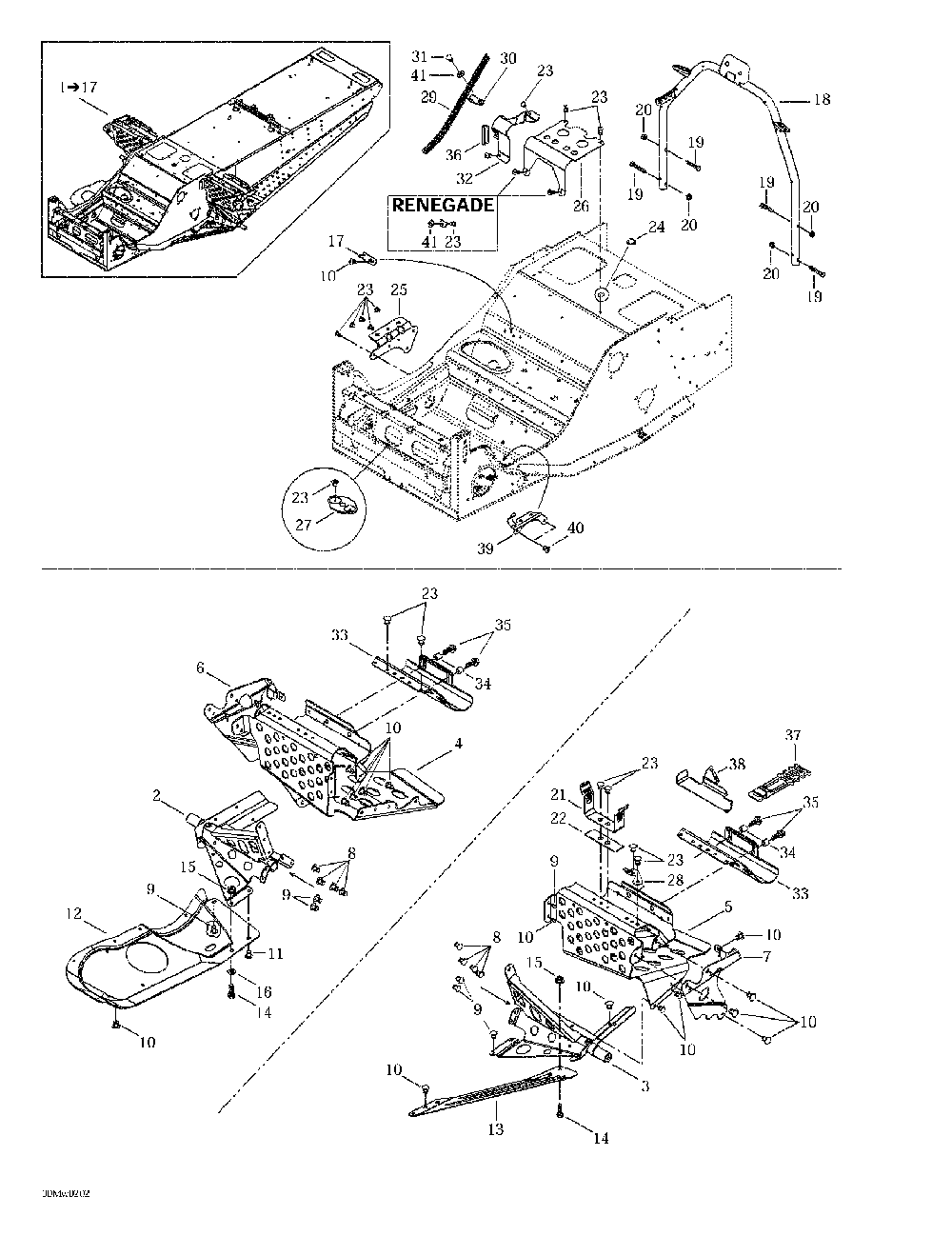

09- frame - front

Ski-Doo (Bombardier) MX Z 500/600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
518323011
Chassis *frame Includes 1 - 17. Mx Z 500. Mx Z 600.
518323010
Chassis *frame Mx Z 700. Mx Z 800.
518323016
Chassis *frame Mx Z 600.
518323015
Chassis *frame Mx Z 700. Mx Z 800.
2
518320506
Support Droit *rh.support
3
518320507
Support Gauche *lh.support
4
518323563
Repose-pied Dr.*rh.footrest
5
518323564
Repose-pied Ga.*lh.footrest
6
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh
7
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh
8
390909200
Заклепка
9
390909100
Заклепка
10
390402200
Заклепка 3/16
11
390402300
Заклепка 3/16
12
518319760
Plaque Coque Dr*plate-pan Bott.rh Mx Z 500. Mx Z 600.
518322636
0laque Coque Dr*plate-pan Bott.rh Mx Z 700. Mx Z 800.
13
518322119
Plaque Renf.ga.*plate-reinf.lh
14
207152044
Винт
15
233251414
Гайка
16
391301700
Шайба
17
518322391
Attache Doub.so*bracket Double Weld
18
518322755
Supp.guidon Sou*supp-handle Weld.
19
207663544
Винт
20
233261414
Гайка
21
518202100
Attache Gard.co*brkt-guard Belt
22
518207500
Renfort *reinforcement
24
414859400
Крышка
25
518322635
Support Silenc.*support-muffler
26
518310400
Supp.silenc.adm*supp-air Intake
27
518201307
Plaque Att.soud*plate-brkt Weld
28
518322031
Attache Trousse*bracket-tool Kit
29
518321569
Направляющая троса
30
518321570
Хомут открывающийся
31
390406500
Заклепка 3/16
32
518322699
Support Boyaux *support-hose
33
518323504
Accroche-pied *toe-hold Mx Z 600. Mx Z 700. Mx Z 800.
34
415107300
Ajout *insert Mx Z 600. Mx Z 700. Mx Z 800.
35
207661644
Screw-hex.flange Din.6921 (adrenaline) Mx Z 600. Mx Z 700. Mx Z 800.
36
271000110
Moul.protect. *trim-protect.
37
570069700
Loquet *latch
38
518321999
Support Trousse*support-tool Kit
39
515175254
Support Cablage*support-cable
41
517225900
Washer - Flat Mx Z 600. Mx Z 700. Mx Z 800.
