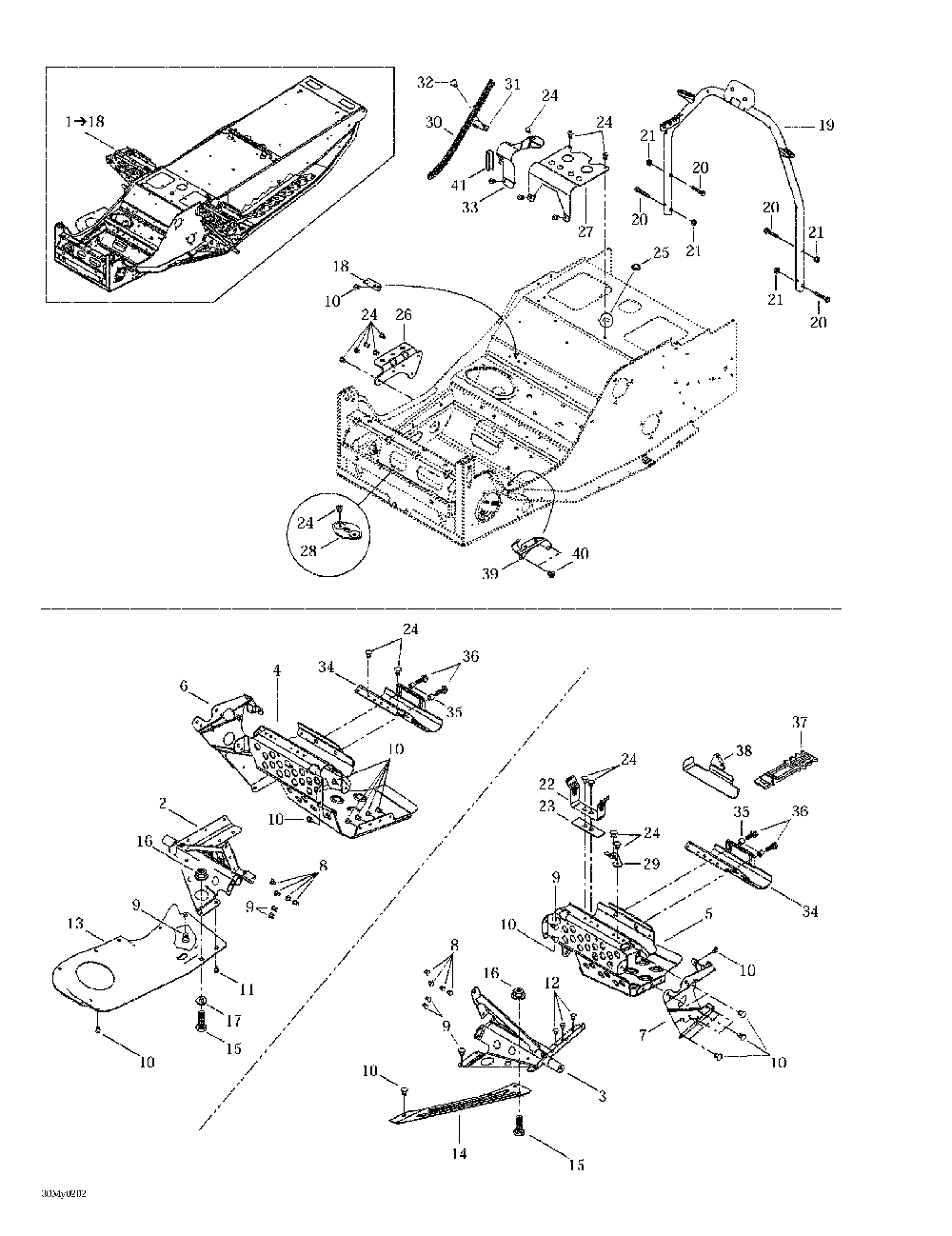

09- frame - front (x)

Ski-Doo (Bombardier) MX Z 500/600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
518323009
Chassis *frame Includes 1 - 18. Mx Z 600.
518323008
Chassis *frame Mx Z 700. Mx Z 800.
2
518322845
Support Droit *rh.support Mx Z 600. Mx Z 700. Mx Z 800.
3
518322848
Support Gauche *lh.support Mx Z 600. Mx Z 700. Mx Z 800.
4
518323563
Repose-pied Dr.*rh.footrest Mx Z 600. Mx Z 700. Mx Z 800.
5
518323564
Repose-pied Ga.*lh.footrest Mx Z 600. Mx Z 700. Mx Z 800.
6
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh Mx Z 600. Mx Z 700. Mx Z 800.
7
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh Mx Z 600. Mx Z 700. Mx Z 800.
8
390909200
Rivet Avex *rivet Avex Mx Z 600. Mx Z 700. Mx Z 800.
9
390909100
Rivet Avex *rivet Avex Mx Z 600. Mx Z 700. Mx Z 800.
10
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 600. Mx Z 700. Mx Z 800.
11
390402300
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 600. Mx Z 700. Mx Z 800.
12
390402400
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 600. Mx Z 700. Mx Z 800.
13
518319760
Plaque Coque Dr*plate-pan Bott.rh Mx Z 600.
518322636
0laque Coque Dr*plate-pan Bott.rh Mx Z 700. Mx Z 800.
14
518322119
Plaque Renf.ga.*plate-reinf.lh Mx Z 600. Mx Z 700. Mx Z 800.
15
207152044
Screw-hex.cap Din.933 Mx Z 600. Mx Z 700. Mx Z 800.
16
233251414
Nut-flange Elastic Din.6926 Mx Z 600. Mx Z 700. Mx Z 800.
17
391301700
Rondelle *washer Mx Z 600. Mx Z 700. Mx Z 800.
18
518322391
Attache Doub.so*bracket Double Weld Mx Z 600. Mx Z 700. Mx Z 800.
19
518322755
Supp.guidon Sou*supp-handle Weld. Mx Z 600. Mx Z 700. Mx Z 800.
20
207664044
Screw-hex.flange Din.6921 Mx Z 600. Mx Z 700. Mx Z 800.
21
233261414
Nut-flange Elastic Din.6926 Mx Z 600. Mx Z 700. Mx Z 800.
22
518202100
Attache Gard.co*brkt-guard Belt Mx Z 600. Mx Z 700. Mx Z 800.
23
518207500
Renfort *reinforcement Mx Z 600. Mx Z 700. Mx Z 800.
25
414859400
Bouchon *cap Mx Z 600. Mx Z 700. Mx Z 800.
26
518322635
Support Silenc.*support-muffler Mx Z 600. Mx Z 700. Mx Z 800.
27
518310400
Supp.silenc.adm*supp-air Intake Mx Z 600. Mx Z 700. Mx Z 800.
28
518201307
Plaque Att.soud*plate-brkt Weld Mx Z 600. Mx Z 700. Mx Z 800.
29
518322031
Attache Trousse*bracket-tool Kit Mx Z 600. Mx Z 700. Mx Z 800.
30
518321569
Guide Corde *guide-rope Mx Z 600. Mx Z 700. Mx Z 800.
31
518321570
Attache Collier*open Clamp Mx Z 600. Mx Z 700. Mx Z 800.
32
390406500
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 600. Mx Z 700. Mx Z 800.
33
518322699
Support Boyaux *support-hose Mx Z 600. Mx Z 700. Mx Z 800.
34
518323504
Accroche-pied *toe-hold Mx Z 600. Mx Z 700. Mx Z 800.
35
415107300
Ajout *insert Mx Z 600. Mx Z 700. Mx Z 800.
36
207661644
Screw-hex.flange Din.6921 Mx Z 600. Mx Z 700. Mx Z 800.
37
570069700
Loquet *latch Mx Z 600. Mx Z 700. Mx Z 800.
38
518321999
Support Trousse*support-tool Kit Mx Z 600. Mx Z 700. Mx Z 800.
39
515175254
Support Cablage*support-cable Mx Z 600. Mx Z 700. Mx Z 800.
41
271000110
Moul.protect. *trim-protect. Mx Z 600. Mx Z 700. Mx Z 800.
