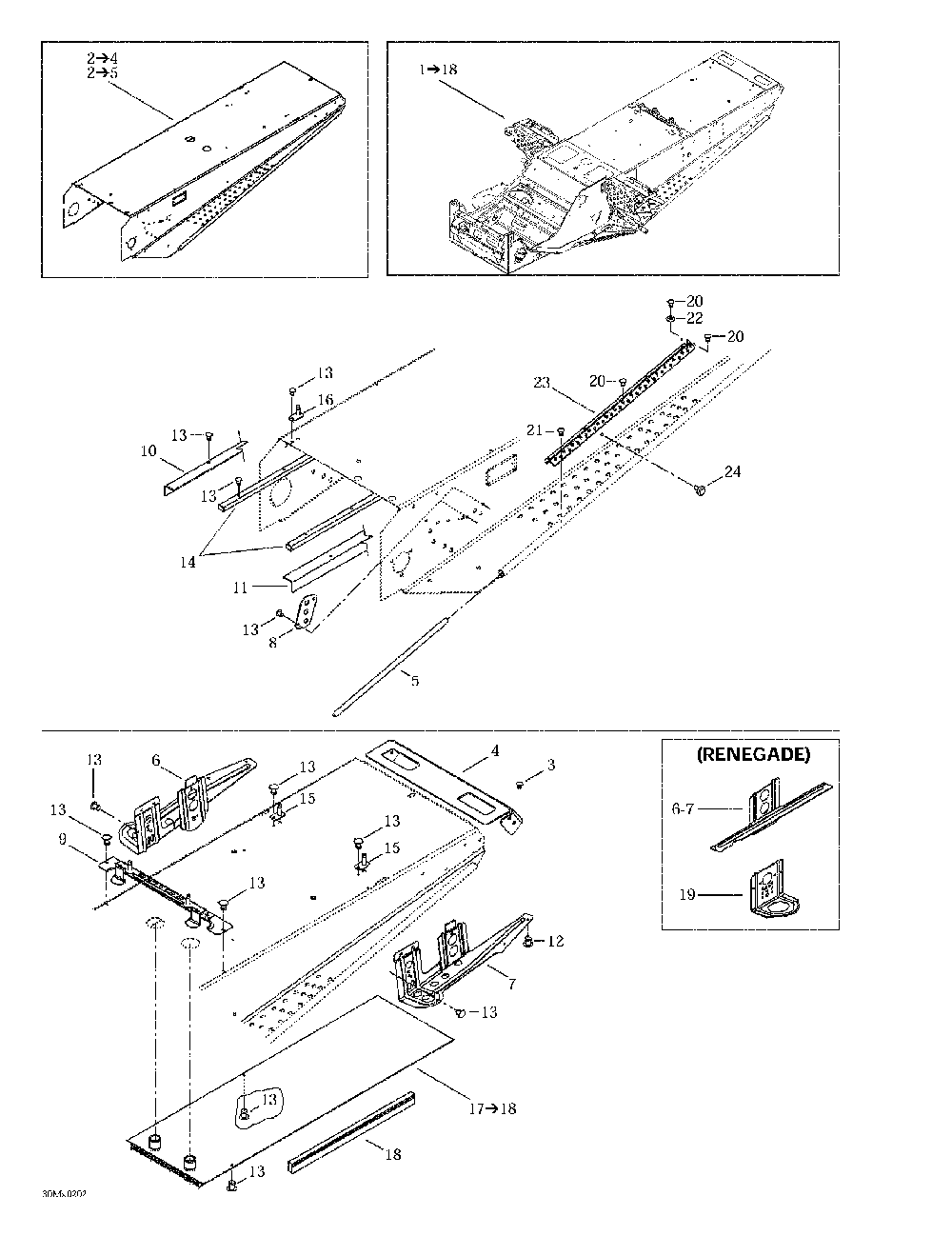

09- frame - rear

Ski-Doo (Bombardier) MX Z 500/600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
518323011
Chassis *frame Includes 1 - 18. Mx Z 500. Mx Z 600.
1
518323010
Chassis *frame Includes 1 - 18. Mx Z 700. Mx Z 800.
1
518323016
Chassis *frame Includes 1 - 18. Mx Z 600.
1
518323015
Chassis *frame Includes 1 - 19. Mx Z 700. Mx Z 800.
2
518323025
Tunnel Forme *frame-forming Includes 2 - 4. (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
2
518322534
Tunnel Forme *frame-forming Includes 2 - 5.
3
390402200
Заклепка 3/16
4
518321303
Capuchon Arr. *cap-rear
518322734
Capuchon Arr. *cap-rear (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
5
518304746
Renf.marche-pie*reinf.-foot.
6
518323315
Attache Susp.dr*rh Slide Bracket Weld
518323280
Attache Susp.dr*slide Bracket Rh (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
7
518323318
Attache Susp.ga*lh Slide Bracket
518322628
Attache Susp.ga*bracket-slide Lh (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
8
518201321
Plaque Renfort *plate-reinf.
9
518321510
Att.reserv.p. *brkt-tank Paint
10
518321561
Renf.tunnel Dr.*reinf-frame Rh
518322395
Renf.tunnel Dr.*reinf-frame Rh (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
11
518321562
Renf.tunnel Ga.*reinf-frame Lh
518322396
Renf.tunnel Ga.*reinf-frame Lh (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
12
390909200
Заклепка
14
518321543
Protect. Tunnel*protect.-frame (sport/trail/adenaline)
15
518323321
Attache Siege S*seat Bracke Weld
16
518321604
Guide Soude *guide-weld.
17
518322901
Radiateur Arr.s*rad.-rear Weld. Includes 17 - 18.
518322905
Radiateur Arr.s*rad.-rear Weld. (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
18
415012300
Защита
518321656
Protecteur *protector (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
19
518321495
Attache Avant *bracket-front (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
21
390402300
Rivet-pop 3/16 *rivet-pop 3/16 (adrenaline/renegade) Mx Z 600. Mx Z 700. Mx Z 800.
22
517225900
Washer - Flat (adrenaline/renegade) Mx Z 600. Mx Z 700. Mx Z 800.
23
518321714
Bande Antideap.*strip Mx Z 600. Mx Z 700. Mx Z 800.
518319405
Bande *strip Mx Z 600. Mx Z 700. Mx Z 800.
24
518321954
Attache Panneau*panel-fastener
