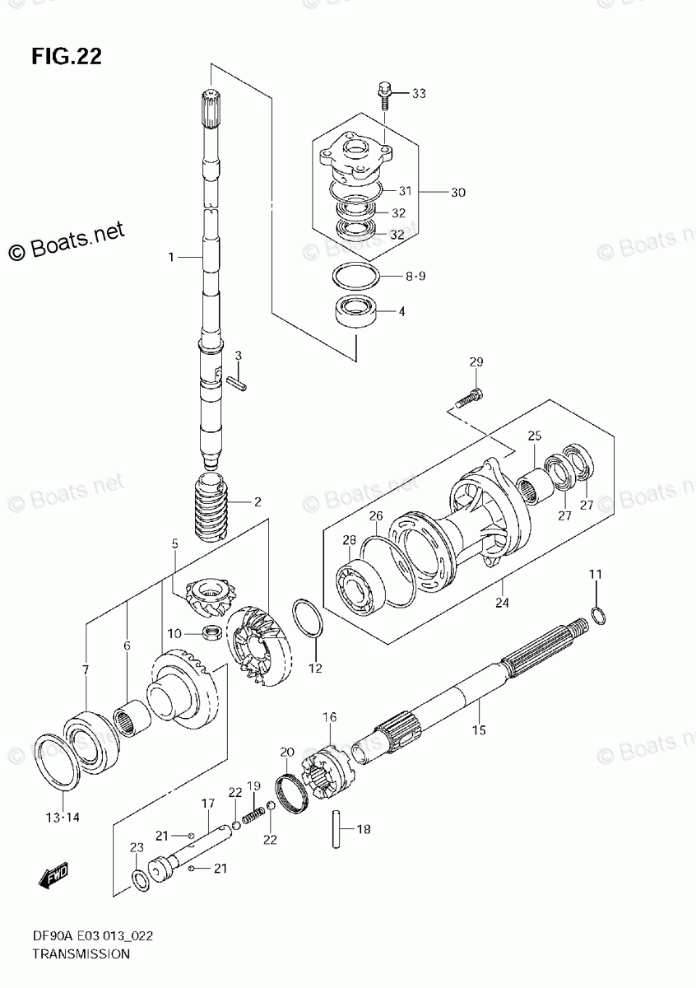

Suzuki Marine DF 90ATL

ТРАНСМИССИЯ

#

oem код

название

цена

1-1

SHAFT ASSY, DRIVE (L) *{W/TRANSOM(L)}*

SHAFT ASSY, DRIVE (L) *{W/TRANSOM(L)}*

1-2

SHAFT ASSY, DRIVE (X) *{W/TRANSOM(X)}*

SHAFT ASSY, DRIVE (X) *{W/TRANSOM(X)}*

2

COLLAR, DRIVE SHAFT

COLLAR, DRIVE SHAFT

3

SPRING PIN (5X14)

SPRING PIN (5X14)

4

BEARING (25X52X29.25)

BEARING (25X52X29.25)

5

PINION/GEAR SET

PINION/GEAR SET

6

BEARING (25X32X26)

BEARING (25X32X26)

7

BEARING (40X75X26)

BEARING (40X75X26)

8

SHIM SET, DRIVE SHAFT

SHIM SET, DRIVE SHAFT

9-14

SHIM (41X52X1.15)

SHIM (41X52X1.15)

9-13

SHIM (41X52X1.1)

SHIM (41X52X1.1)

9-1

SHIM (41X52X0.5)

SHIM (41X52X0.5)

9-9

SHIM (41X52X0.9)

SHIM (41X52X0.9)

9-8

SHIM (41X52X0.85)

SHIM (41X52X0.85)

9-6

SHIM (41X52X0.75)

SHIM (41X52X0.75)

9-5

SHIM (41X52X0.7)

SHIM (41X52X0.7)

9-4

SHIM (41X52X0.65)

SHIM (41X52X0.65)

9-3

SHIM (41X52X0.6)

SHIM (41X52X0.6)

9-2

SHIM (41X52X0.55)

SHIM (41X52X0.55)

9-11

SHIM (40X52X1)

SHIM (40X52X1)

9-12

SHIM (41X52X1.05)

SHIM (41X52X1.05)

9-10

SHIM (41X52X0.95)

SHIM (41X52X0.95)

9-7

SHIM (40X52X0.8)

SHIM (40X52X0.8)

10

NUT

NUT

11-5

SHIM (25X32X1.3) *{PROP SHAFT REV THRUST}*

SHIM (25X32X1.3) *{PROP SHAFT REV THRUST}*

11-6

SHIM (25X32X1.4) *{PROP SHAFT REV THRUST}*

SHIM (25X32X1.4) *{PROP SHAFT REV THRUST}*

11-7

SHIM (25X32X1.5) *{PROP SHAFT REV THRUST}*

SHIM (25X32X1.5) *{PROP SHAFT REV THRUST}*

11-9

SHIM (25X32X1.7) *{PROP SHAFT REV THRUST}*

SHIM (25X32X1.7) *{PROP SHAFT REV THRUST}*

11-1

SHIM (25X32X0.5) *{PROP SHAFT REV THRUST}*

SHIM (25X32X0.5) *{PROP SHAFT REV THRUST}*

11-2

SHIM (25X32X1) *{PROP SHAFT REV THRUST}*

SHIM (25X32X1) *{PROP SHAFT REV THRUST}*

11-3

SHIM (25X32X1.09) *{PROP SHAFT REV THRUST}*

SHIM (25X32X1.09) *{PROP SHAFT REV THRUST}*

11-4

SHIM (25X32X1.21) *{PROP SHAFT REV THRUST}*

SHIM (25X32X1.21) *{PROP SHAFT REV THRUST}*

11-8

SHIM (25X32X1.6) *{PROP SHAFT REV THRUST}*

SHIM (25X32X1.6) *{PROP SHAFT REV THRUST}*

12-2

SHIM (40X46.8X0.6) *{REV GEAR}*

SHIM (40X46.8X0.6) *{REV GEAR}*

12-1

SHIM (40X46.8X0.55) *{REV GEAR}*

SHIM (40X46.8X0.55) *{REV GEAR}*

12-10

SHIM (40X46.8X1) *{REV GEAR}*

SHIM (40X46.8X1) *{REV GEAR}*

12-11

SHIM (40X46.8X1.05) *{REV GEAR}*

SHIM (40X46.8X1.05) *{REV GEAR}*

12-3

SHIM (40X46.8X0.65) *{REV GEAR}*

SHIM (40X46.8X0.65) *{REV GEAR}*

12-8

SHIM (40X46.8X0.9) *{REV GEAR}*

SHIM (40X46.8X0.9) *{REV GEAR}*

12-9

SHIM (40X46.8X0.95) *{REV GEAR}*

SHIM (40X46.8X0.95) *{REV GEAR}*

12-7

SHIM (40X46.8X085) *{REV GEAR}*

SHIM (40X46.8X085) *{REV GEAR}*

12-4

SHIM (40X46.8X0.7) *{REV GEAR}*

SHIM (40X46.8X0.7) *{REV GEAR}*

12-5

SHIM (40X46.8X0.75) *{REV GEAR}*

SHIM (40X46.8X0.75) *{REV GEAR}*

12-6

SHIM (40X46.8X0.8) *{REV GEAR}*

SHIM (40X46.8X0.8) *{REV GEAR}*

13

SHIM SET, FORWARD GEAR *{FWD GEAR}*

SHIM SET, FORWARD GEAR *{FWD GEAR}*

14-10

SHIM (64X75X1) *{FWD GEAR}*

SHIM (64X75X1) *{FWD GEAR}*

14-9

SHIM (64X75X0.95) *{FWD GEAR}*

SHIM (64X75X0.95) *{FWD GEAR}*

14-8

SHIM (64X75X0.9) *{FWD GEAR}*

SHIM (64X75X0.9) *{FWD GEAR}*

14-7

SHIM (64X75X0.85) *{FWD GEAR}*

SHIM (64X75X0.85) *{FWD GEAR}*

14-6

SHIM (64X75X0.8) *{FWD GEAR}*

SHIM (64X75X0.8) *{FWD GEAR}*

14-4

SHIM (64X75X0.7) *{FWD GEAR}*

SHIM (64X75X0.7) *{FWD GEAR}*

14-3

SHIM (64X75X0.65) *{FWD GEAR}*

SHIM (64X75X0.65) *{FWD GEAR}*

14-2

SHIM (64X75X0.6) *{FWD GEAR}*

SHIM (64X75X0.6) *{FWD GEAR}*

14-1

SHIM (64X75X0.55) *{FWD GEAR}*

SHIM (64X75X0.55) *{FWD GEAR}*

14-5

SHIM (64X75X0.75) *{FWD GEAR}*

SHIM (64X75X0.75) *{FWD GEAR}*

15

SHAFT, PROPELLER

SHAFT, PROPELLER

16

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

17

PIN, CONNECTOR

PIN, CONNECTOR

18

PIN (7X44)

PIN (7X44)

19

SPRING

SPRING

20

SPRING

SPRING

21

BALL

BALL

22

BALL

BALL

23

SHIM (25X32X3)

SHIM (25X32X3)

24

56120-87L30-0EP

HOUSING, PROP SHAFT BRG (BLACK)

HOUSING, PROP SHAFT BRG (BLACK)

25

BEARING (25X32X26)

BEARING (25X32X26)

26

O RING (D:3.1 ID:89.4)

O RING (D:3.1 ID:89.4)

27

OIL SEAL (25X38X8)

OIL SEAL (25X38X8)

28

BEARING

BEARING

29

BOLT (8X30)

BOLT (8X30)

30

HOUSING, DRIVE SHAFT OIL SEAL

HOUSING, DRIVE SHAFT OIL SEAL

31

O RING (D:3.5,ID:45.7)

O RING (D:3.5,ID:45.7)

32

OIL SEAL (22X36X6)

OIL SEAL (22X36X6)

33

BOLT (8X25)

BOLT (8X25)
