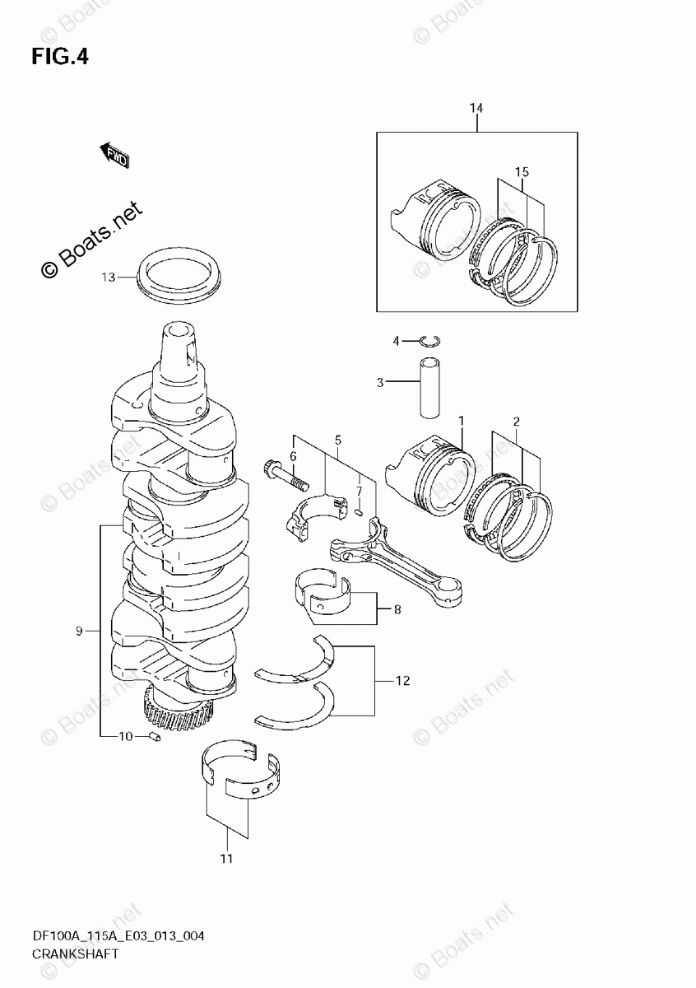

КОЛЕНЧАТЫЙ ВАЛ

Suzuki Marine DF 115ATX
Suzuki Marine
#oem кодцена
1
12111-92J00
ПОРШЕНЬ
2
12140-92J01
КОЛЬЦА ПОРШНЕВЫЕ
3
12151-86FA0
ПАЛЕЦ ПОРШНЕВОЙ
4
09381-21002
СТОПОРНОЕ КОЛЬЦО
5
12160-92J10
ШАТУН
6
12163-35F00
БОЛТ ШАТУНА
7
04221-04089
PIN
8-2
12100-92840-025
BEARING SET,CONNROD (US:0.25) *{OPT}*
8-1
12100-92841-0A0
BEARING SET,CONNROD (GREEN)
9
12220-92J00
CRANKSHAFT (NT:29)
10
09202-05027
PIN (5X8.8)
11-8
12300-85854-0CA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED}*
11-5
12340-85FB3-0E0
BEARING SET, CRANKSHAFT *{BLUE}*
11-6
12300-85854-0AA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED/GREEN}*
11-7
12300-85854-0BA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED/BLACK}*
11-9
12300-85854-0DA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED/YELLOW}*
11-10
12300-85854-0EA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED/BLUE}*
11-1
12340-85FB3-0A0
BEARING SET, CRANKSHAFT *{GREEN}*
11-2
12340-85FB3-0B0
BEARING SET, CRANKSHAFT *{BLACK}*
11-3
12340-85FB3-0C0
BEARING SET, CRANKSHAFT *{NON}*
11-4
12340-85FB3-0D0
BEARING SET, CRANKSHAFT *{YELLOW}*
12-1
12300-85830
BEARING SET, CRANK THRUST
12-2
12300-85830-012
BEARING SET, CRANK THRUST (OS:0.12) *{OPT}*
13
09283-52004
OIL SEAL (52X70X10)
14
12100-92J01-050
PISTON SET (OS:0.50) *{OPT}*
15
12140-92J01-050
RING SET, PISTON (OS:0.50) *{OPT}*
16
SPECIAL-NOTE
NOTE: THERE IS A PLAIN BEARING KIT AVAILABLE FOR THIS MODEL. PART NUMBER 99104-DFKIT-006
