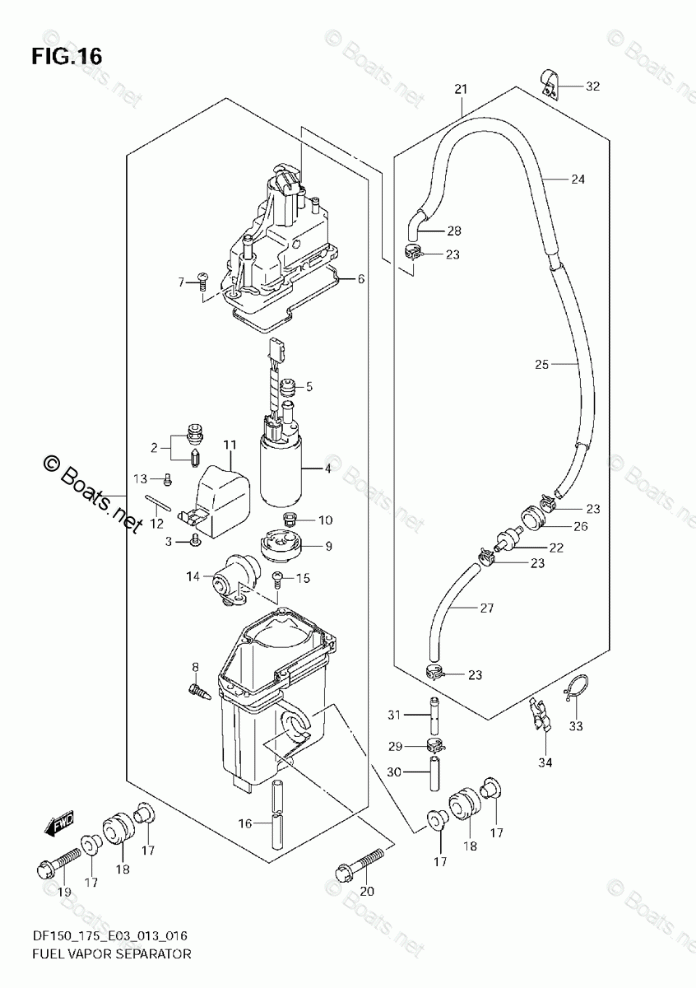

СЕПАРАТОР ТОПЛИВНЫХ ПАРОВ

Suzuki Marine DF 175TX
Suzuki Marine
#oem кодцена
1
15600-96J01
SEPARATOR, FUEL VAPOR
2
13370-96J00
VALVE, NEEDLE
3
02142-0408B
SCREW
4
15200-96J00
PUMP, FUEL
5
15647-93J00
BUSH
6
15626-96J00
SEAL
7
15628-99E00
SCREW (L:15)
8
15629-99E10
SCREW, DRAIN
9
15641-96J00
SPACER, FUEL PUMP
10
15642-90J00
FILTER, FUEL PUMP
11
15650-96J00
FLOAT
12
13254-01010
PIN
13
02112-0408A
SCREW
14
15760-93J00
REGULATOR
15
02112-05107
SCREW
16
15683-87J00
HOSE, DRAIN
17
09169-08042
WASHER
18
09320-12072
CUSHION
19
01550-08357
BOLT
20
01550-08407
BOLT
21
15660-96J11
HOSE, EVAPORATION
22
15410-98500
FILTER, EVAPORATION
23
09401-08412
CLIP
24
18498-87JC0
PROTECTOR, EVAP HOSE (9.5X11.5X450)
25
18498-87JC0
PROTECTOR, EVAP HOSE (9.5X11.5X450) *{L:450->300}*
26
09320-20008
CUSHION
27
09352-50823-600
HOSE (5X8.2X600) *{L:600->120}*
28
09352-50823-00B
HOSE (5X8.2X2000) *{L:2000->860}*
29
09401-08412
CLIP
30
09352-50823-600
HOSE (5X8.2X600) *{L:600->45}*
31
09364-06010
UNION
32
09403-13408
CLAMP
33
09408-00008
CLIP (ID:20)
34
09408-00078
CLAMP
35
15690-96J01
HOSE SET, EVAPORATION *{OPT NOT ILLUSTRATED}*
