Цилиндр, выпускной коллектор (593) Запчасти для снегоходов Ski-Doo (Bombardier) Skandic 500/600 (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

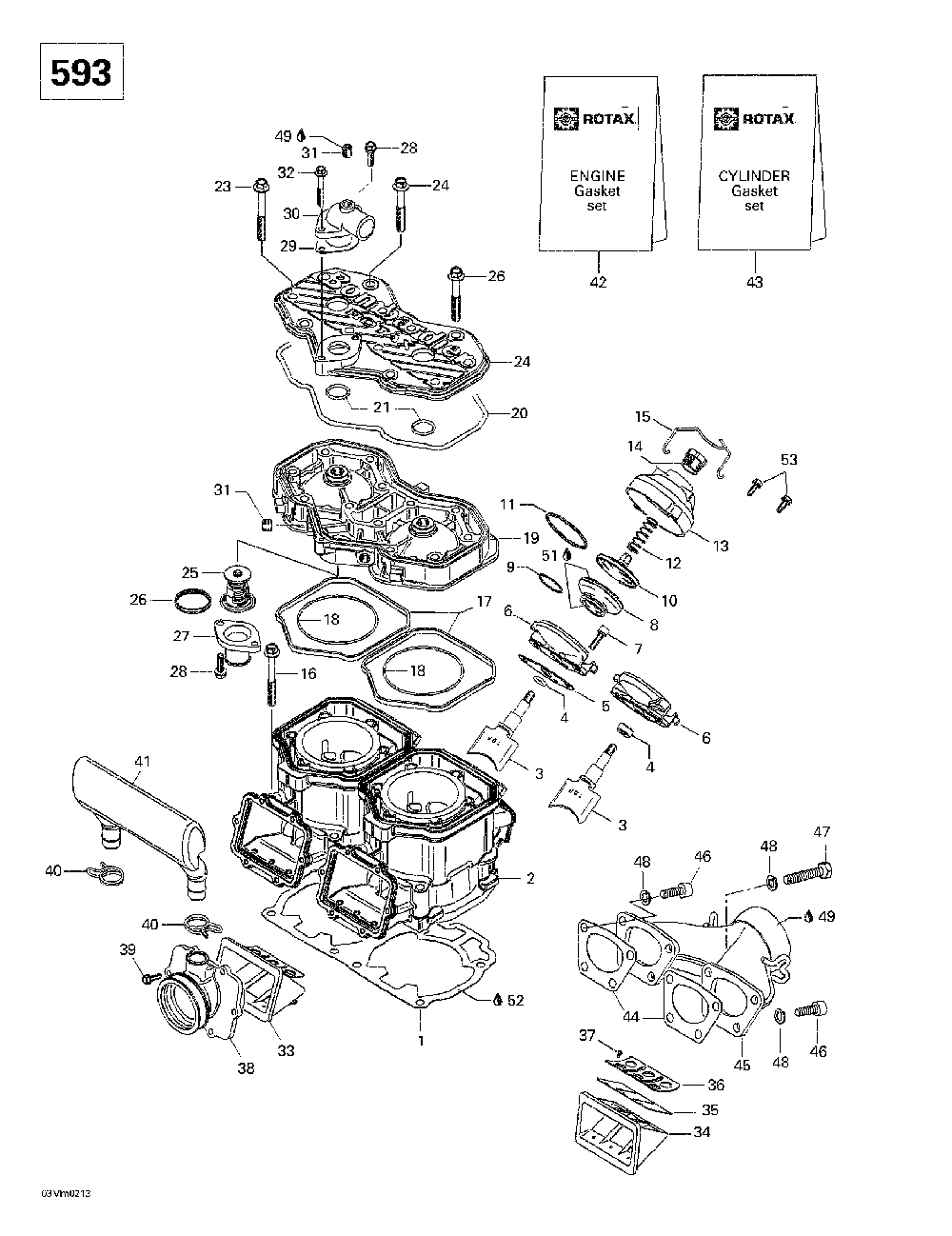

Цилиндр, выпускной коллектор (593)

Ski-Doo (Bombardier) Skandic 500/600

Цилиндр, выпускной коллектор (593)

#

oem код

название

цена

1

Joint 0, 8 *gasket 0, 8 Skandic 600.

Joint 0, 8 *gasket 0, 8 Skandic 600.

Joint 0.7 *gasket 0.7 Skandic 600.

Joint 0.7 *gasket 0.7 Skandic 600.

Joint 0, 6 *gasket 0, 6 Skandic 600.

Joint 0, 6 *gasket 0, 6 Skandic 600.

Joint 0, 5 *gasket 0, 5 Skandic 600.

Joint 0, 5 *gasket 0, 5 Skandic 600.

Joint 0, 4mm *gasket 0, 4mm Skandic 600.

Joint 0, 4mm *gasket 0, 4mm Skandic 600.

2

Cylindre + Chem*cylinder-w.sle Skandic 600.

Cylindre + Chem*cylinder-w.sle Skandic 600.

3

Soupape Echap. *valve-exhaust Skandic 600.

Soupape Echap. *valve-exhaust Skandic 600.

4

Joint Torique *o Ring Skandic 600.

Joint Torique *o Ring Skandic 600.

Anneau Etanche *seal-oil Skandic 600.

Anneau Etanche *seal-oil Skandic 600.

5

Joint *gasket Skandic 600.

Joint *gasket Skandic 600.

6

Boitier *housing-valve Skandic 600.

Boitier *housing-valve Skandic 600.

Boitier *housing-valve Skandic 600.

Boitier *housing-valve Skandic 600.

7

Screw-socket Hd.din.912 Skandic 600.

Screw-socket Hd.din.912 Skandic 600.

8

Manchon *bellows Skandic 600.

Manchon *bellows Skandic 600.

9

Bride Ressort *clamp-spring Skandic 600.

Bride Ressort *clamp-spring Skandic 600.

10

Soupape Echapp.*valve-exhaust Skandic 600.

Soupape Echapp.*valve-exhaust Skandic 600.

11

Ressort Manchon*spring-hose Skandic 600.

Ressort Manchon*spring-hose Skandic 600.

12

Ressort *spring Skandic 600.

Ressort *spring Skandic 600.

13

Couvercle Soup.*cover-valve Skandic 600.

Couvercle Soup.*cover-valve Skandic 600.

14

Vis Ajustement *screw-adjuster Skandic 600.

Vis Ajustement *screw-adjuster Skandic 600.

15

Pince A Ressort*clip-spring Skandic 600.

Pince A Ressort*clip-spring Skandic 600.

17

Bague Caout. *ring-rubber Skandic 600.

Bague Caout. *ring-rubber Skandic 600.

18

Joint Torique *o-ring Skandic 600.

Joint Torique *o-ring Skandic 600.

19

Tete-cylindre *head-cylinder Skandic 600.

Tete-cylindre *head-cylinder Skandic 600.

20

Joint Torique *o Ring Skandic 600.

Joint Torique *o Ring Skandic 600.

21

Joint Torique *o Ring Skandic 600.

Joint Torique *o Ring Skandic 600.

22

Couvercle Cyl. *cover-cyl.head Skandic 600.

Couvercle Cyl. *cover-cyl.head Skandic 600.

23

Screw-hex Collar M8x65 Sw 11 Skandic 600.

Screw-hex Collar M8x65 Sw 11 Skandic 600.

24

Collar-hex. Screw M8x56, 5 Skandic 600.

Collar-hex. Screw M8x56, 5 Skandic 600.

25

Thermostat *thermostat Skandic 600.

Thermostat *thermostat Skandic 600.

26

Bague Etanche *ring-sealing Skandic 600.

Bague Etanche *ring-sealing Skandic 600.

27

Raccord Sortie *bent Outlet Socket Skandic 600.

Raccord Sortie *bent Outlet Socket Skandic 600.

28

Screw-tapping Skandic 600.

Screw-tapping Skandic 600.

29

Joint *gasket Skandic 600.

Joint *gasket Skandic 600.

30

Raccord Sortie *bent Outlet Socket Skandic 600.

Raccord Sortie *bent Outlet Socket Skandic 600.

31

Screw-plug 1/8-27 Npt Skandic 600.

Screw-plug 1/8-27 Npt Skandic 600.

32

Screw-hex Collar M6 X 40 Skandic 600.

Screw-hex Collar M6 X 40 Skandic 600.

33

Soupape Clapets*valve-reed Ass Includes 33 - 37. Skandic 600.

Soupape Clapets*valve-reed Ass Includes 33 - 37. Skandic 600.

35

Lame Pedale *reed-pedal Skandic 600.

Lame Pedale *reed-pedal Skandic 600.

36

Arret Lame Ped.*stop-reed Ped. Skandic 600.

Arret Lame Ped.*stop-reed Ped. Skandic 600.

37

Screw-oval Head M3x5 Skandic 600.

Screw-oval Head M3x5 Skandic 600.

38

Tubulure Carb. *socket Carburetor Skandic 600.

Tubulure Carb. *socket Carburetor Skandic 600.

39

Screw-tapping M5 X 16 Skandic 600.

Screw-tapping M5 X 16 Skandic 600.

40

Bride *clamp Skandic 600.

Bride *clamp Skandic 600.

41

Resonate.d Adm.*resona.intake Skandic 600.

Resonate.d Adm.*resona.intake Skandic 600.

42

Ens.joint Etanc*kit-gasket Engine Skandic 600.

Ens.joint Etanc*kit-gasket Engine Skandic 600.

43

Ens.joint Etanc*set-gasket Cylinder Skandic 600.

Ens.joint Etanc*set-gasket Cylinder Skandic 600.

44

Joint *gasket Skandic 600.

Joint *gasket Skandic 600.

45

Collect.echapp.*manifold-exh. Skandic 600.

Collect.echapp.*manifold-exh. Skandic 600.

46

Screw-allen M8x30 Skandic 600.

Screw-allen M8x30 Skandic 600.

47

Screw-hex.cap Din.933 Skandic 600.

Screw-hex.cap Din.933 Skandic 600.

48

Washer-lock Din.127b Skandic 600.

Washer-lock Din.127b Skandic 600.

49

Enduit Etanche *sealant Skandic 600.

Enduit Etanche *sealant Skandic 600.

50

Loctite 243 *loctite-243 Skandic 600.

Loctite 243 *loctite-243 Skandic 600.

51

Dow Corning 111*dow Corning 111 Skandic 600.

Dow Corning 111*dow Corning 111 Skandic 600.

52

Loctite 518 *loctite-518 Skandic 600.

Loctite 518 *loctite-518 Skandic 600.

53

Screw-tapping M5 X 20 Skandic 600.

Screw-tapping M5 X 20 Skandic 600.

1

Joint *gasket 0.8mm Skandic 600.

Joint *gasket 0.8mm Skandic 600.

2

Cylindre + Chem*cylinder-w.sle Skandic 600.

Cylindre + Chem*cylinder-w.sle Skandic 600.
