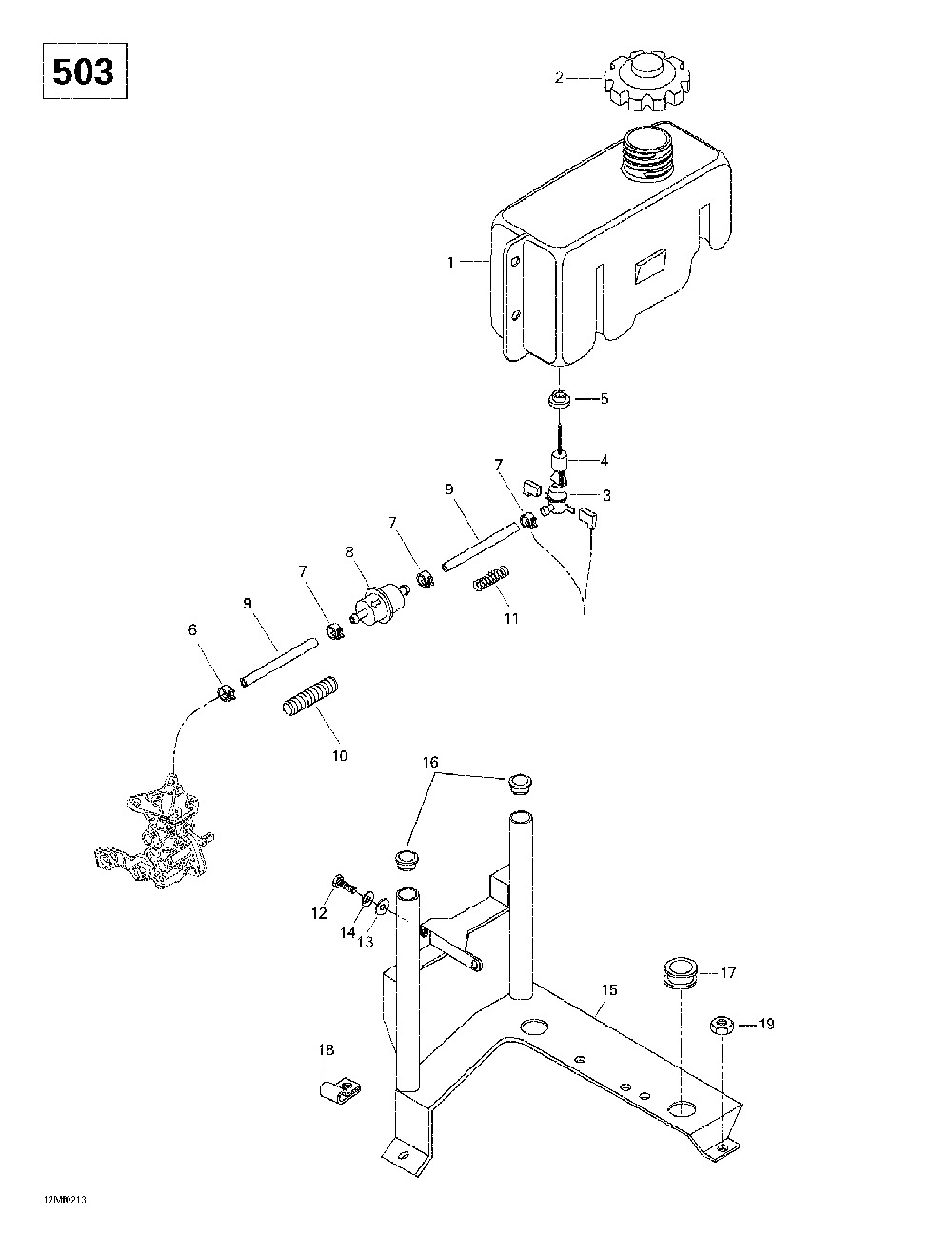

02- oil tank and support (503)

Ski-Doo (Bombardier) Skandic 500/600
Ski-Doo (Bombardier)
#oem кодцена
1
M5142700
Reservoir Huile*tank-oil Skandic 500f. Skandic 500f (swt).
2
519000044
Bouchon *cap Skandic 500f. Skandic 500f (swt).
3
414681800
Conct.niveau *switch-level Skandic 500f. Skandic 500f (swt).
4
278001013
Joint De Fil *seal-wire Skandic 500f. Skandic 500f (swt).
4
278001014
Cosse Femelle *terminal-femal Skandic 500f. Skandic 500f (swt).
4
409209500
Logement Femel.*housing-femal. Skandic 500f. Skandic 500f (swt).
4
515176327
Conct.niveau *switch-level Skandic 500f. Skandic 500f (swt).
5
570023000
Bague Isolante *ring-insulated Skandic 500f. Skandic 500f (swt).
6
414420700
Bride A Ressort*clamp-spring Skandic 500f. Skandic 500f (swt).
7
414415200
Bride A Ressort*clamp-spring Skandic 500f. Skandic 500f (swt).
8
414536500
Filtre Huile *filter-oil Skandic 500f. Skandic 500f (swt).
9
415080700
Boyau Polyure *hose*polyurethane Skandic 500f. Skandic 500f (swt).
10
M28015
Gaine *housing Skandic 500f. Skandic 500f (swt).
11
M250002
Ressort *spring Skandic 500f. Skandic 500f (swt).
12
207161644
Screw-hex.cap Din.933 Skandic 500f. Skandic 500f (swt).
14
234161471
Washer-lock Black Din.127b Skandic 500f. Skandic 500f (swt).
15
M5342647
Support *support Skandic 500f. Skandic 500f (swt).
16
M28136
Capuchon *plug Skandic 500f. Skandic 500f (swt).
17
M28022
Passe-fils *grommet Skandic 500f. Skandic 500f (swt).
18
M27092
Pince *clip Skandic 500f. Skandic 500f (swt).
19
M33200
Flange Nut M6 Skandic 500f. Skandic 500f (swt).
