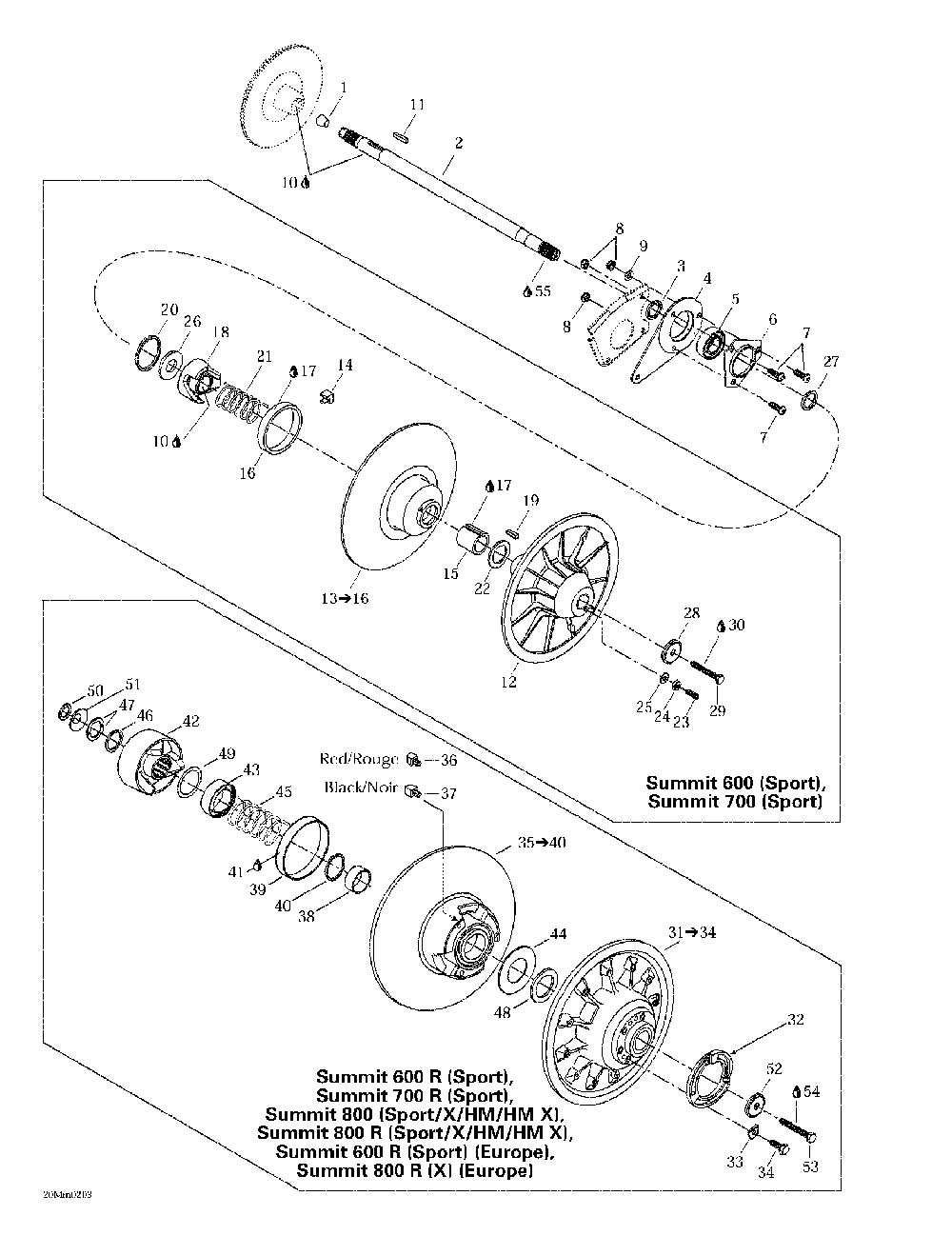

Ведомый шкив

Ski-Doo (Bombardier) Summit 600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
414784800
Bouchon Liege *cork
2
501026300
Вал
3
504149100
Втулка
4
080044200
Втулка
5
504152535
Подшипник
6
501025000
Фланец
7
205482546
Screw-socket Bn.hd.iso.7380
8
232581414
Гайка с тефлоном
9
234081410
Шайба
10
293800070
Смазка
11
507021300
Шпонка
12
417126477
Flasque Fixe Us*flange-fix.mach Summit 600. Summit 700.
13
417126486
Flasque Coul.as*flange-slid.as Includes 13 - 16. Summit 600. Summit 700.
14
414918000
Glissiere Came *shoe-cam Slid. Summit 600. Summit 700.
15
415011200
Douille *bushing Summit 600. Summit 700.
16
414876600
Coussinet Garl.*bushing-garlock Summit 600. Summit 700.
17
413703100
Loctite 609 *loctite-609 Summit 600. Summit 700.
18
417126333
Came Usine 44 *cam-mach.44 Summit 600.
417126337
Came Usine 47 *cam-mach.47 Summit 700.
19
414820800
Clavette *key Summit 600. Summit 700.
20
371903100
Circlip *circlip Summit 600. Summit 700.
21
414558900
Ressort Rappel *spring-release Summit 600. Summit 700.
22
504141900
Rondelle Appuie*washer-thrust Summit 600. Summit 700.
23
206263044
Screw-set Socket Din.913 Summit 600. Summit 700.
24
232061414
Nut-hexagonal Din.934 Summit 600. Summit 700.
25
420245370
Rondelle *washer Summit 600. Summit 700.
26
504141800
Rondelle *washer Summit 600. Summit 700.
28
517302322
Rondelle Force *washer-strength Summit 600. Summit 700.
29
207087544
Screw-hex.cap Din.931 Summit 600. Summit 700.
30
293800060
Loctite 243 *loctite-243 Summit 600. Summit 700.
31
417126527
Flasque Fixe As*flange-fix.assy Includes 31 - 34.
32
415005800
Bague Ajustem. *ring-adjust.
33
415005900
Cale De Reglage*shim-adjust.
34
207162544
Винт
207162244
Винт
35
417126318
Flasque Coul.as*flange-slid.as Includes 35 - 40.
36
417126373
Gliss.came Arr.*shoe-cam Slide Rear
37
417126374
Gliss. Came Av.*shoe-cam Slide Front
39
417126902
Coussinet *coussinet
40
371911200
Стопорное кольцо
42
417126385
Came Ass. *cam-ass. Summit 600.
417126445
Came Assemblee *cam-ass. (summit 800 R (sport, X, Hm, Hmx)) Summit 800.
43
417126381
Защитный кожух
44
504099600
Шайба
45
414978300
Пружина
46
417126375
Втулка
47
371911000
Demi-cle *key-half
48
504112300
Пластина
49
417126322
Butee Pivotante*swivel-abutment
50
417300054
Втулка
51
417300055
Защита
5
504152026
Подшипник
50
417300265
Втулка
