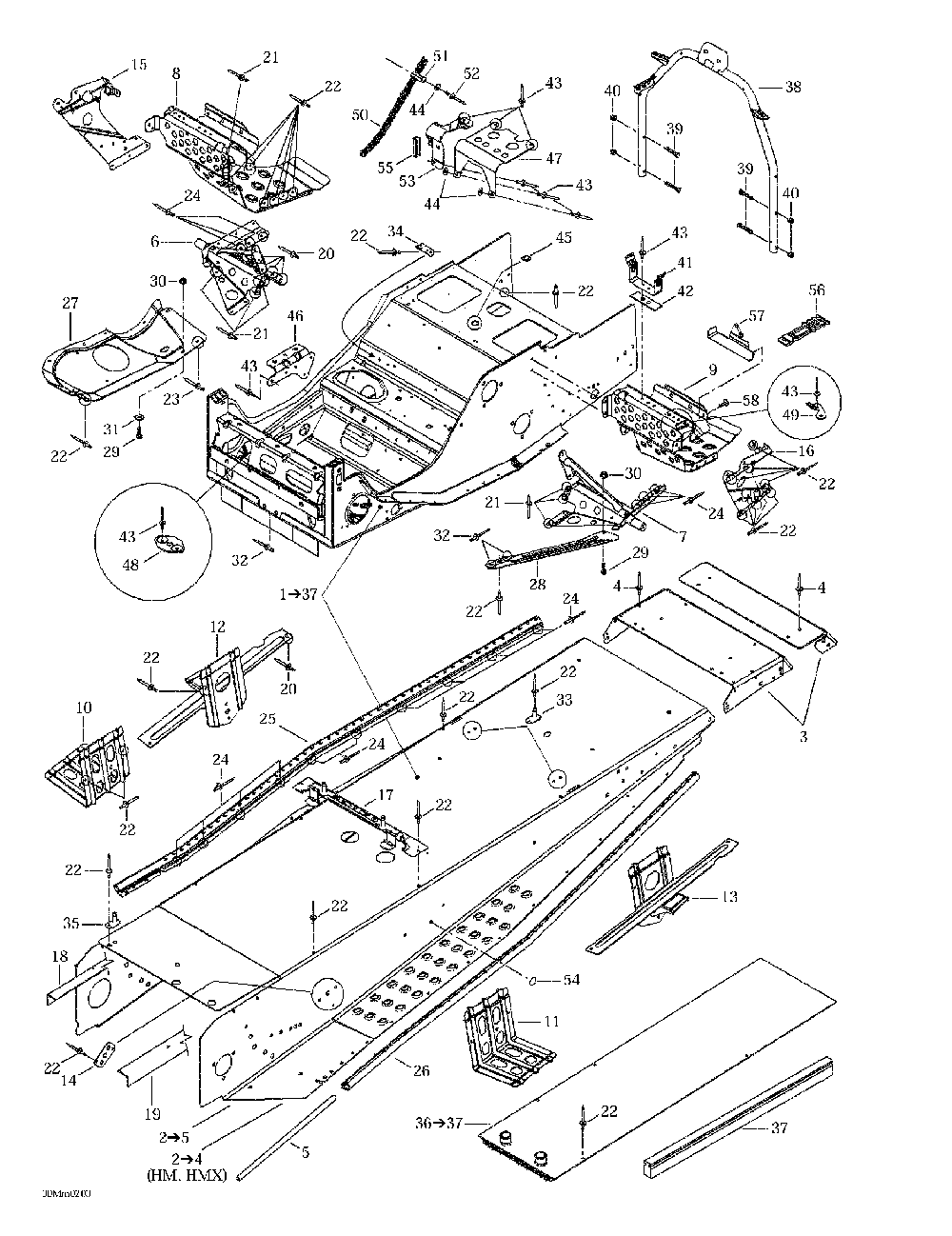

Рама

Ski-Doo (Bombardier) Summit 600/700/800

Рама

#

oem код

название

цена

1

Chassis *frame Includes 1 - 37. Summit 600.

Chassis *frame Includes 1 - 37. Summit 600.

Chassis *frame Summit 700. Summit 800.

Chassis *frame Summit 700. Summit 800.

2

Tunnel Forme *frame-forming Includes 2 - 5.

Tunnel Forme *frame-forming Includes 2 - 5.

3

Capuchon Arr. *cap-rear

Capuchon Arr. *cap-rear

Rallonge Tunnel*extention Frame Summit 800.

Rallonge Tunnel*extention Frame Summit 800.

4

Заклепка 3/16

Заклепка 3/16

5

Renf.marche-pie*reinf.-foot.

Renf.marche-pie*reinf.-foot.

6

Support Droit *rh.support

Support Droit *rh.support

7

Support Gauche *lh.support

Support Gauche *lh.support

8

Repose-pied Dr.*rh.footrest

Repose-pied Dr.*rh.footrest

9

Repose-pied Ga.*lh.footrest

Repose-pied Ga.*lh.footrest

10

Attache Av. Dr *bracket-front Rh

Attache Av. Dr *bracket-front Rh

11

Attache Av. Ga.*bracket-front Lh

Attache Av. Ga.*bracket-front Lh

12

Attache Susp.dr*brkt-slide Rh

Attache Susp.dr*brkt-slide Rh

13

Attache Susp.ga*bracket-slide Lh

Attache Susp.ga*bracket-slide Lh

14

Plaque Renfort *plate-reinf.

Plaque Renfort *plate-reinf.

15

Renf.rep.-pi.dr*reinf.-footrest Rh

Renf.rep.-pi.dr*reinf.-footrest Rh

16

Renf.rep.-pi.ga*reinf.-footrest Lh

Renf.rep.-pi.ga*reinf.-footrest Lh

17

Att.reserv.p. *brkt-tank Paint

Att.reserv.p. *brkt-tank Paint

Att.reserv.p. *brkt-tank Paint Summit 800.

Att.reserv.p. *brkt-tank Paint Summit 800.

18

Renf.tunnel Dr.*reinf-frame Rh

Renf.tunnel Dr.*reinf-frame Rh

19

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Ga.*reinf-frame Lh

20

Заклепка

Заклепка

21

Заклепка

Заклепка

23

Заклепка 3/16

Заклепка 3/16

24

Заклепка 3/16

Заклепка 3/16

25

Renfort *reinforcement

Renfort *reinforcement

26

Renfort *reinforcement

Renfort *reinforcement

27

Plaque Coque Dr*plate-pan Bott.rh Summit 600.

Plaque Coque Dr*plate-pan Bott.rh Summit 600.

0laque Coque Dr*plate-pan Bott.rh Summit 700. Summit 800.

0laque Coque Dr*plate-pan Bott.rh Summit 700. Summit 800.

28

Plaque Renf.ga.*plate-reinf.lh

Plaque Renf.ga.*plate-reinf.lh

29

Винт

Винт

30

Гайка

Гайка

31

Шайба

Шайба

32

Rivet Henrob *rivet-henrob

Rivet Henrob *rivet-henrob

33

Attache Siege S*seat Bracke Weld

Attache Siege S*seat Bracke Weld

34

Attache Doub.so*bracket Double Weld

Attache Doub.so*bracket Double Weld

35

Guide Soude *guide-weld.

Guide Soude *guide-weld.

36

Radiateur Arr.s*rad.-rear Weld. Includes 36 - 37.

Radiateur Arr.s*rad.-rear Weld. Includes 36 - 37.

Radiateur Arr.s*rad.-front Weld. Summit 800.

Radiateur Arr.s*rad.-front Weld. Summit 800.

37

Защита

Защита

38

Supp.guidon Sou*supp-handle Weld.

Supp.guidon Sou*supp-handle Weld.

39

Винт

Винт

40

Гайка

Гайка

41

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

42

Renfort *reinforcement

Renfort *reinforcement

44

Шайба

Шайба

45

Крышка

Крышка

46

Support Silenc.*support-muffler

Support Silenc.*support-muffler

47

Supp.silenc.adm*supp-air Intake

Supp.silenc.adm*supp-air Intake

48

Plaque Att.soud*plate-brkt Weld

Plaque Att.soud*plate-brkt Weld

49

Attache Trousse*bracket-tool Kit

Attache Trousse*bracket-tool Kit

50

Направляющая троса

Направляющая троса

51

Хомут открывающийся

Хомут открывающийся

52

Заклепка 3/16

Заклепка 3/16

53

Support Boyaux *support-hose

Support Boyaux *support-hose

54

Attache Panneau*panel-fastener

Attache Panneau*panel-fastener

55

Moul.protect. *trim-protect.

Moul.protect. *trim-protect.

56

Loquet *latch

Loquet *latch

57

Support Trousse*support-tool Kit

Support Trousse*support-tool Kit

59

Ens.tunnel *kit Tunnel Incl. 3, 4, 18, 19, 23, 24

Ens.tunnel *kit Tunnel Incl. 3, 4, 18, 19, 23, 24
