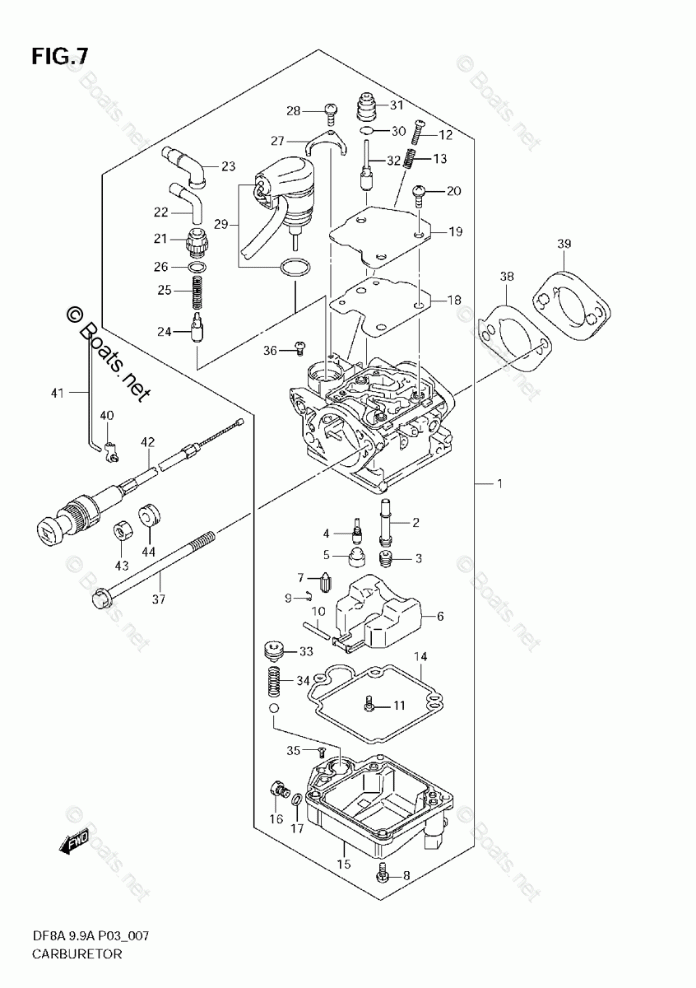

CARBURETOR Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 9.9AL (2011)

CARBURETOR

Suzuki Marine DF 9.9AL

oem код

название

цена

1-1

13200-99J00

CARBURETOR ASSY *{DF8A MANUAL STARTER}*

1-6

13200-99JM0

CARBURETOR ASSY *{DF8A ELECTRIC START DF8A TYPE:R DF8A:110001~}*

1-8

13200-99JP0

CARBURETOR ASSY *{DF9.9A ELECTRIC START DF9.9A TYPE:R DF9.9A:110001~}*

1-7

13200-99JN0

CARBURETOR ASSY *{DF9.9A MANUAL STARTER DF9.9A:110001~}*

1-2

13200-99J10

CARBURETOR ASSY *{DF8A ELECTRIC START DF8A TYPE:R}*

1-3

13200-99J20

CARBURETOR ASSY *{DF9.9A MANUAL STARTER}*

1-4

13200-99J30

CARBURETOR ASSY *{DF9.9A ELECTRIC START DF9.9A TYPE:R}*

1-5

13200-99JL0

CARBURETOR ASSY *{DF8A MANUAL STARTER DF8A:110001~}*

2-2

13236-99J20

NOZZLE, MAIN *{DF9.9A}*

2-1

13236-99J00

NOZZLE, MAIN *{DF8A}*

3-3

09491-68008

JET, MAIN (68) *{OPT,DF8A}*

3-1

09491-70020

JET, MAIN (70) *{DF8A}*

3-4

09491-80017

JET, MAIN (80) *{OPT,DF9.9A}*

3-2

09491-82013

JET, MAIN (82) *{DF9.9A}*

4-2

09492-35033

JET, PILOT (35) *{OPT}*

4-1

JET, PILOT (38)

CAP, RUBBER

FLOAT

VALVE, FLOAT

SCREW

CLIP

PIN, ARM

SCREW

SCREW, STOP

SPRING

GASKET, FLOAT CHAMBER

15-2

13240-99J10

CHAMBER ASSY, FLOAT *{DF8A ELECTRIC START DF8A TYPE:R INC.NO.14,16,17}*

15-4

13240-99J30

CHAMBER ASSY, FLOAT *{DF9.9A ELECTRIC START DF9.9A TYPE:R INC.NO.14,16,17,33~35}*

15-1

13240-99J00

CHAMBER ASSY, FLOAT *{DF8A MANUAL STARTER INC.NO.14,16,17}*

15-3

13240-99J20

CHAMBER ASSY, FLOAT *{DF9.9A MANUAL STARTER INC.NO.14,16,17,33~35}*

SCREW, DRAIN

WASHER, PLAIN

PACKING

PLATE

SCREW

HOLDER, CABLE *{MANUAL STARTER}*

13362-94J00

GUIDE, CABLE *{MANUAL STARTER}*

13363-94J00

CAP, CABLE SEALING *{MANUAL STARTER}*

13364-94J00

VALVE, STARTER *{MANUAL STARTER}*

13365-94J00

SPRING *{MANUAL STARTER}*

13295-14G00

O RING *{MANUAL STARTER}*

13428-06F30

PLATE *{ELECTRIC STARTER TYPE:R}*

13367-94J00

SCREW *{ELECTRIC STARTER TYPE:R}*

13368-99J00

STARTER ASSY *{ELECTRIC STARTER TYPE:R}*

13494-94J00

CLIP *{DF9.9A}*

13495-94J00

CAP, RUBBER *{DF9.9A}*

ROD, LINK *{DF9.9A}*

PLUNGER *{DF9.9A}*

SPRING *{DF9.9A}*

SCREW, SPECIAL *{DF9.9A}*

SCREW, PAN

BOLT (6X100)

GASKET, CARBURETOR

INSULATOR

CONNECTOR, THROTTLE ROD

13513-99J00

ROD, THROTTLE

13640-99J00

KNOB ASSY, STARTER *{MANUAL STARTER}*

09159-14014

NUT, STARTER KNOB *{MANUAL STARTER}*

09320-10501

CUSHION, STARTER KNOB *{MANUAL STARTER}*
