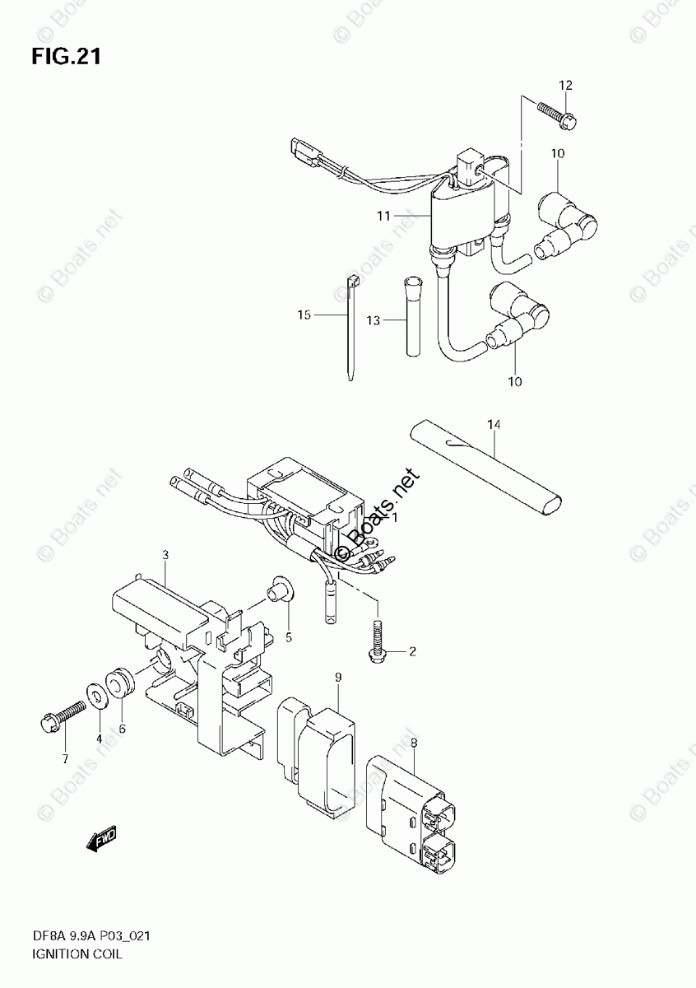

РЕЛЕ РЕГУЛЯТОРА/КАТУШКА ЗАЖИГАНИЯ

Suzuki Marine DF 9.9AL
Suzuki Marine
#oem кодцена
1
32800-99J00
RECTIFIER/REGULATOR ASSY *{ELECTRIC STARTER TYPE:R}*
2
01550-06257
BOLT *{ELECTRIC STARTER TYPE:R}*
3
32890-99J00
HOLDER, ELECTRIC PARTS
4
09160-06084
WASHER, ELECTRIC PARTS HOLDER (6.5X18X1.6)
5
09169-06062
WASHER, ELECTRIC PARTS HOLDER
6
09320-09016
CUSHION, ELECTRIC PARTS HOLDE
7
01550-06257
BOLT, ELECTRIC PARTS HOLDER
8-1
32900-99J00
CDI UNIT *{ELECTRIC STARTER TYPE:R}*
8-2
32900-99J10
CDI UNIT *{MANUAL STARTER}*
9
32980-99J00
CUSHION, CDI
10
33500-07H00
CAP, SPARK PLUG
11
33410-99J00
COIL, IGNITION
12
01550-06257
BOLT
13
33833-94JL0
TUBE, IGN COIL LEAD (L:120)
14
33833-94J10
PROTECTOR, HIGH TENSION (L:50 *{ELECTRIC STARTER TYPE:R}*
15
09407-14407
CLAMP, PROTECTOR *{ELECTRIC STARTER TYPE:R}*
