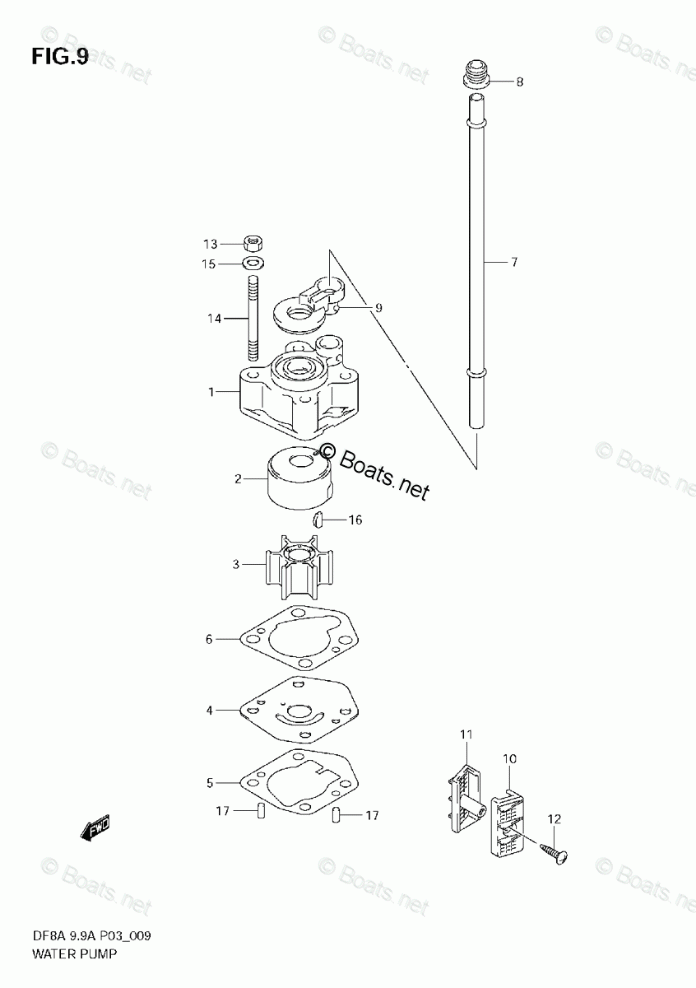

ВОДЯНОЙ НАСОС

Suzuki Marine DF 9.9AL
Suzuki Marine
#oem кодцена
1
17411-94J00
CASE, WATER PUMP
2
17413-94J00
SLEEVE, WATER PUMP CASE
3-1
17461-93903
IMPELLER, WATER PUMP
3-2
17461-939L0
IMPELLER, WATER PUMP *{DF8A:110001~ DF9.9A:110001~}*
4
17471-99J00
PANEL, PUMP CASE UNDER
5
17472-99J00
GASKET, PUMP CASE PANEL
6
17473-94J00
GASKET, WATER PUMP CASE
7-1
17561-99J00
TUBE, WATER (S)
7-2
17561-99J10
TUBE, WATER (L)
8
17563-94J00
GROMMET, WATER TUBE
9
17564-99J00
BUSH, WATER PUMP CASE
10
17631-99J10
FILTER, WATER PORT SIDE
11
17632-99J10
FILTER, WATER STBD SIDE
12
03141-0416A
SCREW, WATER FILTER
13
23118-94J00
NUT, WATER PUMP CASE (M6)
14
09108-06141
BOLT, STUD
15
09160-06082
WASHER, WATER PUMP CASE (6.5X13X1)
16
09420-03005
KEY
17
09202-04008
PIN, WATER PUMP KNOCK (4X9)
18
17400-99J00
KIT, WATER PUMP REPAIR *{OPT,NOT SHOWN INC.NO.3~6,16}*
