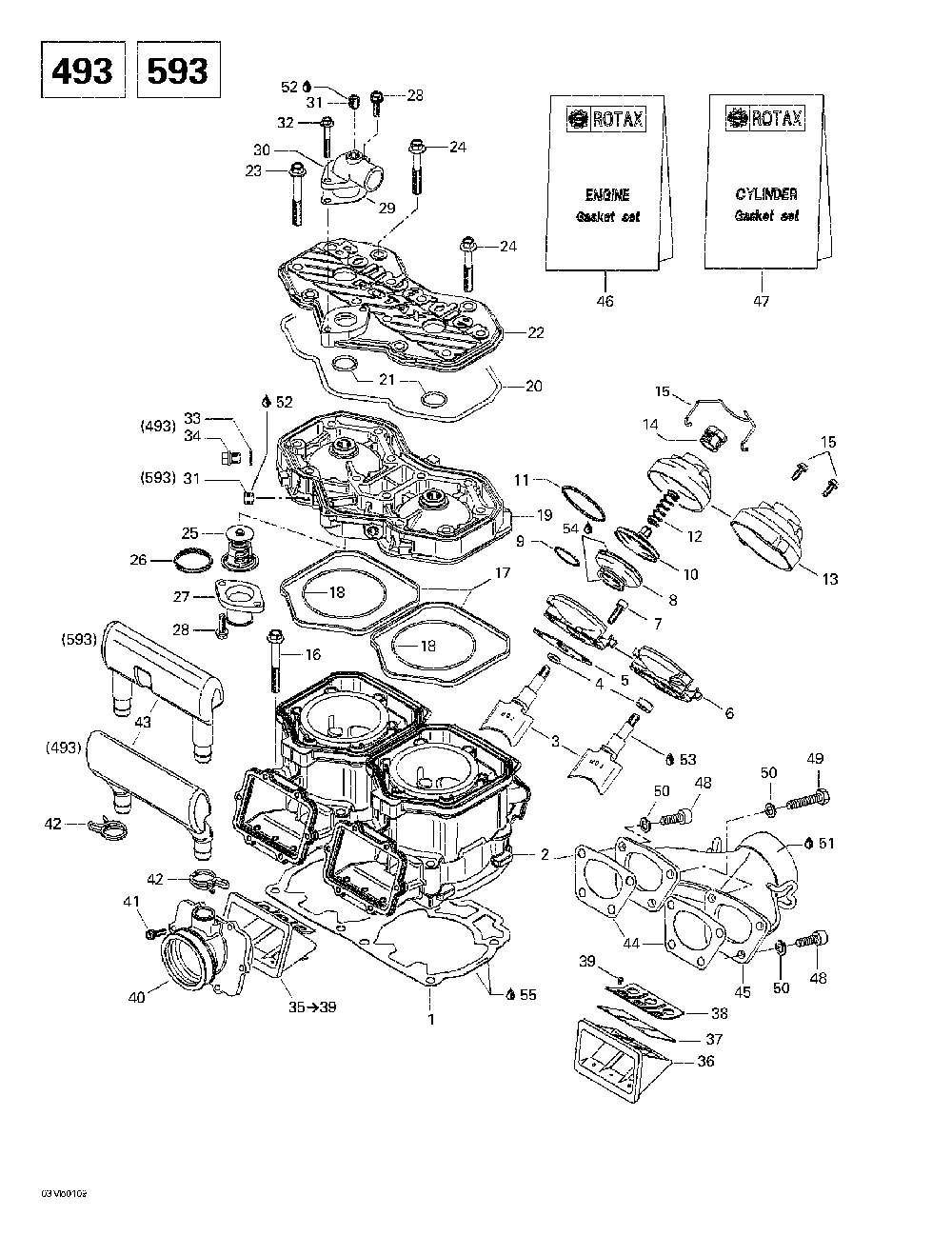

01- cylinder, exhaust manifold, reed valve (493, 593)

Ski-Doo (Bombardier) Formula Deluxe 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
420931589
Joint 0, 8 *gasket 0, 8 Formula Deluxe 500.
420931584
Joint 0, 8 *gasket 0, 8 Formula Deluxe 600.
420931960
Joint 0.7 *gasket 0.7 Formula Deluxe 500.
420931962
Joint 0.7 *gasket 0.7 Formula Deluxe 600.
420931587
Joint 0, 6 *gasket 0, 6 Formula Deluxe 500.
420931582
Joint 0, 6 *gasket 0, 6 Formula Deluxe 600.
420931588
Joint 0, 5 *gasket 0, 5 Formula Deluxe 500.
420931583
Joint 0, 5 *gasket 0, 5 Formula Deluxe 600.
2
420613605
Cylindre + Chem*cylinder-w.sle Formula Deluxe 500.
420613627
Cylindre + Chem*cylinder-w.sle Formula Deluxe 600.
3
420854490
Soupape Echap. *valve-exhaust Formula Deluxe 500.
420854370
Soupape Echap. *valve-exhaust Formula Deluxe 600.
4
420430110
Joint Torique *o Ring Formula Deluxe 500. Formula Deluxe 600.
420950730
Anneau Etanche *seal-oil Formula Deluxe 500. Formula Deluxe 600.
5
420250239
Joint *gasket Formula Deluxe 500. Formula Deluxe 600.
6
420854267
Boitier *housing-valve Formula Deluxe 500. Formula Deluxe 600.
420854266
Boitier *housing-valve Formula Deluxe 500. Formula Deluxe 600.
7
205062044
Screw-socket Hd.din.912 Formula Deluxe 500. Formula Deluxe 600.
8
420260723
Manchon *bellows Formula Deluxe 500. Formula Deluxe 600.
9
420838253
Bride Ressort *clamp-spring Formula Deluxe 500. Formula Deluxe 600.
10
420854449
Soupape Echapp.*valve-exhaust Formula Deluxe 500. Formula Deluxe 600.
11
420239048
Ressort Manchon*spring-hose Formula Deluxe 500. Formula Deluxe 600.
12
420239948
Ressort *spring Formula Deluxe 500.
420239944
Ressort *spring Formula Deluxe 600.
13
420911552
Couvercle Soup.*cover-valve Formula Deluxe 500. Formula Deluxe 600.
14
420241221
Vis Ajustement *screw-adjuster Formula Deluxe 500. Formula Deluxe 600.
15
420838083
Pince A Ressort*clip-spring Formula Deluxe 500. Formula Deluxe 600.
420841555
Screw-tapping M5 X 20 Formula Deluxe 500. Formula Deluxe 600.
16
420640951
Screw-hex. M8 X 68.5 Formula Deluxe 500. Formula Deluxe 600.
17
420931590
Bague Caout. *ring-rubber Formula Deluxe 500. Formula Deluxe 600.
18
420831792
Joint Torique *o Ring Formula Deluxe 500.
293300026
Joint Torique *o-ring Formula Deluxe 600.
19
420923880
Tete-cylindre *head-cylinder Formula Deluxe 500.
420923459
Tete-cylindre *head-cylinder Formula Deluxe 600.
20
420950320
Joint Torique *o Ring Formula Deluxe 500. Formula Deluxe 600.
21
420430782
Joint Torique *o Ring Formula Deluxe 500. Formula Deluxe 600.
22
420923465
Couvercle Cyl. *cover-cyl.head Formula Deluxe 500. Formula Deluxe 600.
23
420841306
Screw-hex Collar M8x65 Sw 11 Formula Deluxe 500. Formula Deluxe 600.
24
420941627
Collar-hex. Screw M8x56, 5 Formula Deluxe 500. Formula Deluxe 600.
25
420922519
Thermostat *thermostat Formula Deluxe 500. Formula Deluxe 600.
26
420931270
Bague Etanche *ring-sealing Formula Deluxe 500. Formula Deluxe 600.
27
420922025
Raccord Sortie *bent Outlet Socket Formula Deluxe 500. Formula Deluxe 600.
28
420941250
Screw-tapping Formula Deluxe 500. Formula Deluxe 600.
29
420850338
Joint *gasket Formula Deluxe 500. Formula Deluxe 600.
30
420922062
Raccord Sortie *bent Outlet Socket Formula Deluxe 500. Formula Deluxe 600.
31
420240480
Screw-plug 1/8-27 Npt Formula Deluxe 500. Formula Deluxe 600.
32
420941451
Screw-hex Collar M6 X 40 Formula Deluxe 500. Formula Deluxe 600.
35
420924519
Soupape Clapets*valve-reed Ass Includes 35 - 39. Formula Deluxe 500. Formula Deluxe 600.
37
420924532
Lame Pedale *reed-pedal Formula Deluxe 500. Formula Deluxe 600.
38
420924539
Arret Lame Ped.*stop-reed Ped. Formula Deluxe 500. Formula Deluxe 600.
39
420941215
Screw-oval Head M3x5 Formula Deluxe 500. Formula Deluxe 600.
40
420867862
Tubulure Carb. *socket Carburetor Formula Deluxe 500.
420867882
Tubulure Carb. *socket-carburator Formula Deluxe 600.
41
420941925
Screw-tapping M5 X 16 Formula Deluxe 500. Formula Deluxe 600.
42
420851440
Bride *clamp Formula Deluxe 500. Formula Deluxe 600.
43
420867815
Resonate.d Adm.*resona.intake Formula Deluxe 500.
420867817
Resonate.d Adm.*resona.intake Formula Deluxe 600.
44
420931615
Joint *gasket Formula Deluxe 500.
420931610
Joint *gasket Formula Deluxe 600.
45
420973650
Collect.echapp.*manifold-exh. Formula Deluxe 500.
420979543
Collect.echapp.*manifold-exh. Formula Deluxe 600.
46
420888722
Engine Gasket Set Formula Deluxe 500.
420888583
Ens.joint Etanc*kit-gasket Engine Formula Deluxe 600.
47
420888726
Ens.joint Etanc*set-gasket Cylinder Formula Deluxe 500.
420893075
Ens.joint Etanc*set-gasket Cylinder Formula Deluxe 600.
48
205082544
Screw-socket Hd.din.912 Formula Deluxe 500. Formula Deluxe 600.
49
207182044
Screw-hex.cap Din.933 Formula Deluxe 500. Formula Deluxe 600.
50
234181401
Washer-lock Din.127b Formula Deluxe 500. Formula Deluxe 600.
51
293800090
Смазка
52
293800060
Фиксатор резьбы loctite-243
53
420297433
Molykote G-n 50gr. 88162-74, 50 G
54
413707000
Смазка Corning 111
55
293800038
Локтайт-518
420431423
Joint *gasket 0.8mm Formula Deluxe 600.
420613628
Cylindre + Chem*cylinder-w.sle Formula Deluxe 600.
