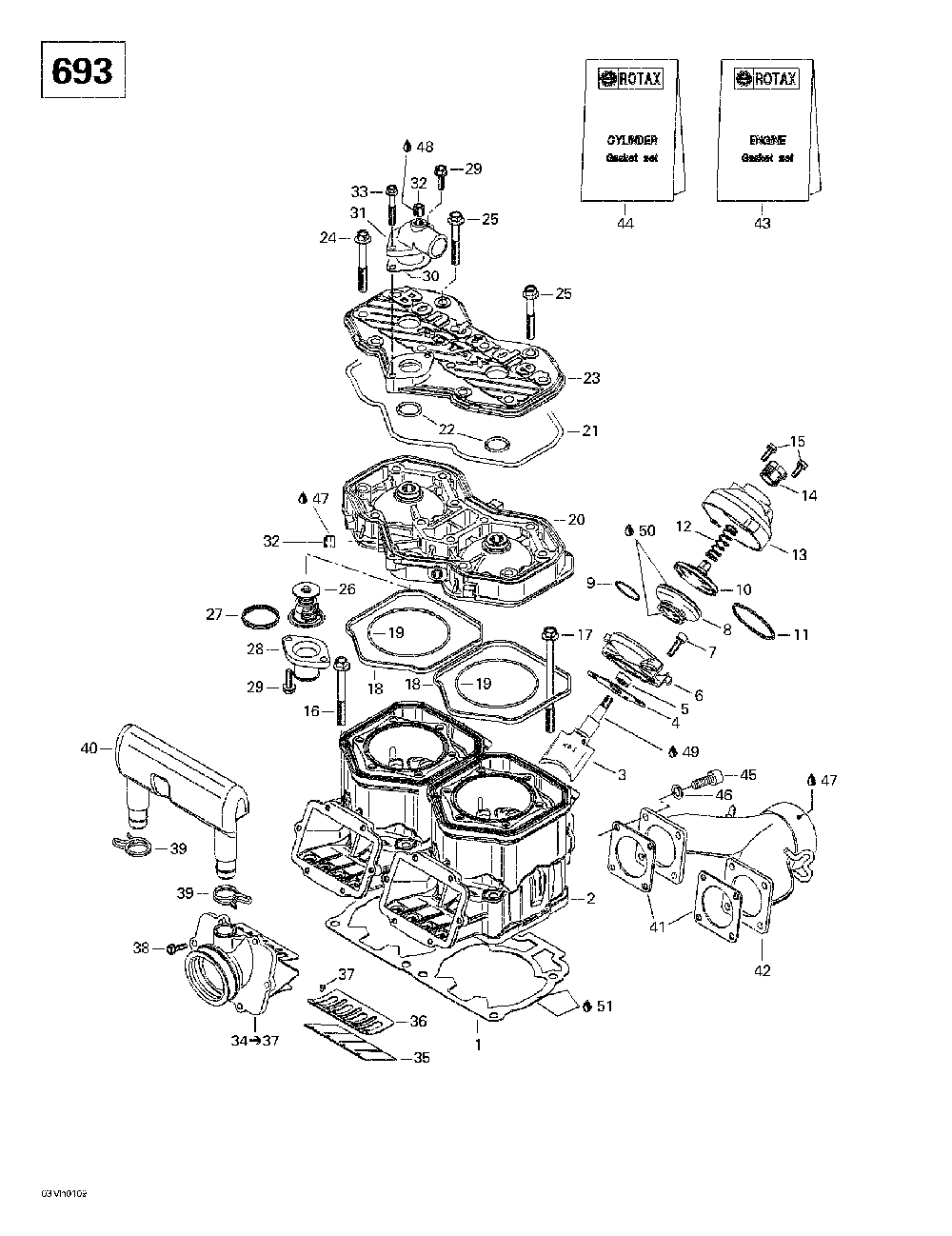

01- cylinder, exhaust manifold, reed valve (693)

Ski-Doo (Bombardier) Formula Deluxe 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
420931895
Joint 0.8 *gasket 0.8 Formula Deluxe 700.
420931894
Joint 0.7 *gasket 0.7 Formula Deluxe 700.
420931892
Joint 0.6 *gasket 0.6 Formula Deluxe 700.
420431160
Joint 0.5 *gasket 0.5 Formula Deluxe 700.
2
420923693
Cylindre Nicas.*cylinder-nicasil Formula Deluxe 700.
3
420854332
Soupape Echap. *valve-exhaust Formula Deluxe 700.
4
420250239
Joint *gasket Formula Deluxe 700.
5
420950730
Anneau Etanche *seal-oil Formula Deluxe 700.
6
420854266
Boitier *housing-valve Formula Deluxe 700.
7
205062044
Screw-socket Hd.din.912 Formula Deluxe 700.
8
420260723
Manchon *bellows Formula Deluxe 700.
9
420838253
Bride Ressort *clamp-spring Formula Deluxe 700.
10
420854449
Soupape Echapp.*valve-exhaust Formula Deluxe 700.
11
420239048
Ressort Manchon*spring-hose Formula Deluxe 700.
12
420239944
Ressort *spring Formula Deluxe 700.
13
420911552
Couvercle Soup.*cover-valve Formula Deluxe 700.
14
420241221
Vis Ajustement *screw-adjuster Formula Deluxe 700.
15
420841555
Screw-tapping M5 X 20 Formula Deluxe 700.
16
420640524
Screw-hex Collar Formula Deluxe 700.
17
420640534
Screw-hex Collar Formula Deluxe 700.
18
420931590
Bague Caout. *ring-rubber Formula Deluxe 700.
19
420931840
Joint Torique *o Ring Formula Deluxe 700.
20
420923457
Tete-cylindre *head-cylinder Formula Deluxe 700.
21
420950320
Joint Torique *o Ring Formula Deluxe 700.
22
420430782
Joint Torique *o Ring Formula Deluxe 700.
23
420923465
Couvercle Cyl. *cover-cyl.head Formula Deluxe 700.
24
420841306
Screw-hex Collar M8x65 Sw 11 Formula Deluxe 700.
25
420941627
Collar-hex. Screw M8x56, 5 Formula Deluxe 700.
26
420922519
Thermostat *thermostat Formula Deluxe 700.
27
420931270
Bague Etanche *ring-sealing Formula Deluxe 700.
28
420922025
Raccord Sortie *bent Outlet Socket Formula Deluxe 700.
29
420941250
Screw-tapping Formula Deluxe 700.
30
420850338
Joint *gasket Formula Deluxe 700.
31
420922062
Raccord Sortie *bent Outlet Socket Formula Deluxe 700.
32
420240480
Screw-plug 1/8-27 Npt Formula Deluxe 700.
33
420941451
Screw-hex Collar M6 X 40 Formula Deluxe 700.
34
420867873
Tubulure Carb. *socket-carburator Includes 34 - 37. Formula Deluxe 700.
35
420924680
Lame Pedale *reed-pedal Formula Deluxe 700.
36
420924695
Arret Lame Ped.*stop-reed Ped. Formula Deluxe 700.
37
420941215
Screw-oval Head M3x5 Formula Deluxe 700.
38
420941925
Screw-tapping M5 X 16 Formula Deluxe 700.
39
420851440
Bride *clamp Formula Deluxe 700.
40
420867817
Resonate.d Adm.*resona.intake Formula Deluxe 700.
41
420850552
Joint *gasket Formula Deluxe 700.
42
420973591
Collect.echapp.*manifold-exh. Formula Deluxe 700.
43
420888603
Ens.joint Etanc*kit-gasket Engine Formula Deluxe 700.
44
420888608
Ens.joint Etanc*kit-gasket Cylinder Formula Deluxe 700.
46
234161471
Washer-lock Black Din.127b Formula Deluxe 700.
47
293800090
Enduit Etanche *sealant Formula Deluxe 700.
48
293800060
Loctite 243 *loctite-243 Formula Deluxe 700.
49
420297433
Molykote G-n 50gr. 88162-74, 50 G Formula Deluxe 700.
50
413707000
Dow Corning 111*dow Corning 111 Formula Deluxe 700.
51
293800038
Loctite 518 *loctite-518 Formula Deluxe 700.
2
420923694
Cylindre Nicas.*cylinder-nicasil Formula Deluxe 700.
