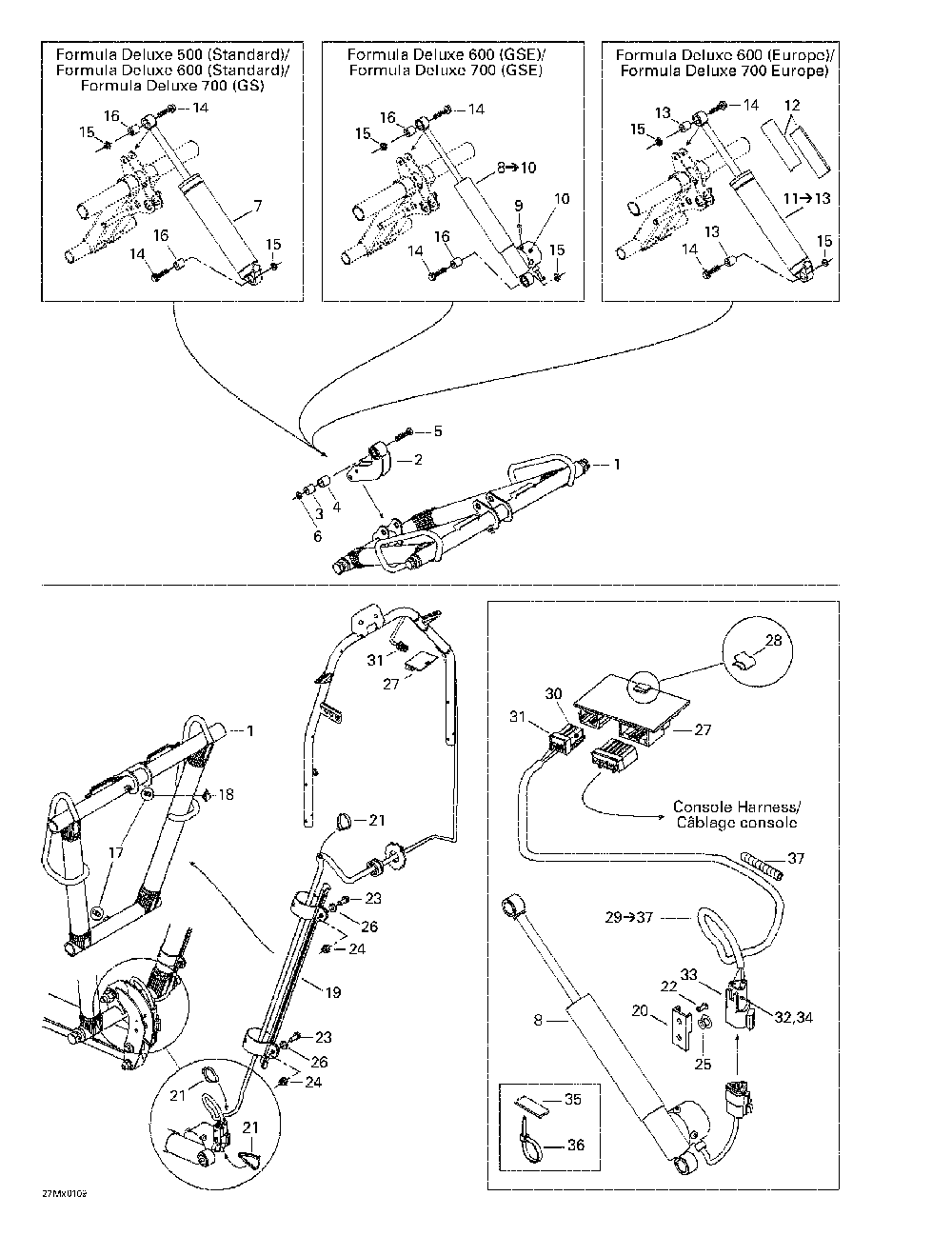

Задний амортизатор

Ski-Doo (Bombardier) Formula Deluxe 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
503191083
Рычаг передний
2
503189303
Рокер
3
503189388
Ось коромысла
4
503189626
Втулка уплотнительная
5
207005044
Винт
6
233601416
Гайка с тефлоном
7
503190661
Амортизатор задний
8
503189453
Amortisseur *rear Shock Includes 8 - 10. Formula Deluxe 600. Formula Deluxe 700.
9
503189692
Boulon *bolt Formula Deluxe 600. Formula Deluxe 700.
10
503189693
Actuateur *actuator Formula Deluxe 600. Formula Deluxe 700.
11
860306300
Ens.amor.hpg Ar*kit-shock Hpg Rear Includes 11 - 13. Formula Deluxe 600. Formula Deluxe 700.
12
516000182
Decalque H.p.g *decal-h.p.g. Formula Deluxe 600. Formula Deluxe 700.
13
414936000
Coussinet *cushion Formula Deluxe 600. Formula Deluxe 700.
14
207684044
Винт
15
233281414
Гайка
17
408200700
Масленка
18
293550033
Синтетическая смазка 10x14oz
19
503189573
Supp.passe-fils*support-grommet Formula Deluxe 600. Formula Deluxe 700.
20
503189685
Attache *bracket Formula Deluxe 600. Formula Deluxe 700.
21
414115200
Tie-rap 180 Mm Formula Deluxe 600. Formula Deluxe 700.
22
390401600
Rivet-pop 1/8 *rivet-pop Formula Deluxe 600. Formula Deluxe 700.
23
207151644
Screw-hex.cap Din.933 Formula Deluxe 600. Formula Deluxe 700.
24
233251414
Nut-flange Elastic Din.6926 Formula Deluxe 600. Formula Deluxe 700.
25
390402000
Rivet-pop 3/16 *rivet-pop 3/16 Formula Deluxe 600. Formula Deluxe 700.
26
234051410
Washer-flat Din.125a Formula Deluxe 600. Formula Deluxe 700.
27
515175547
Unite Cont.elec*unit-control Elect. Formula Deluxe 600. Formula Deluxe 700.
29
515175553
Cablage Susp. *harness-susp. Includes 29 - 37. Formula Deluxe 600. Formula Deluxe 700.
30
515175231
Cosse Femelle *terminal-female Formula Deluxe 600. Formula Deluxe 700.
31
515175495
Logement Femel.*housing-female (3 Circuits) (gse) Formula Deluxe 600. Formula Deluxe 700.
32
278000631
Cosse Male *terminal-male Formula Deluxe 600. Formula Deluxe 700.
33
409207000
Logement Male *housing-male (3 Circuits) (gse) Formula Deluxe 600. Formula Deluxe 700.
34
409207600
Verrou Male *lock-male Formula Deluxe 600. Formula Deluxe 700.
36
293750001
Tie Rap 94mm *tie-rap 94mm Formula Deluxe 600. Formula Deluxe 700.
37
276000048
Boyau 6mm. *hose-6mm. Formula Deluxe 600. Formula Deluxe 700.
