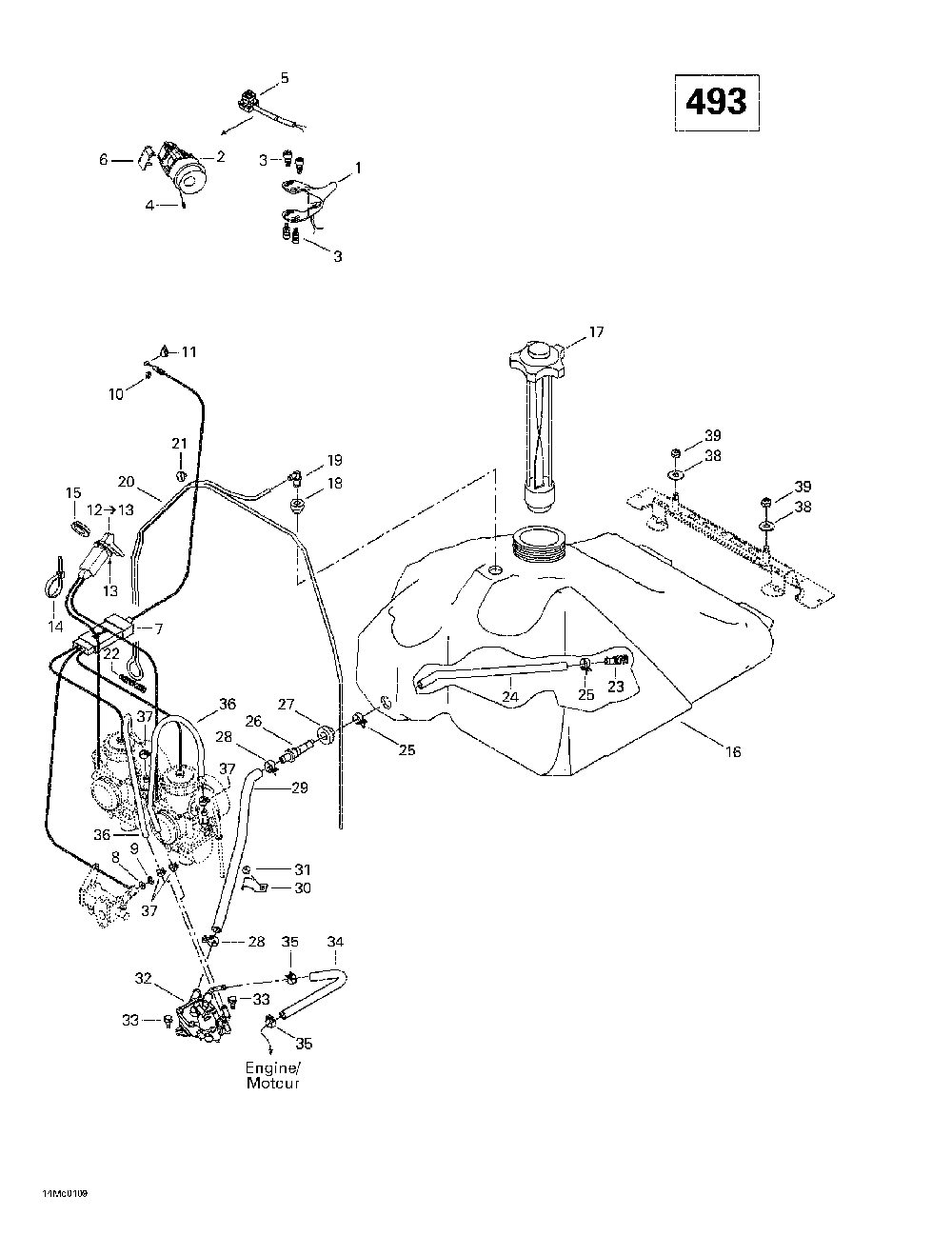

Топливная система (493)

Ski-Doo (Bombardier) Formula Deluxe 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
512059348
Manette Ass. *handle-assy Formula Deluxe 500.
2
512059243
Logement Acc. *housing-throttle Rew. Formula Deluxe 500.
3
732601143
Screw-shoulder Formula Deluxe 500.
4
414440800
Screw-set Din 916-a2 Formula Deluxe 500.
5
515176725
Interrupteur *kill Switch Formula Deluxe 500.
6
572100901
Couv.interrupt.*cover-switch Formula Deluxe 500.
7
512059111
Cable Accelerat*throttle Cable Formula Deluxe 500.
8
414753300
Rondelle *washer Formula Deluxe 500.
9
414753500
Circlip-type Bs N Formula Deluxe 500.
10
414274500
Circlip-black Chromate Formula Deluxe 500.
11
293550004
Graisse Dielect*grease-dielect Dc4 Formula Deluxe 500.
12
512059203
Cable Etrang. *cable-choke Includes 12 - 13. Formula Deluxe 500.
13
394103300
Washer-lock Int.teeth Formula Deluxe 500.
14
515175220
Tie Rap *tie-rap Formula Deluxe 500.
15
512059094
Ecrou Plastique*nut-plastic Formula Deluxe 500.
16
513032987
Reservoir Essen*tank-fuel Formula Deluxe 500.
17
513033020
Bouchon Res.ess*cap-fuel Tank Formula Deluxe 500.
18
513032908
Passe-fils *grommet Formula Deluxe 500.
19
414814100
Raccord Male *connector-male Formula Deluxe 500.
20
415080100
Boyau Amorce *line-primer Formula Deluxe 500.
21
513032923
Bride De Tube *clamp-tube Formula Deluxe 500.
22
414818200
Ressort *spring Formula Deluxe 500.
23
414872100
Crepine *filter-fuel Formula Deluxe 500.
24
415005700
Boyau Polyure *hose-polyurethane Formula Deluxe 500.
25
513033010
Bride Serrage *clamp Formula Deluxe 500.
26
414872700
Raccord Male *connector-male Formula Deluxe 500.
27
570273900
Passe-fils *grommet Formula Deluxe 500.
28
513032979
Bride A Ressort*clamp-spring Formula Deluxe 500.
29
513032903
Boyau Forme *hose-formed Formula Deluxe 500.
30
415018200
Pince *clip Formula Deluxe 500.
31
390406500
Rivet-pop 3/16 *rivet-pop 3/16 Formula Deluxe 500.
32
403901807
Pompe A Essence*pump-fuel Formula Deluxe 500.
33
210361280
Screw-forming Hex.hd.fl.din.7500 Formula Deluxe 500.
34
415079800
Boyau 1/4 I.d. *hose-1/4 I.d. Formula Deluxe 500.
35
414415200
Bride A Ressort*clamp-spring Formula Deluxe 500.
36
415117800
Boyau Forme *tube-formed Formula Deluxe 500.
37
414420700
Bride A Ressort*clamp-spring Formula Deluxe 500.
38
234082410
Washer-flat Din.9021b Formula Deluxe 500.
39
232581414
Nut-stop Elastic Din.985 Formula Deluxe 500.
