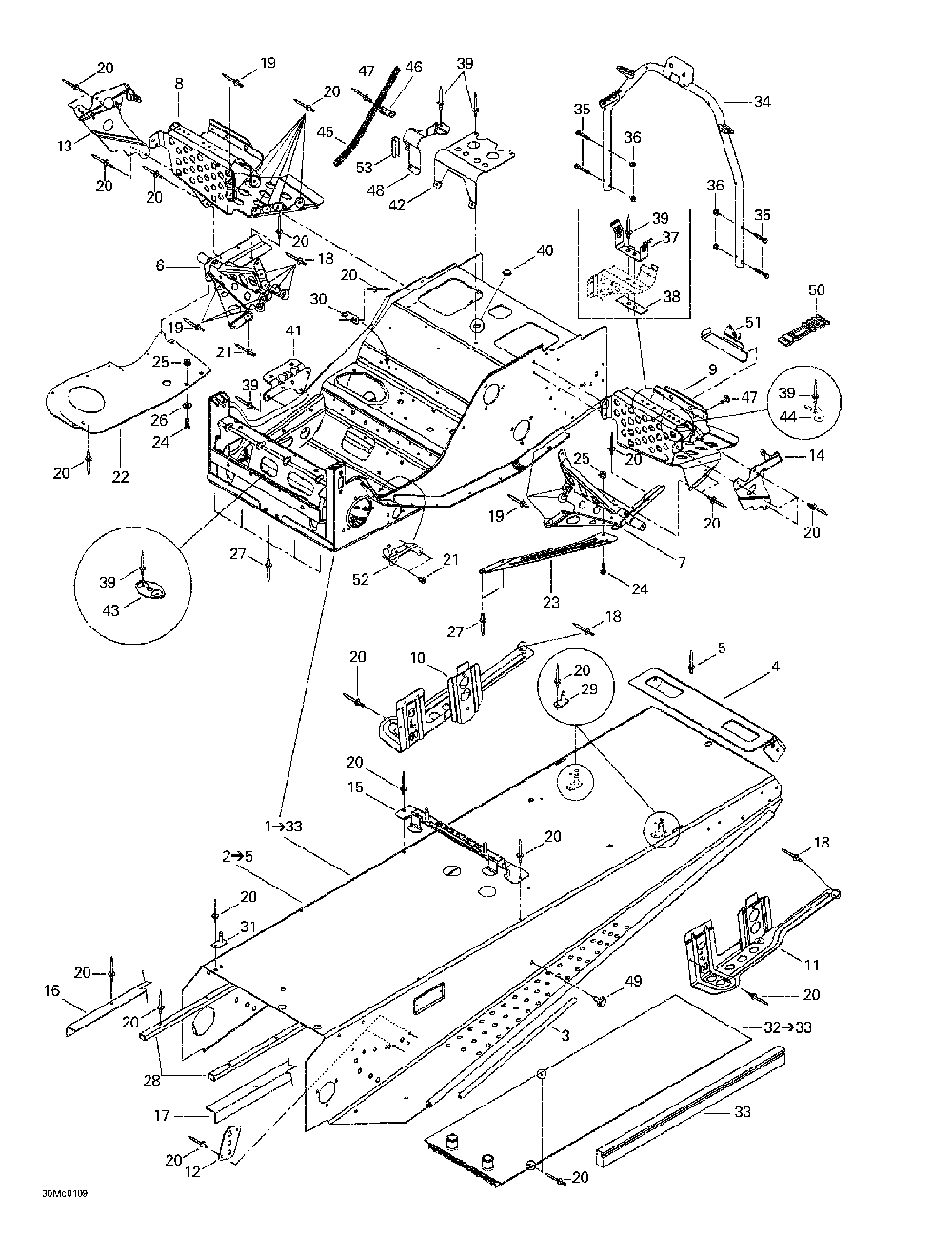

Рама

Ski-Doo (Bombardier) Formula Deluxe 500/600/700

Рама

#

oem код

название

цена

1

Chassis *frame Includes 1 - 33.

Chassis *frame Includes 1 - 33.

2

Tunnel Forme *frame-forming Includes 2 - 5.

Tunnel Forme *frame-forming Includes 2 - 5.

3

Renf.marche-pie*reinf.-foot.

Renf.marche-pie*reinf.-foot.

4

Capuchon Arr. *cap-rear

Capuchon Arr. *cap-rear

5

Заклепка 3/16

Заклепка 3/16

6

Support Droit *rh.support

Support Droit *rh.support

7

Support Gauche *lh.support

Support Gauche *lh.support

8

Repose-pied Dr.*rh.footrest

Repose-pied Dr.*rh.footrest

9

Repose-pied Ga.*lh.footrest

Repose-pied Ga.*lh.footrest

10

Attache Susp.dr*brkt-slide Rh

Attache Susp.dr*brkt-slide Rh

11

Attache Susp.ga*bracket-slide Lh

Attache Susp.ga*bracket-slide Lh

12

Plaque Renfort *plate-reinf.

Plaque Renfort *plate-reinf.

13

Renf.rep.-pi.dr*reinf.-footrest Rh

Renf.rep.-pi.dr*reinf.-footrest Rh

14

Renf.rep.-pi.ga*reinf.-footrest Lh

Renf.rep.-pi.ga*reinf.-footrest Lh

15

Att.reserv.p. *brkt-tank Paint

Att.reserv.p. *brkt-tank Paint

16

Renf.tunnel Dr.*reinf-frame Rh

Renf.tunnel Dr.*reinf-frame Rh

17

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Ga.*reinf-frame Lh

18

Заклепка

Заклепка

19

Заклепка

Заклепка

21

Заклепка 3/16

Заклепка 3/16

22

Plaque Coque Dr*plate-pan Bott.rh

Plaque Coque Dr*plate-pan Bott.rh

23

Plaque Renf.ga.*plate-reinf.lh

Plaque Renf.ga.*plate-reinf.lh

24

Винт

Винт

25

Гайка

Гайка

26

Шайба

Шайба

28

Protect. Tunnel*protect.-frame

Protect. Tunnel*protect.-frame

29

Attache Siege S*seat Bracke Weld

Attache Siege S*seat Bracke Weld

30

Attache Doub.so*bracket Double Weld

Attache Doub.so*bracket Double Weld

31

Guide Soude *guide-weld.

Guide Soude *guide-weld.

32

Radiateur Arr.s*rad.-rear Weld. Includes 32 - 33.

Radiateur Arr.s*rad.-rear Weld. Includes 32 - 33.

33

Защита

Защита

34

Supp.guidon Sou*supp-handle Weld.

Supp.guidon Sou*supp-handle Weld.

35

Винт

Винт

36

Гайка

Гайка

37

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

38

Renfort *reinforcement

Renfort *reinforcement

40

Крышка

Крышка

41

Support Silenc.*support-muffler

Support Silenc.*support-muffler

42

Supp.silenc.adm*supp-air Intake

Supp.silenc.adm*supp-air Intake

43

Plaque Att.soud*plate-brkt Weld

Plaque Att.soud*plate-brkt Weld

44

Attache Trousse*bracket-tool Kit

Attache Trousse*bracket-tool Kit

45

Направляющая троса

Направляющая троса

46

Хомут открывающийся

Хомут открывающийся

47

Заклепка 3/16

Заклепка 3/16

48

Support Boyaux *support-hose

Support Boyaux *support-hose

49

Attache Panneau*panel-fastener

Attache Panneau*panel-fastener

50

Loquet *latch

Loquet *latch

51

Support Trousse*support-tool Kit

Support Trousse*support-tool Kit

52

Support Cablage*support-cable

Support Cablage*support-cable

53

Moul.protect. *trim-protect.

Moul.protect. *trim-protect.

48

Support Boyaux *support-hose

Support Boyaux *support-hose
