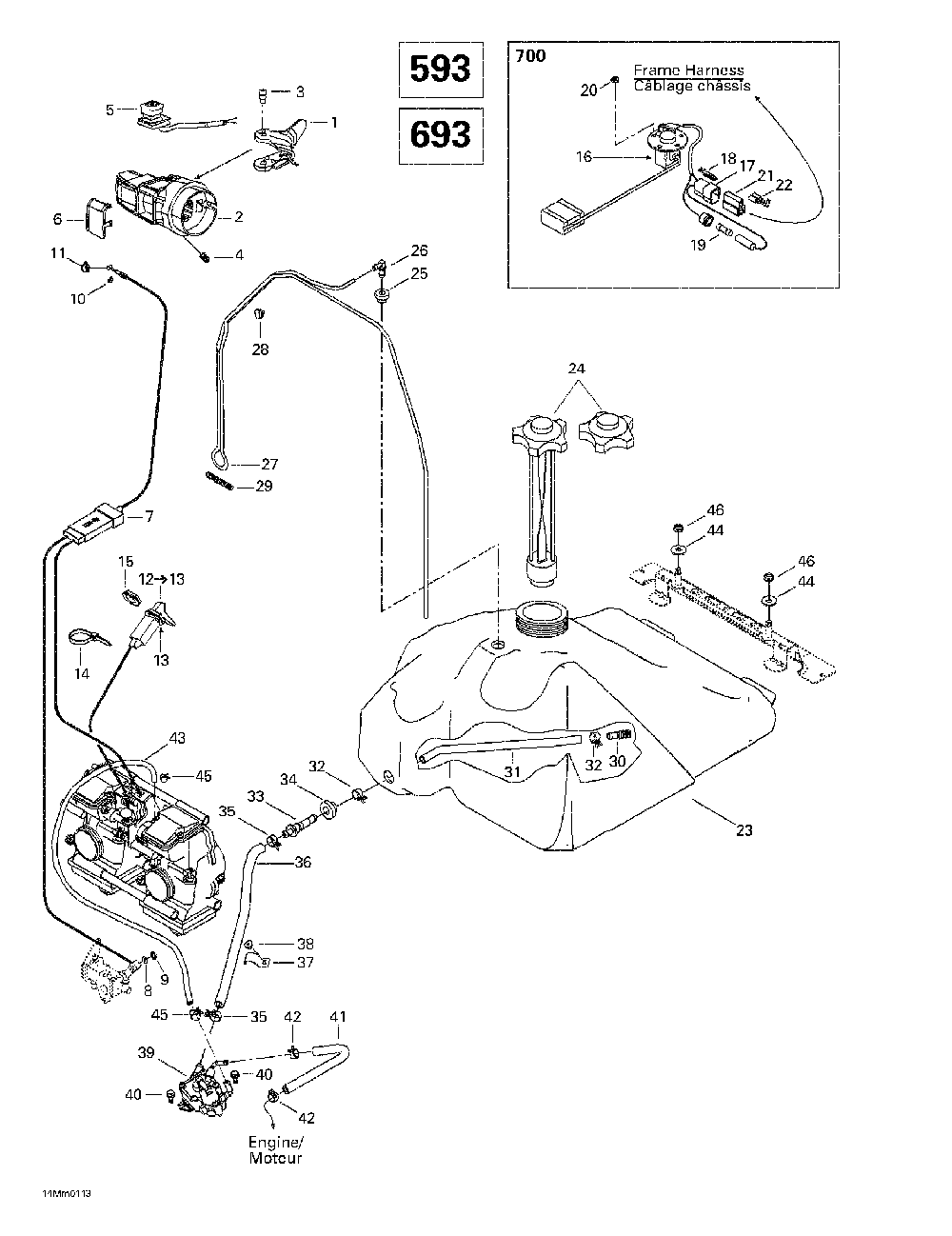

Топливная система

Ski-Doo (Bombardier) Grand Touring 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
512059481
Manette Ass. *handle-assy Grand Touring 600. Grand Touring 700.
2
512059763
Logem. Accel. *housing Throttle Grand Touring 600. Grand Touring 700.
3
732601143
Screw-shoulder Grand Touring 600. Grand Touring 700.
4
414440800
Screw-set Din 916-a2 Grand Touring 600. Grand Touring 700.
5
515176725
Interrupteur *kill Switch Grand Touring 600. Grand Touring 700.
6
572100901
Couv.interrupt.*cover-switch Grand Touring 600. Grand Touring 700.
7
512059388
Cable Accelerat*cable-throttle Grand Touring 600. Grand Touring 700.
8
414753300
Rondelle *washer Grand Touring 600. Grand Touring 700.
9
414753500
Circlip-type Bs N Grand Touring 600. Grand Touring 700.
10
414274500
Circlip-black Chromate Grand Touring 600. Grand Touring 700.
11
293550004
Graisse Dielect*grease-dielect Dc4 Grand Touring 600. Grand Touring 700.
12
512059110
Cable Etrang. *cable-choke Includes 12 - 13. Grand Touring 600. Grand Touring 700.
13
394103300
Washer-lock Int.teeth Grand Touring 600. Grand Touring 700.
14
515175220
Tie Rap *tie-rap Grand Touring 600. Grand Touring 700.
15
512059094
Ecrou Plastique*nut-plastic Grand Touring 600. Grand Touring 700.
16
515175170
Capt.niv.ess. *sensor-fuel Includes 16 - 19. Grand Touring 700.
17
409204500
Logement Male *housing-male Grand Touring 700.
18
409210000
Cosse Male *terminal-male Grand Touring 700.
19
410112400
Fusible 0.25amp*fuse-0.25amp. Grand Touring 700.
20
232551414
Nut-stop Elastic Din.985 Grand Touring 700.
21
409204600
Logement Femel.*housing-female Grand Touring 700.
22
561503100
Cosse Femelle *terminal-femal. Grand Touring 700.
23
513032987
Reservoir Essen*tank-fuel Grand Touring 600.
513032988
Reservoir Essen*tank-fuel Grand Touring 700.
24
513033020
Bouchon Res.ess*cap-fuel Tank Grand Touring 600.
572039600
Bouchon *cap Grand Touring 700.
25
513032908
Passe-fils *grommet Grand Touring 600. Grand Touring 700.
26
414814100
Raccord Male *connector-male Grand Touring 600. Grand Touring 700.
27
415080100
Boyau Amorce *line-primer Grand Touring 600. Grand Touring 700.
28
513032923
Bride De Tube *clamp-tube Grand Touring 600. Grand Touring 700.
29
414818200
Ressort *spring Grand Touring 600. Grand Touring 700.
30
414872100
Crepine *filter-fuel Grand Touring 600. Grand Touring 700.
31
415005700
Boyau Polyure *hose-polyurethane Grand Touring 600. Grand Touring 700.
32
513033010
Bride Serrage *clamp Grand Touring 600. Grand Touring 700.
33
414872700
Raccord Male *connector-male Grand Touring 600. Grand Touring 700.
34
570273900
Passe-fils *grommet Grand Touring 600. Grand Touring 700.
35
513032979
Bride A Ressort*clamp-spring Grand Touring 600. Grand Touring 700.
36
513032903
Boyau Forme *hose-formed Grand Touring 600. Grand Touring 700.
37
415018200
Pince *clip Grand Touring 600. Grand Touring 700.
38
390406500
Rivet-pop 3/16 *rivet-pop 3/16 Grand Touring 600. Grand Touring 700.
39
403901808
Pompe A Essence*pump-fuel Grand Touring 600. Grand Touring 700.
40
210361280
Screw-forming Hex.hd.fl.din.7500 Grand Touring 600. Grand Touring 700.
41
415079800
Boyau 1/4 I.d. *hose-1/4 I.d. Grand Touring 600. Grand Touring 700.
42
414415200
Bride A Ressort*clamp-spring Grand Touring 600. Grand Touring 700.
43
513032986
Boyau Forme *tube-formed Grand Touring 600. Grand Touring 700.
44
234082410
Washer-flat Din.9021b Grand Touring 600. Grand Touring 700.
45
414420700
Bride A Ressort*clamp-spring Grand Touring 600. Grand Touring 700.
46
232581414
Nut-stop Elastic Din.985 Grand Touring 600. Grand Touring 700.
