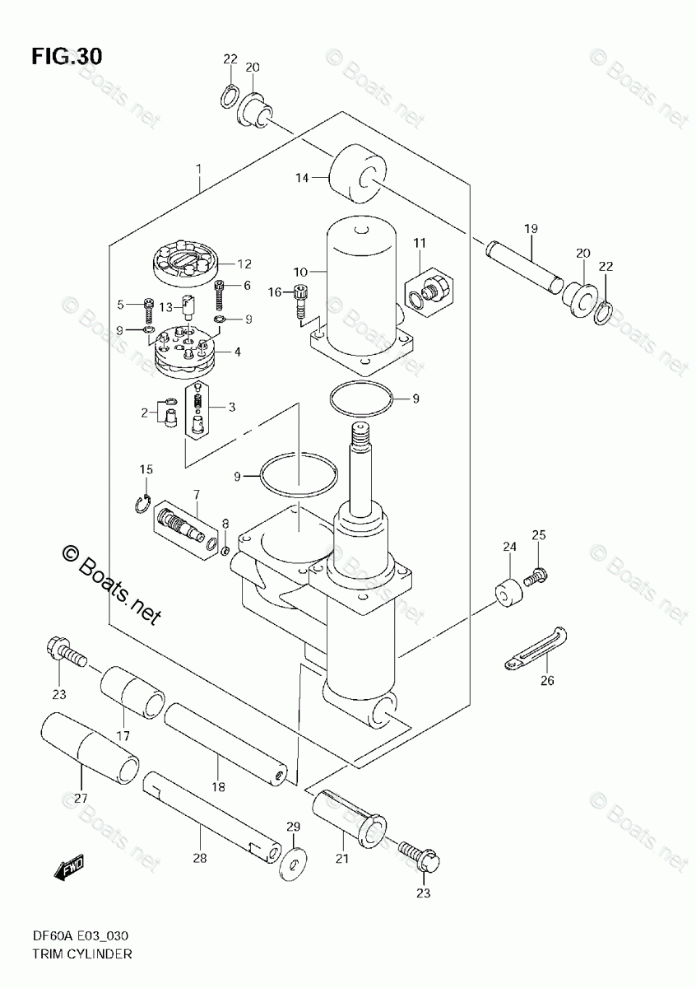

ЦИЛИНДР НАКЛОНА

Suzuki Marine DF 50ATL
Suzuki Marine
#oem кодцена
1-1
48000-88L10
TRIM ASSY, POWER WITH TILT *{DF40A/50A}*
1-2
48000-88L00
TRIM ASSY, POWER WITH TILT *{DF60A}*
2
48320-87J10
VALVE, UP PRESSURE
3
48330-87J10
VALVE, DOWN PRESSURE
4
48510-97E00
PUMP ASSY, GEAR
5
48541-87J10
BOLT
6
48541-87J20
BOLT
7
48551-88L00
VALVE, MANUAL
8
48553-97E00
SEAL WASHER
9
48557-87J10
O RING SET
10
48571-88L00
TANK, RESERVOIR
11
48572-87J10
PLUG
12
48582-97E01
FILTER
13
48583-87J10
JOINT, DRIVE
14
48611-88L00
JOINT, METAL
15
48681-87J10
СТОПОРНОЕ КОЛЬЦО
16
48862-87J10
BOLT, TANK
17
47225-88L00
COLLAR, TILT CYLINDER LOWER *{DF60A}*
18
48121-88L00
SHAFT, TILT CYL LOWER *{DF60A}*
19
48321-89J11
SHAFT, TILT CYL UPPER
20
48325-89J00
BUSH, TILT CYL UPPER
21
48326-87J00
BUSH, TILT CYL LOWER
22
09380-12002
E RING, TILT CYL UPPER
23
09116-10131
BOLT, SHAFT TILT CYL LOWER (10X35)
24-1
55321-87J00
ANODE, PROTECTION
24-2
55321-87J10
ANODE (MAGNESIUM) *{OPT}*
25
09103-06281
BOLT, PROTECTION ANODE (6X14)
26
29404-93J10
CLAMP
27
47225-87J00
COLLAR, TILT CYLINDER LOWER *{DF40A/50A}*
28
48121-89J10
SHAFT, TILT CYL LOWER *{DF40A/50A}*
29
09160-10139
WASHER, SHAFT TILT CYL LOWER *{DF40A/50A}*
