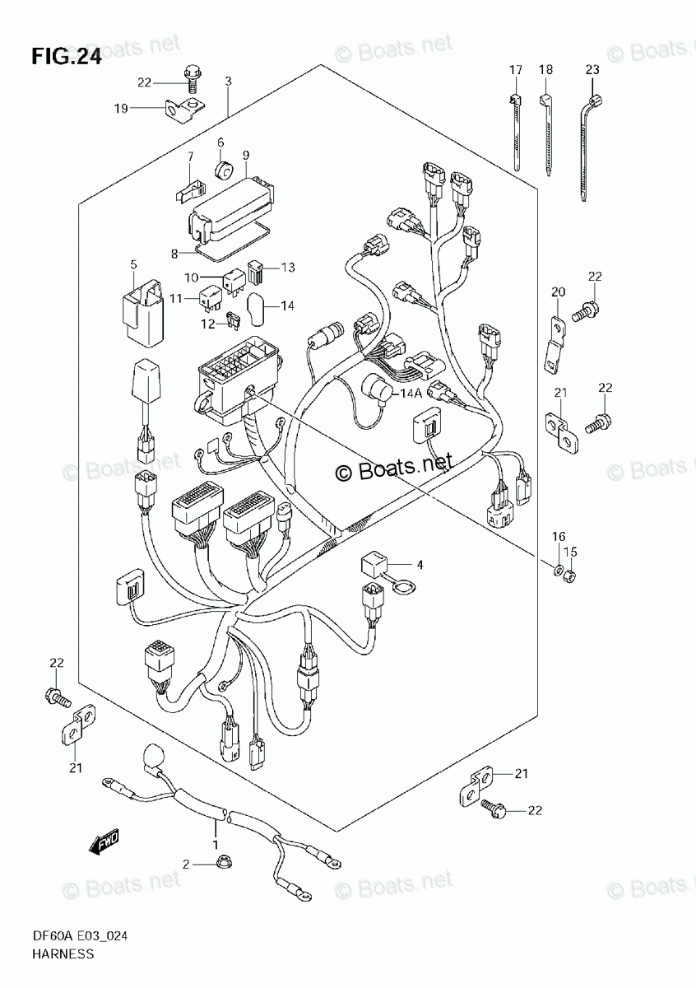

ПРОВОДКА

Suzuki Marine DF 60ATL
Suzuki Marine
#oem кодцена
1-1
33810-88L00
CABLE ASSY, STARTER MOTOR *{DF60A}*
1-2
33810-88L10
CABLE ASSY, STARTER MOTOR *{DF60A:110001~ DF40A/50A}*
2
08316-10087
NUT
3-2
36610-88L20
HARNESS ASSY, WIRING *{DF40A/50A}*
3-1
36610-88L00
HARNESS ASSY, WIRING *{DF60A}*
4
33634-96J00
CAP, SERVICE CONNECTOR
5
36668-87L00
CAP, SERVICE CONNECTOR
6
09320-08021
CUSHION, FUSE BOX
7
36737-96J00
PULLER, FUSE
8
36721-96J00
O RING, UPPER COVER
9
36738-88L00
COVER, FUSE CASE UPPER
10
38860-76F01
RELAY, ENG CONTROL UNIT
11
38860-76F01
RELAY ASSY, STARTER MOTOR
12-2
09481-30501
FUSE (30A)
12-1
09481-15501
FUSE (15A)
13
09481-30401
FUSE (30A)
14
36612-96J00
CAP, TERMINAL
14A
36618-43410
CAP, OIL PRESSURE SWITCH
15
08310-00067
NUT, RELAY/FUSE BOX
16
08321-01067
WASHER, RELAY/FUSE BOX
17
09407-14403
CLAMP, HARNESS (L:125)
18
09407-14407
CLAMP, HARNESS (L:145)
19
36617-88L00
BRACKET, HARNESS
20
36617-88L10
BRACKET, HARNESS
21
36617-93J10
BRACKET, HARNESS
22
01550-06127
BOLT, HARNESS BRACKET
23
09407-18402
CLAMP, HARNESS (L:165) *{DF40A/50A}*
