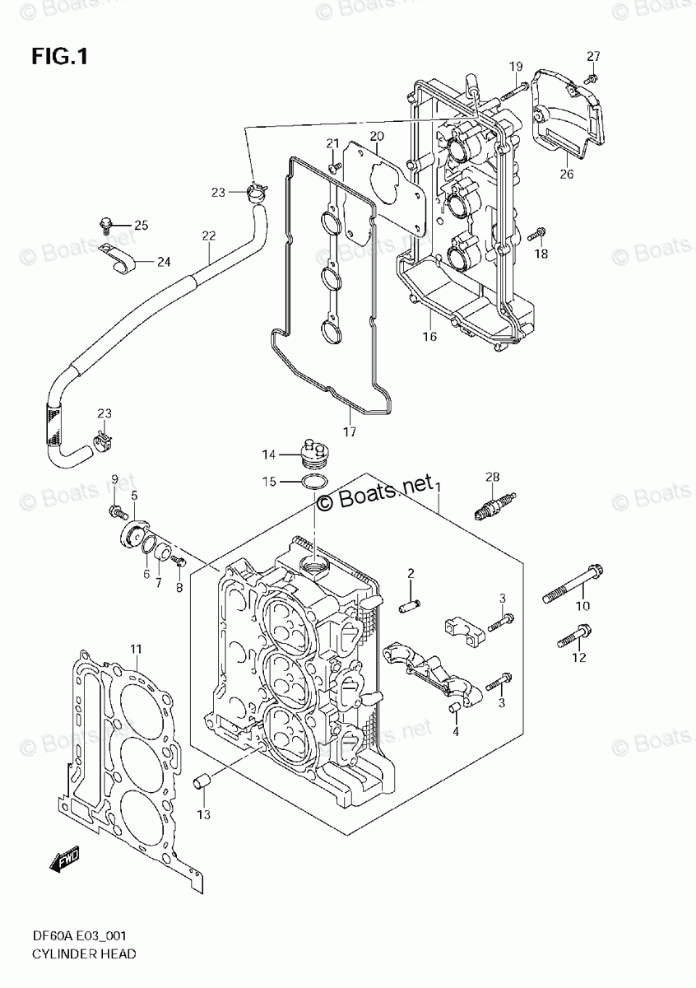

ГОЛОВКА ЦИЛИНДРА

Suzuki Marine DF 60ATL
Suzuki Marine
#oem кодцена
1
11100-88L00
HEAD ASSY, CYLINDER
2
11115-73G01-001
GUIDE, VALVE
3
09103-06266
BOLT, CAMSHAFT HSG (6X40)
4
09206-08001
PIN
5
11261-93J00
COVER, PROTECTION ANODE
6
09280-22019
O RING (D:1.9,ID:21.8)
7-2
55321-87J10
ANODE (MAGNESIUM) *{OPT}*
7-1
55321-87J00
ANODE, PROTECTION
8
09103-06281
BOLT, PROTECTION ANODE (6X14)
9
01550-08207
BOLT
10
11119-87J00
BOLT, CYLINDER HEAD (10X95)
11
11141-88L00
GASKET, CYLINDER HEAD
12
01550-08457
BOLT, CYLINDER HEAD NO.2
13
04211-13189
PIN
14
11382-99E00
CAP, OIL FILLER
15
09280-26006
O RING, OIL FILLER CAP (D:3.1,ID:26.4)
16
11170-88L00
COVER, CYLINDER HEAD
17
11189-88L00
GASKET, CYLINDER HEAD COVER
18
01547-06257
BOLT
19
01547-06457
BOLT
20
11173-88L00
PLATE, BREATHER
21
02142-0612A
SCREW, BREATHER PLATE
22
11174-88L00
HOSE, BREATHER
23
09401-15414
CLIP, BREATHER HOSE
24
09403-17303
CLAMP, BREATHER HOSE
25
01550-06127
BOLT, BREATHER HOSE CLAMP
26-1
11194-88L00
GUARD, FUEL HOSE *{->11194-88L10 USED W/15192-88L11}*
26-2
11194-88L10
GUARD, FUEL HOSE *{DF60A:011616~}*
27
01550-06167
BOLT, HOSE GUARD
28
09482-00446
SPARK PLUG (DCPR6E)
