Suzuki Marine DF 60ATL

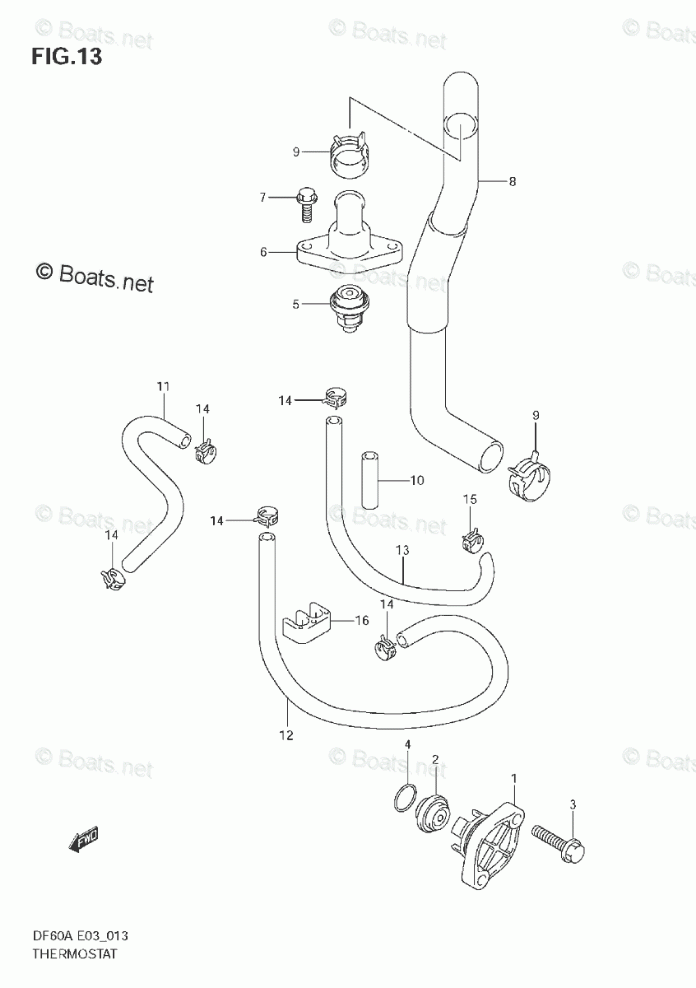

ТЕРМОСТАТ

#

oem код

название

цена

1

17611-90J00-0EP

COVER, WATER PRESS VALVE

COVER, WATER PRESS VALVE

2

VALVE, WATER PRESSURE

VALVE, WATER PRESSURE

3

BOLT, WATER PRESS VALVE COV W/WASHER (6X25)

BOLT, WATER PRESS VALVE COV W/WASHER (6X25)

4

O RING, WATER PRESS VALVE COV (D:3.1,ID:26.4)

O RING, WATER PRESS VALVE COV (D:3.1,ID:26.4)

5

THERMOSTAT (60 C)

THERMOSTAT (60 C)

6

COVER, THERMOSTAT

COVER, THERMOSTAT

7

BOLT, THERMOSTAT COVER

BOLT, THERMOSTAT COVER

8

HOSE, WATER RETURN

HOSE, WATER RETURN

9

CLIP, WATER RETURN HOSE

CLIP, WATER RETURN HOSE

10

PROTECTOR, WATER HOSE *{L:320->50}*

PROTECTOR, WATER HOSE *{L:320->50}*

11

HOSE (SEPARATOR TO INSP)

HOSE (SEPARATOR TO INSP)

12

09352-50903-600

HOSE (SEPARATOR TO E/H) *{L:600->500}*

HOSE (SEPARATOR TO E/H) *{L:600->500}*

13

09359-50901-980

HOSE (E/H TO SEPARATOR) *{L:980->250}*

HOSE (E/H TO SEPARATOR) *{L:980->250}*

14

CLIP, NO.1

CLIP, NO.1

15

CLIP, NO.2

CLIP, NO.2

16

CLAMP

CLAMP
