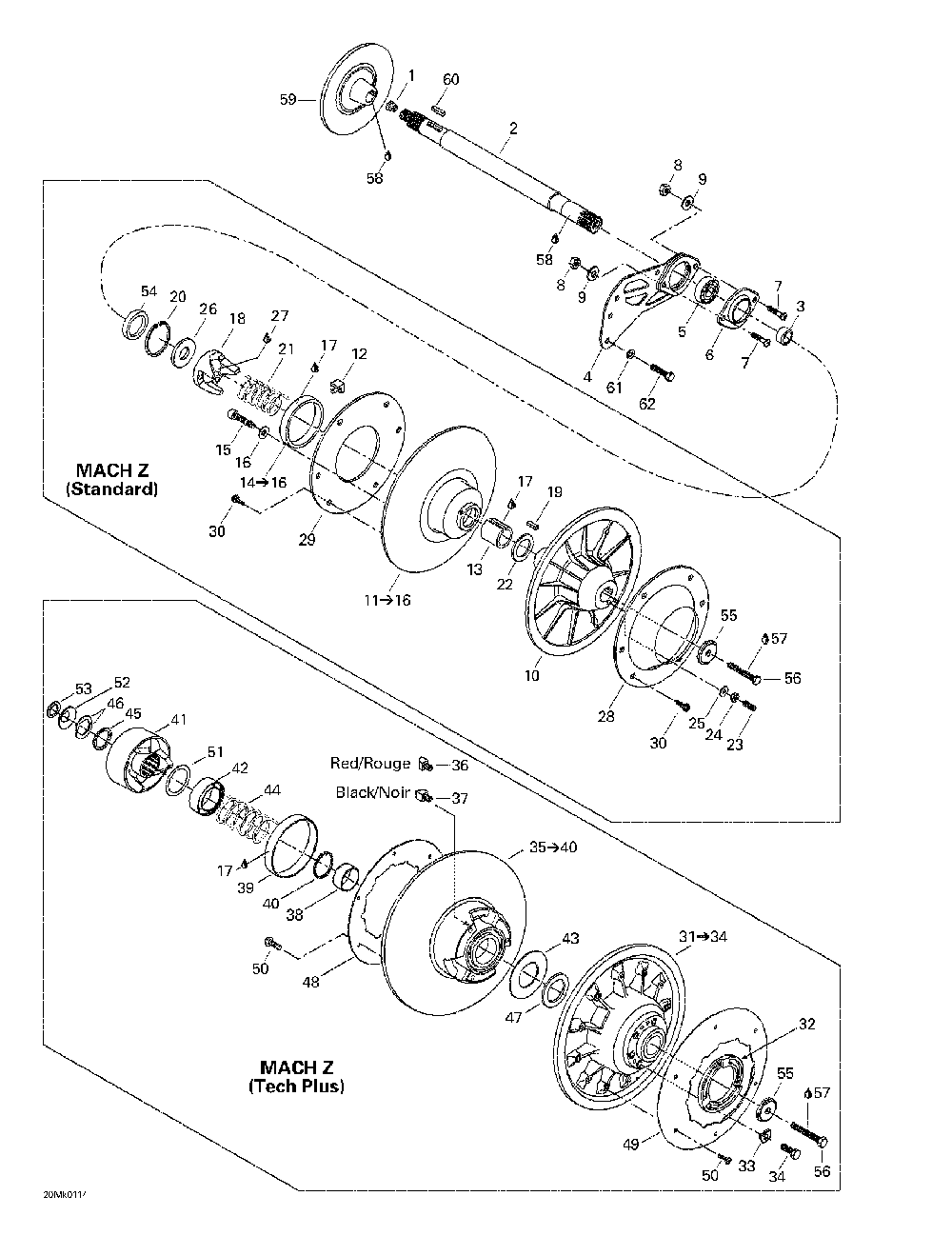

Трансмиссия

Ski-Doo (Bombardier) Mach Z
Ski-Doo (Bombardier)
#oem кодцена
1
414784800
Bouchon Liege *cork
2
501026300
Вал
3
504149100
Втулка
4
080039300
Втулка
5
504152535
Подшипник
6
501026900
Фланец
7
205483046
Screw-socket Bn.hd.iso.7380
8
232581414
Гайка с тефлоном
9
234081410
Шайба
10
417126477
Flasque Fixe Us*flange-fix.mach Mach Z (standard).
11
417126486
Flasque Coul.as*flange-slid.as Includes 11 - 16. Mach Z (standard).
12
414918000
Glissiere Came *shoe-cam Slid. Mach Z (standard).
13
415011200
Douille *bushing Mach Z (standard).
14
860423000
Ens.cousi.garl.*kit-bus.garlock Includes 14 - 16. Mach Z (standard).
15
205451286
Screw-socket Bn.hd.gm6174 Mach Z (standard).
16
399910000
Washer-flat Mach Z (standard).
17
413703100
Смазка Loctite 609
18
417126387
Came Usine *cam-mach. Mach Z (standard).
19
414820800
Clavette *key Mach Z (standard).
20
371903100
Circlip *circlip Mach Z (standard).
21
414558900
Ressort Rappel *spring-release Mach Z (standard).
22
504141900
Rondelle Appuie*washer-thrust Mach Z (standard).
23
206263044
Screw-set Socket Din.913 Mach Z (standard).
24
232061414
Nut-hexagonal Din.934 Mach Z (standard).
25
420245370
Rondelle *washer Mach Z (standard).
26
504141800
Rondelle *washer Mach Z (standard).
28
504142000
Coupole *cup Mach Z (standard).
29
504142100
Cerceau *ring Mach Z (standard).
30
210251180
Screw-forming Hex.hd.fl.gm6174m Mach Z (standard).
31
417126414
Flasque Fixe As*flange-fix.ass. Includes 31 - 34. Mach Z (tech Plus).
32
415005800
Bague Ajustem. *ring-adjust. Mach Z (tech Plus).
33
415005900
Cale De Reglage*shim-adjust. Mach Z (tech Plus).
34
207162544
Screw-hex.cap Din.933 Mach Z (tech Plus).
207162244
Screw-hex.cap Din.933 Mach Z (tech Plus).
35
417126318
Flasque Coul.as*flange-slid.as Includes 35 - 40. Mach Z (tech Plus).
36
417126373
Gliss.came Arr.*shoe-cam Slide Rear Mach Z (tech Plus).
37
417126374
Gliss. Came Av.*shoe-cam Slide Front Mach Z (tech Plus).
39
417126902
Coussinet *coussinet Mach Z (tech Plus).
40
371911200
Anneau Retenue *circlip Mach Z (tech Plus).
41
417126385
Came Ass. *cam-ass. Mach Z (tech Plus).
42
417126381
Protecteur *guard Mach Z (tech Plus).
43
504099600
Rondelle Butee *washer-stopper Mach Z (tech Plus).
44
414978300
Ressort Rappel *spring-release Mach Z (tech Plus).
45
417126375
Entretoise *spacer Mach Z (tech Plus).
46
371911000
Demi-cle *key-half Mach Z (tech Plus).
47
504112300
Cale Epaisseur *shim Mach Z (tech Plus).
48
417126698
Couvercle *cover Mach Z (tech Plus).
49
504151831
Couv.aerodynam.*cover-aerodyn. Mach Z (tech Plus).
50
732600032
Screw-forming Torx Plus Gm6174m Mach Z (tech Plus).
51
417126322
Butee Pivotante*swivel-abutment Mach Z (tech Plus).
52
417300055
Protecteur *protector Mach Z (tech Plus).
53
417300054
Entretoise *spacer Mach Z (tech Plus).
54
417126302
Spacer Mach Z (standard).
55
517302322
Шайба
56
207087544
Винт
57
293800060
Фиксатор резьбы loctite-243
59
507032456
Диск торм
60
507021300
Шпонка
61
234161471
Шайба
62
207161844
Винт
53
417300265
Entretoise *spacer Mach Z (tech Plus).
