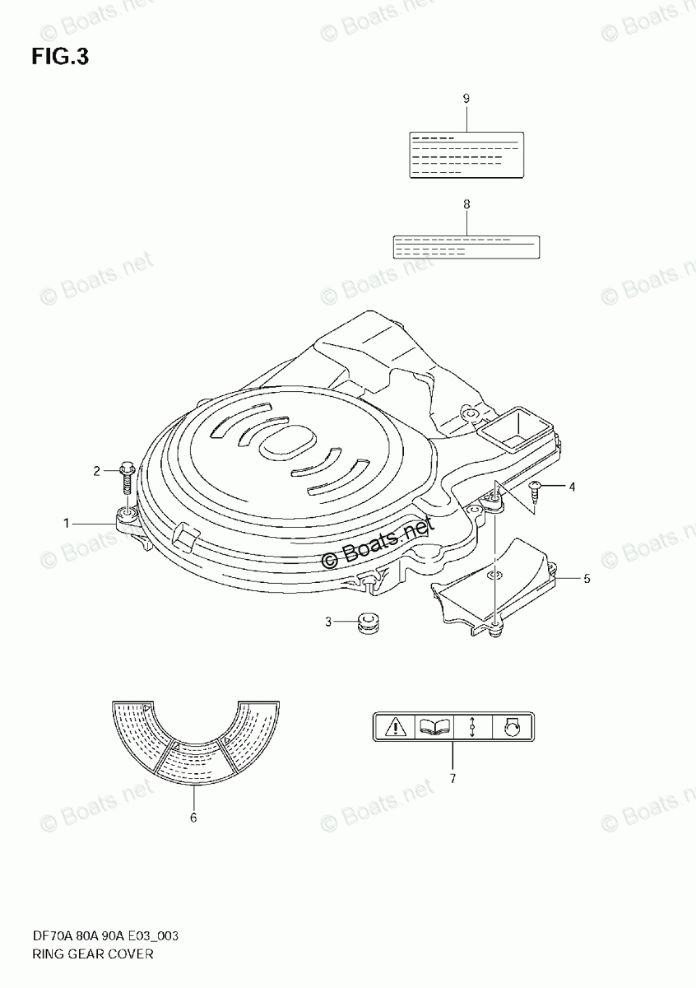

RING GEAR COVER

Suzuki Marine DF 90ATX

RING GEAR COVER

#

oem код

название

цена

1-1

COVER, RING GEAR

COVER, RING GEAR

1-2

COVER, RING GEAR *{DF70A:010439~ DF80A:010049~ DF90A:010440~}*

COVER, RING GEAR *{DF70A:010439~ DF80A:010049~ DF90A:010440~}*

1-3

COVER, RING GEAR *{DF70A:011341~ DF80A:010352~ DF90A:012395~}*

COVER, RING GEAR *{DF70A:011341~ DF80A:010352~ DF90A:012395~}*

2-1

BOLT

BOLT

2-2

BOLT *{DF70A:011341~ DF80A:010352~ DF90A:012395~}*

BOLT *{DF70A:011341~ DF80A:010352~ DF90A:012395~}*

3

CUSHION, RING GEAR COVER

CUSHION, RING GEAR COVER

4

SCREW

SCREW

5

PLATE, RING GEAR COVER

PLATE, RING GEAR COVER

6

LABEL, MAG COVER

LABEL, MAG COVER

7

LABEL (S.I.G.P.)

LABEL (S.I.G.P.)

8

LABEL, CLEARANCE

LABEL, CLEARANCE

9

LABEL, OIL

LABEL, OIL
