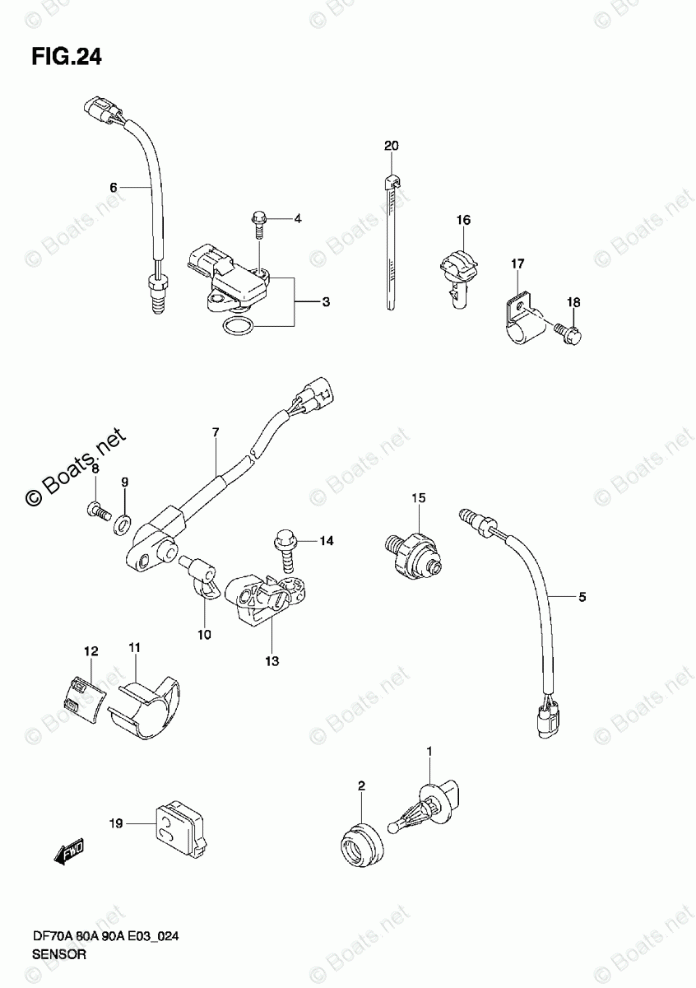

SENSOR

Suzuki Marine DF 90ATX
Suzuki Marine
#oem кодцена
1
13650-52G00
SENSOR, INLET AIR TEMP
2
13655-87J00
GROMMET, AIR TEMP SENSOR
3
18590-68H00
SENSOR, PRESSURE
4
02162-05207
SCREW, PRESSURE SENSOR
5
34830-87J20
SENSOR ASSY, EXHAUST TEMP *{DF70A:~010753 DF80A:~010135 DF90A:~011035}*
6
34830-87J20
SENSOR ASSY, CYLINDER TEMP
7
34840-87L01
SENSOR ASSY, TRIM
8
09125-05048
SCREW, TRIM SENSOR (5X16)
9
09160-05029
WASHER, TRIM SENSOR (5.5X12X0.8)
10
34841-87L00
LEVER, TRIM SENSOR
11
34842-87L01
CAM, TRIM SENSOR UPPER
12
34843-87L00
CAM, TRIM SENSOR LOWER
13
34845-87L01
BRACKET, TRIM SENSOR
14
29103-93J10
BOLT, TRIM SENSOR BRACKET
15
37820-99E01
SWITCH, OIL PRESSURE
16
09403-07338
CLAMP, PTT CABLE
17-1
09403-13408
CLAMP, PTT CABLE
17-2
09403-19409
CLAMP, PTT CABLE *{DF70A:010838~ DF80A:010138~ DF90A:011314~}*
18
09103-06152
BOLT, PTT CABLE CLAMP
19
36656-87L00
GROMMET, PTT CABLE
20
09407-14407
BAND, CABLE
