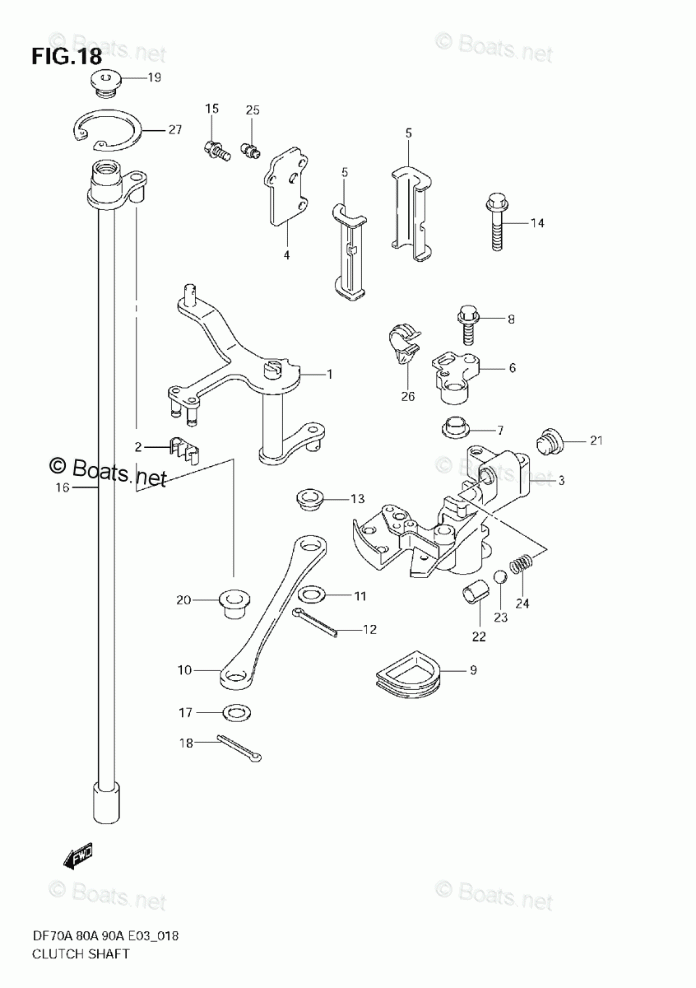

ВАЛ СЦЕПЛЕНИЯ

Suzuki Marine DF 90ATX
Suzuki Marine
#oem кодцена
1
21110-87L00
LEVER, CLUTCH
2
21131-93J00
BUSH, CLUTCH LEVER
3
21151-87L00
HOLDER, CLUTCH LEVER
4
21152-87L00
PLATE, CLUTCH HOLDER
5
21153-87L00
BUSH, CLUTCH LEVER
6
21155-87L00
HOLDER, SHIFT SENSOR
7
09306-10022
BUSH, SHIFT SENSOR HOLDER
8
01550-06207
BOLT, SHIFT SENSOR HOLDER
9
21157-87L00
SEAL, CLUTCH HOLDER
10
23115-87L00
LINK, CLUTCH LEVER
11
09160-09019
WASHER, LINK (9.2X16X1)
12
09204-01006
PIN, CLUTCH LEVER LINK
13
09307-09002
BUSH, CLUTCH LEVER LINK
14
01550-06407
BOLT, HOLDER CLUTCH LINK
15
09116-05010
BOLT, HOLDER PLATE (L:12)
16
21210-87L00
SHAFT, CLUTCH
17
09160-09019
WASHER, CL SHAFT (9.2X16X1)
18
09204-01006
PIN, CLUTCH SHAFT
19
09248-12005
PLUG, CLUTCH SHAFT
20
09307-09002
BUSH, CLUTCH SHAFT
21
11118-95J00
PLUG, NOTCH SPRING
22
09205-10008
PIN, CLUTCH NOTCH SPRING
23
09260-10005
BALL, CLUTCH NOTCH
24
09440-07071
SPRING, CLUTCH NOTCH
25
22511-99011
NIPPLE, GREASE
26
09403-11320
CLAMP, FUEL HOSE
27
08331-41359
CIRCLIP, CLUTCH SHAFT BEARING
