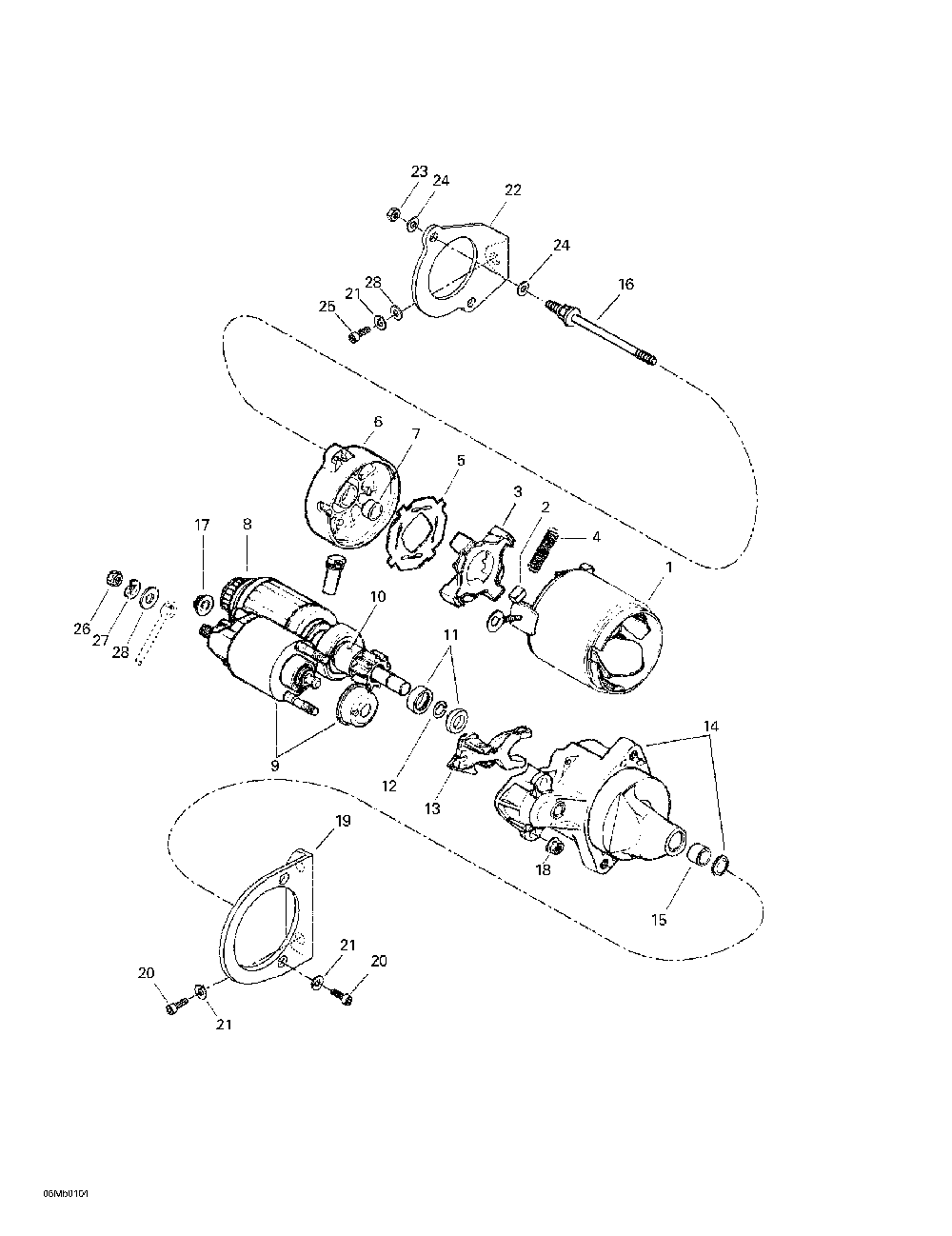

Стартер электрический

Ski-Doo (Bombardier) MX Z 380 F
Ski-Doo (Bombardier)
#oem кодцена
1
410212400
Demarreur *starter Includes 1 - 18. Formula Deluxe 380 F.
1
410209500
Boitier Demar. *housing-starter Formula Deluxe 380 F.
2
410209600
Brosse*starter Brush Formula Deluxe 380 F.
3
410209700
Porte Balai *holder-brush Formula Deluxe 380 F.
4
410209800
Ressort Balai *spring-brush Formula Deluxe 380 F.
5
410209900
Isolant *insulator Formula Deluxe 380 F.
7
410210100
Douille Brass *bushing-brass Formula Deluxe 380 F.
8
410210200
Armature Ass. *armature-assy. Formula Deluxe 380 F.
9
410210300
Inter.ass. *switch-assy. Formula Deluxe 380 F.
10
410210400
Embrayage Demar*clutch-starter Formula Deluxe 380 F.
11
410212500
Ecrou *nut Formula Deluxe 380 F.
12
410212600
Circlip *circlip Formula Deluxe 380 F.
13
410210700
Levier *lever Formula Deluxe 380 F.
14
410210800
Boitier *housing Formula Deluxe 380 F.
15
410210900
Douille Brass *bushing-brass Formula Deluxe 380 F.
16
410212000
Boulon *bolt Formula Deluxe 380 F.
17
410211100
Ecrou *nut Formula Deluxe 380 F.
18
410211200
Ecrou *nut Formula Deluxe 380 F.
19
420951692
Attache Demar. *bracket-start. Formula Deluxe 380 F.
20
205082544
Screw-socket Hd.din.912 Formula Deluxe 380 F.
21
234181401
Washer-lock Din.127b Formula Deluxe 380 F.
22
420951702
Supp.demar.mag.*supp.-star.mag Formula Deluxe 380 F.
23
232551414
Nut-stop Elastic Din.985 Formula Deluxe 380 F.
24
391301700
Rondelle *washer Formula Deluxe 380 F.
25
205082044
Screw-socket Hd.din.912 Formula Deluxe 380 F.
26
232081414
Nut-hexagonal Din.934 Formula Deluxe 380 F.
27
420945752
Washer-lock Din.128 Formula Deluxe 380 F.
28
234081410
Washer-flat Din.125a Formula Deluxe 380 F.
