ГОЛОВКА ЦИЛИНДРА Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 150TL (2011)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2011
DF 150TL

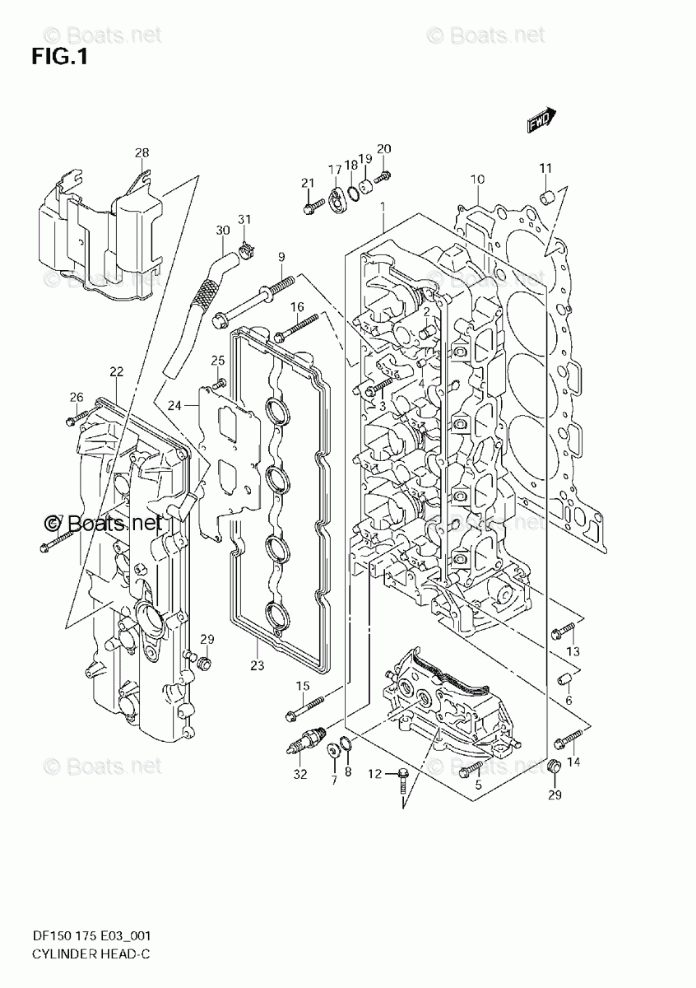

ГОЛОВКА ЦИЛИНДРА
ГОЛОВКА ЦИЛИНДРА

ГОЛОВКА ЦИЛИНДРА

Suzuki Marine DF 150TL

oem код

название

цена

11101-96J01

HEAD ASSY, CYLINDER

11115-93J00-001

GUIDE, VALVE

3-1

11128-90J00

BOLT, CAM SHAFT HOUSING

3-2

09103-06266

BOLT, CAMSHAFT HOUSING *{DF150T:110122~ DF175T:110093~ DF150Z:110010~ DF175Z:110012~}*

BOLT, LOWER

PLUG, OIL VENTURI

PLUG

GASKET

BOLT, CYL HEAD

GASKET, CYL HEAD

BOLT, CAM SHAFT HOUSING

BOLT, CYL HEAD NO.4

BOLT, CYL HEAD NO.3

BOLT, CYL HEAD NO.5

BOLT, CYL HEAD NO.2

COVER, PROTECTION ANODE

09280-22019

O RING, COVER

55321-87J00

ANODE, PROTECTION

09103-06281

BOLT, PROTECTION ANODE

01550-08207

BOLT, COVER

22-1

11170-96J00

COVER, CYL HEAD *{DF150}*

22-2

11170-96J10

COVER, CYL HEAD *{DF175}*

11189-96J00

GASKET, CYL HEAD COVER

11173-96J00

PLATE, BREATHER

02112-0612A

SCREW, BREATHER PLATE

01547-06257

BOLT, CYL HEAD COVER NO.1

01547-06507

BOLT, CYL HEAD COVER NO.2

11191-96J00

GUIDE, AIR INTAKE NO.2

GROMMET, GUIDE AIR

HOSE, BREATHER

CLIP, BREATHER HOSE

SPARK PLUG (BKR6E)
