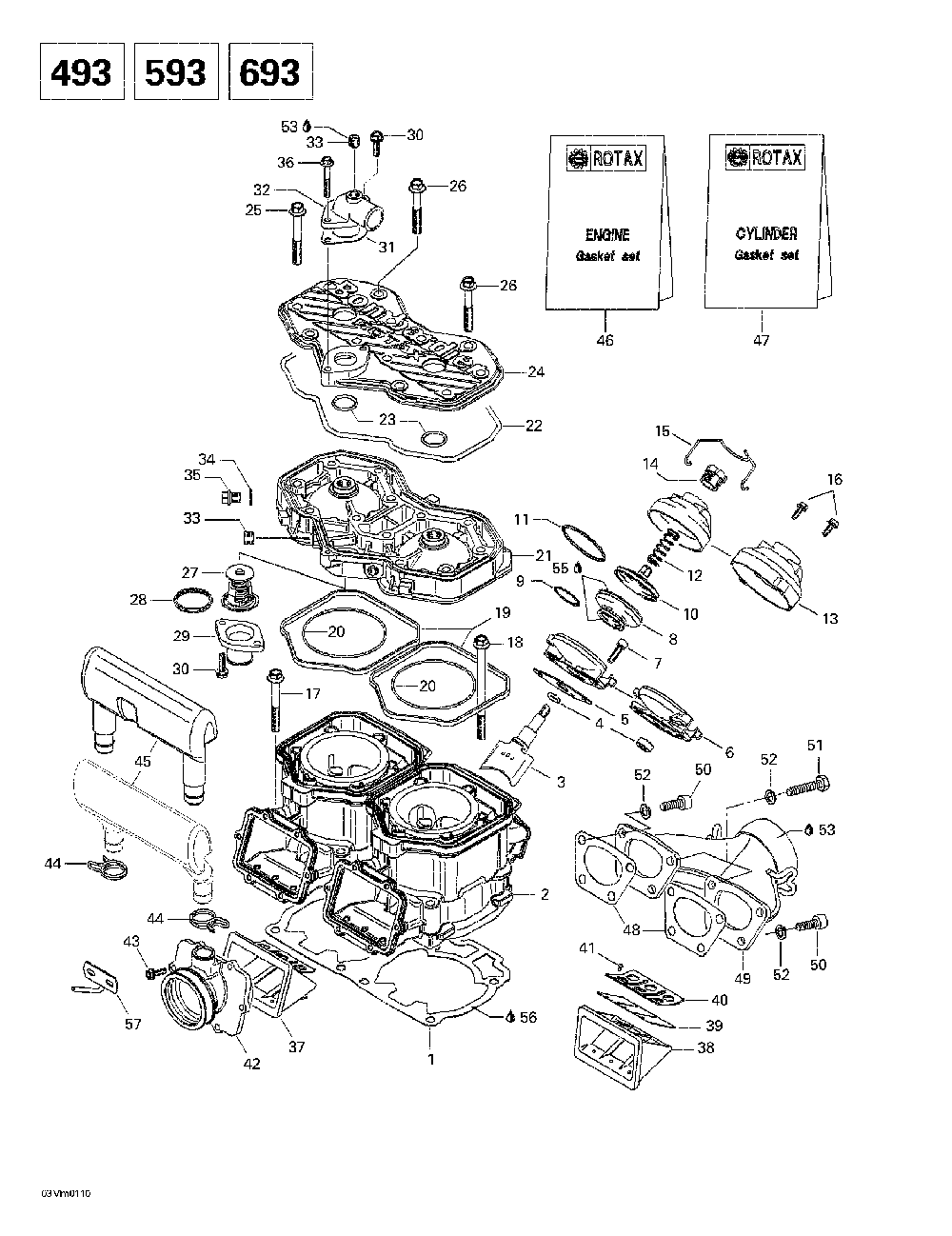

Цилиндр,впускной коллектор и мощност. клапан

Ski-Doo (Bombardier) MX Z 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
420931589
Joint 0, 8 *gasket 0, 8 Mx-z 500.
420931584
Joint 0, 8 *gasket 0, 8 Mx-z 600.
420931895
Joint 0.8 *gasket 0.8 Mx-z 700.
420931960
Joint 0.7 *gasket 0.7 Mx-z 500.
420931962
Joint 0.7 *gasket 0.7 Mx-z 600.
420931894
Joint 0.7 *gasket 0.7 Mx-z 700.
420931587
Joint 0, 6 *gasket 0, 6 Mx-z 500.
420931582
Joint 0, 6 *gasket 0, 6 Mx-z 600.
420931892
Joint 0.6 *gasket 0.6 Mx-z 700.
420931588
Joint 0, 5 *gasket 0, 5 Mx-z 500.
420931583
Joint 0, 5 *gasket 0, 5 Mx-z 600.
420431160
Joint 0.5 *gasket 0.5 Mx-z 700.
2
420613605
Cylindre + Chem*cylinder-w.sle Mx-z 500.
420613627
Cylindre + Chem*cylinder-w.sle Mx-z 600.
420923695
Cylindre Nicas.*cylinder-nicasil Mx-z 700.
3
420854490
Soupape Echap. *valve-exhaust Mx-z 500.
420854370
Soupape Echap. *valve-exhaust Mx-z 600.
420854332
Soupape Echap. *valve-exhaust Mx-z 700.
4
420430110
Joint Torique *o Ring Mx-z 500. Mx-z 600.
420950730
Сальник
5
420250239
Прокладка
6
420854267
Boitier *housing-valve Mx-z 500. Mx-z 600.
420854266
Boitier *housing-valve
7
205062044
Винт
8
420260723
Manchon *bellows
9
420838253
Bride Ressort *clamp-spring
10
420854449
Soupape Echapp.*valve-exhaust Mx-z 500. Mx-z 700.
11
420239048
Ressort Manchon*spring-hose
12
420239948
Ressort *spring Mx-z 500.
420239944
Ressort *spring Mx-z 600. Mx-z 700.
13
420911552
Couvercle Soup.*cover-valve Mx-z 500. Mx-z 600.
14
420241221
Винт-регулятор
15
420838083
Pince A Ressort*clip-spring Mx-z 500.
16
420841555
Винт M5 X 20
17
420640524
Screw-hex Collar Mx-z 700.
18
420640534
Screw-hex Collar Mx-z 700.
19
420931590
Bague Caout. *ring-rubber
20
420831792
Joint Torique *o Ring Mx-z 500.
293300026
Joint Torique *o-ring Mx-z 600.
420931840
Joint Torique *o Ring Mx-z 700.
21
420923880
Tete-cylindre *head-cylinder Mx-z 500.
420923459
Tete-cylindre *head-cylinder Mx-z 600.
420923457
Tete-cylindre *head-cylinder Mx-z 700.
22
420950320
Кольцо
23
420430782
Кольцо
24
420923465
Couvercle Cyl. *cover-cyl.head
25
420841306
Screw-hex Collar M8x65 Sw 11
26
420941627
Винт M8x56, 5
27
420922519
Термостат
28
420931270
Кольцо-прокладка
29
420922025
Raccord Sortie *bent Outlet Socket
30
420941250
Screw-tapping
31
420850338
Прокладка
32
420922062
Raccord Sortie *bent Outlet Socket
33
420240480
Screw-plug 1/8-27 Npt
36
420941451
Screw-hex Collar M6 X 40
37
420924519
Soupape Clapets*valve-reed Ass Includes 37 - 41. Mx-z 500. Mx-z 600.
39
420924680
Lame Pedale *reed-pedal Mx-z 700.
420924532
Lame Pedale *reed-pedal Mx-z 500. Mx-z 600.
40
420924539
Arret Lame Ped.*stop-reed Ped. Mx-z 500. Mx-z 600.
420924695
Arret Lame Ped.*stop-reed Ped. Mx-z 700.
41
420941215
Винт М3х5
42
420867862
Tubulure Carb. *socket Carburetor Mx-z 500.
420867882
Tubulure Carb. *socket-carburator Mx-z 600.
420867873
Tubulure Carb. *socket-carburator Mx-z 700.
43
420941925
Винт M5 X 16
44
420851440
Хомут
45
420867815
Resonate.d Adm.*resona.intake Mx-z 500.
420867817
Resonate.d Adm.*resona.intake Mx-z 600. Mx-z 700.
46
420888722
Engine Gasket Set Mx-z 500.
420888583
Ens.joint Etanc*kit-gasket Engine Mx-z 600.
420888603
Ens.joint Etanc*kit-gasket Engine Mx-z 700.
47
420888726
Ens.joint Etanc*set-gasket Cylinder Mx-z 500.
420893075
Ens.joint Etanc*set-gasket Cylinder Mx-z 600.
420888608
Ens.joint Etanc*kit-gasket Cylinder Mx-z 700.
48
420931615
Joint *gasket Mx-z 500.
420931610
Joint *gasket Mx-z 600.
420850552
Joint *gasket Mx-z 700.
49
420973650
Collect.echapp.*manifold-exh. Mx-z 500.
420979543
Collect.echapp.*manifold-exh. Mx-z 600.
420973591
Collect.echapp.*manifold-exh. Mx-z 700.
50
205082544
Screw-socket Hd.din.912 Mx-z 500. Mx-z 600.
205062544
Screw-socket Hd.din.912 Mx-z 700.
51
207182044
Screw-hex.cap Din.933 Mx-z 500. Mx-z 600.
52
234181401
Washer-lock Din.127b Mx-z 500. Mx-z 600.
234161471
Washer-lock Black Din.127b Mx-z 700.
53
293800090
Смазка
54
293800060
Фиксатор резьбы loctite-243
55
413707000
Смазка Corning 111
56
293800038
Локтайт-518
57
512059504
Attache Carb.so*bracket-carb.weld Mx-z 600. Mx-z 700.
420431423
Joint *gasket 0.8mm Mx-z 600.
420613628
Cylindre + Chem*cylinder-w.sle Mx-z 600.
