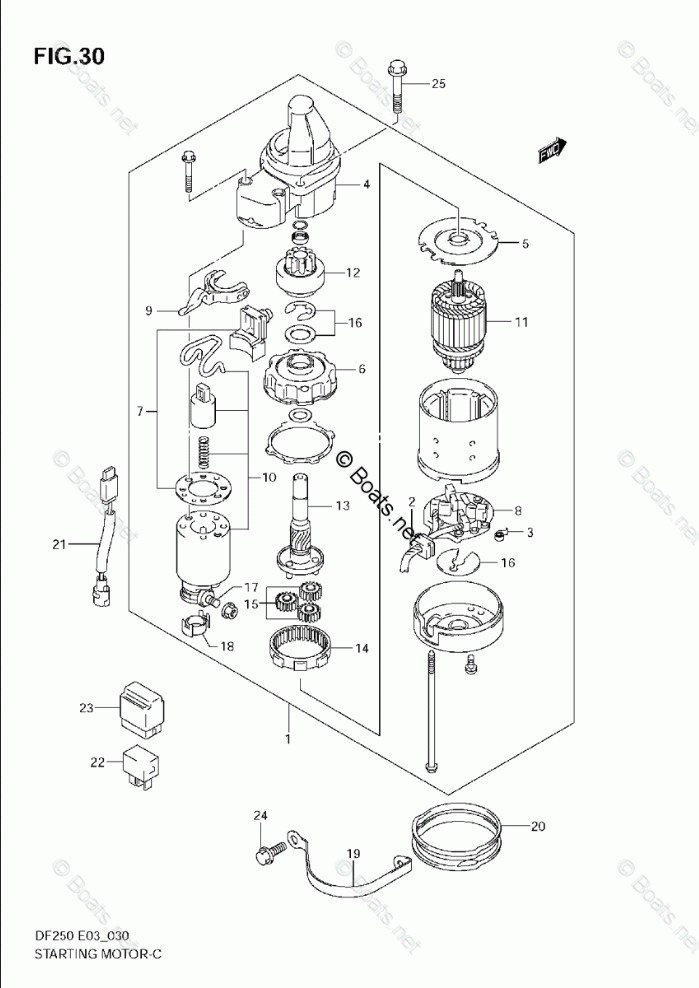

ПУСКОВОЙ ЭЛЕКТРОДВИГАТЕЛЬ

Suzuki Marine DF 225ZXX
Suzuki Marine
#oem кодцена
1
31100-96J01
STARTING MOTOR *{<-31100-93J00}*
2
31131-90J01
BRUSH SET, PLUS
3
31135-90J00
SPRING
4-1
31151-93J00
CASE, GEAR
4-2
31151-94J00
CASE, GEAR *{DF200T:780655~ DF225T:780576~ DF250T:780920~ DF200Z:780109~ DF225Z:780122~ DF250Z:780344~ DF250S}*
5
31152-90J00
PLATE, CENTER
6
31153-90J00
BRACKET, PLANET GEAR
7-1
31171-93J00
COVER KIT, DUST
7-2
31171-96J00
COVER KIT, DUST *{DF200T:780655~ DF225T:780576~ DF250T:780920~ DF200Z:780109~ DF225Z:780122~ DF250Z:780344~ DF250S}*
8
31173-90J01
HOLDER, BRUSH
9-2
31191-96J00
LEVER, SHIFT *{DF200T:780655~ DF225T:780576~ DF250T:780920~ DF200Z:780109~ DF225Z:780122~ DF250Z:780344~ DF250S}*
9-1
31191-93J00
LEVER, SHIFT
10-1
31220-90J00
SWITCH, MAGNET
10-2
31220-94J00
SWITCH, MAGNET *{DF200T:780655~ DF225T:780576~ DF250T:780920~ DF200Z:780109~ DF225Z:780122~ DF250Z:780344~ DF250S}*
11
31310-90J00
ARMATURE
12
31320-93J00
PINION
13
31341-93J00
SHAFT, PINION
14
31343-90J00
INTERNAL GEAR
15
31344-90J00
GEAR, PLANETARY
16
31360-93J01
WASHER SET
17
31913-93J00
TERMINAL
18
31914-93J00
CAP, TERMINAL
19
31912-93J01
BAND, STARTING MOTOR
20-1
31918-90J00
DAMPER, LOWER
20-2
31918-90J10
DAMPER, LOWER *{MODEL:06~}*
21
36645-93J00
LEAD WIRE
22
38860-76F01
RELAY, STARTING MOTOR
23
38915-90J00
HOLDER, RELAY
24
01550-08207
BOLT, LOWER
25
01550-08307
BOLT, UPPER
