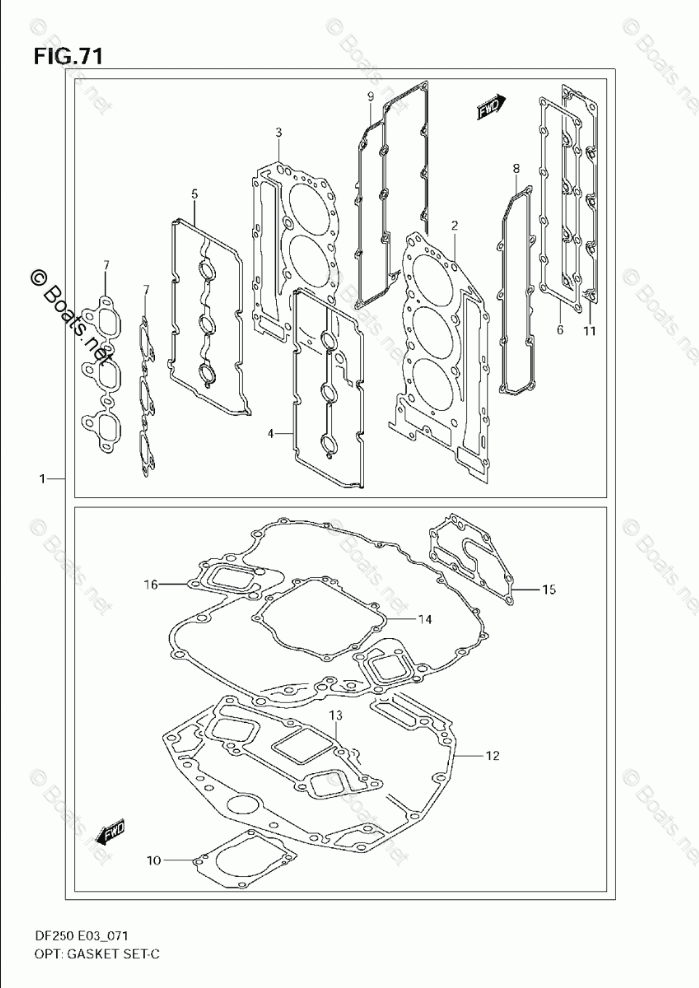

ОПЦИЯ: КОМПЛЕКТ ПРОКЛАДОК

Suzuki Marine DF 250ZX
Suzuki Marine
#oem кодцена
1-1
11410-93864
GASKET SET *{<-11410-93861}*
1-2
11410-93870
GASKET SET *{MODEL:10~}*
1-3
11410-98821
GASKET SET *{DF250S}*
1-4
11410-98830
GASKET SET *{DF250S MODEL:10~}*
2-1
11141-93J03
GASKET, CYL HEAD STBD
2-3
11141-98J01
GASKET, CYL HEAD STBD *{DF250S}*
2-4
11141-98J10
GASKET, CYL HEAD STBD *{DF250S MODEL:10~}*
2-2
11141-93J10
GASKET, CYL HEAD STBD *{MODEL:10~}*
3-1
11142-93J03
GASKET, CYL HEAD PORT
3-2
11142-93J10
GASKET, CYL HEAD PORT *{MODEL:10~}*
3-3
11142-98J01
GASKET, CYL HEAD PORT *{DF250S}*
3-4
11142-98J10
GASKET, CYL HEAD PORT *{DF250S MODEL:10~}*
4
11179-93J00
GASKET, CYL HEAD COVER STBD
5
11189-93J00
GASKET, CYL HEAD COVER PORT
6
11332-93J00
GASKET, CRANKCASE WTR JKT CO
7
13119-93J00
GASKET, INTAKE MANIFOLD
8
14151-93J00
GASKET, EXH COVER STUD
9
14152-93J00
GASKET, EXH COVER PORT
10-1
17472-93J00
GASKET, PUMP CASE PANEL
10-2
17472-98J00
GASKET, PUMP CASE PANEL *{DF250S}*
11
11272-93J00
GASKET, CYL BLOCK PLATE
12
11489-93J00
GASKET, OIL PAN
13
14212-93J00
GASKET, EXHAUST TUBE
14
51123-93J00
GASKET, MOUNT OIL SEAL COVER
15
51142-93J00
GASKET, ENGINE HOLDER COVER
16
51211-93J00
GASKET, ENGINE HOLDER
17
11542-93J00
GASKET, EXHAUST PIPE *{FOR 11410-93861 NOT SHOWN}*
