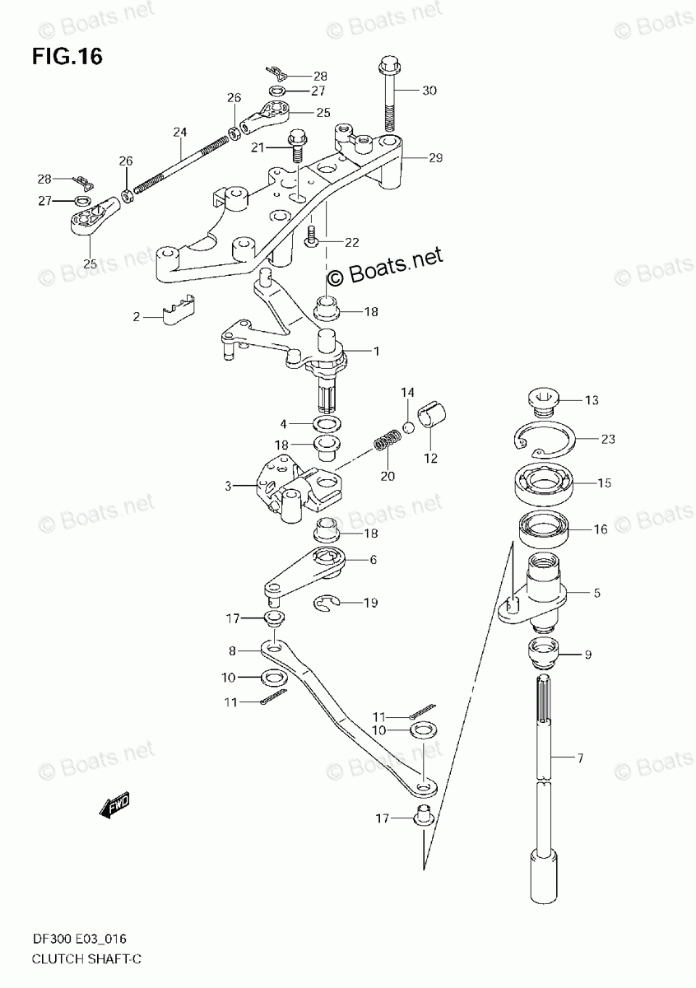

ВАЛ СЦЕПЛЕНИЯ

Suzuki Marine DF 300TXXZ
Suzuki Marine
#oem кодцена
1
21110-98J00
LEVER, CLUTCH
2
21131-93J00
BUSH, CLUTCH LEVER
3
21151-93J00
HOLDER, CLUTCH LEVER
4
09160-10148
WASHER, CLUTCH SHAFT
5
21210-98J00
SHAFT, CLUTCH
6
21230-98J00
ARM, CLUTCH SHAFT
7
23111-93J00
ROD, CLUTCH
8
23115-98J00
LINK, CLUTCH LEVER
9
25223-94400
COVER, CLUTCH ROD
10
09160-06094
WASHER, LINK (6.5X15X1.5)
11
09204-01006
PIN, CLUTCH LEVER LINK
12
09205-10006
PIN, CLUTCH NOTCH SPRING
13
09248-12005
PLUG, CLUTCH SHAFT
14
09260-10005
BALL, CLUTCH NOTCH
15
09262-17019
BEARING, CLUTCH SHAFT
16
09289-18001
SEAL, CLUTCH SHAFT
17
09306-06005
BUSH, CLUTCH LEVER LINK
18
09306-10001
BUSH, CLUTCH LEVER
19
09383-08004
E RING, CLUTCH LEVER
20
09440-07051
SPRING, CLUTCH NOTCH
21
01550-06207
BOLT, CLUTCH LEVER HOLDER
22
02142-05107
SCREW, SHIFT PLATE
23
08331-41359
CIRCLIP, CLUTCH SHAFT BEARING
24
21241-98J00
LINK, CLUTCH LEVER NO.2
25
67467-89J01
CONNECTOR, REMOCON CABLE
26
67471-99E00
NUT, REMOCON CABLE
27
09160-06055
WASHER, CLUTCH LEVER (7X12X1)
28
09385-06012
CLIP, CLUTCH LEVER
29-2
19115-98J10
HOLDER, CLUTCH LEVER *{MODEL:08~}*
29-1
19115-98J00
HOLDER, CLUTCH LEVER
30
01550-08557
BOLT, CLUTCH LEVER HOLDER
