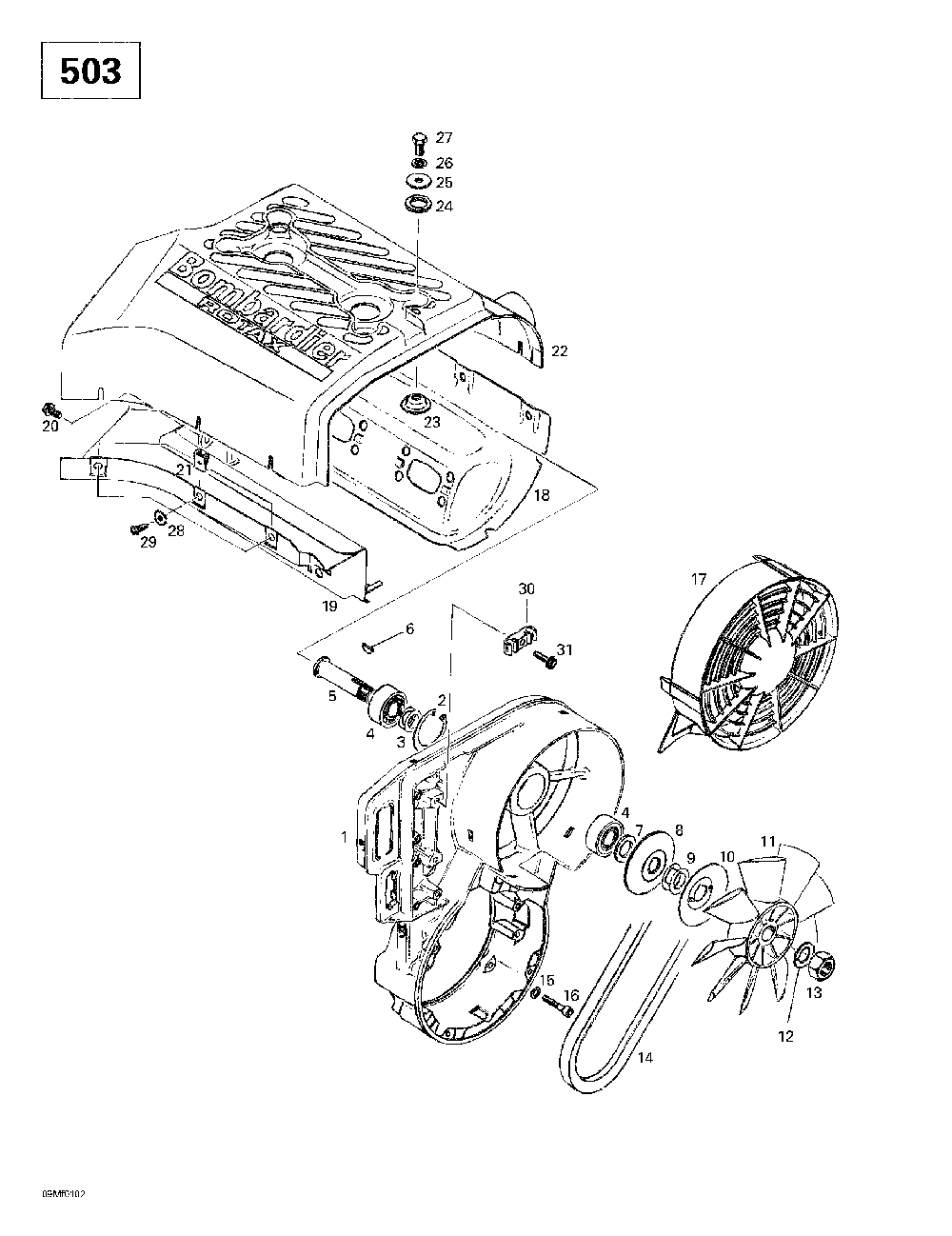

01- cooling system fan (503)

Ski-Doo (Bombardier) Skandic 500F/600
Ski-Doo (Bombardier)
#oem кодцена
1
420912204
Logement Vent. *housing-fan Skandic 500f. Skandic 500f (swt).
2
420945880
Bague D Arret *ring-lock Skandic 500f. Skandic 500f (swt).
3
420244585
Cale Epaisseur *shim Skandic 500f. Skandic 500f (swt).
4
405406100
Roulement Bille*ball Bearing Skandic 500f. Skandic 500f (swt).
5
420937940
Axe Ventilateur*axle-fan Skandic 500f. Skandic 500f (swt).
6
420246015
Clavette *key-woodruff Skandic 500f. Skandic 500f (swt).
7
420827650
Douille Ecart. *bushing-spacer Skandic 500f. Skandic 500f (swt).
8
420980496
Flasque *flange Skandic 500f. Skandic 500f (swt).
9
420827080
Cale Epaisseur *shim Skandic 500f. Skandic 500f (swt).
420827082
Cale Epaisseur *shim Skandic 500f. Skandic 500f (swt).
10
420980523
Rondelle Prot. *washer-protec. Skandic 500f. Skandic 500f (swt).
11
420866292
Ventilateur *fan Skandic 500f. Skandic 500f (swt).
12
420945756
Rondelle-frein *washer-lock#16 Skandic 500f. Skandic 500f (swt).
13
420942285
Nut-hex.m16x1.5 Skandic 500f. Skandic 500f (swt).
14
414630800
Courroie Vent. *belt-v Skandic 500f. Skandic 500f (swt).
15
420945751
Washer-lock Din.128 Skandic 500f. Skandic 500f (swt).
16
205063044
Screw-socket Hd.din.912 Skandic 500f. Skandic 500f (swt).
17
420975695
Couvercle Vent.*cover-fan Skandic 500f. Skandic 500f (swt).
18
420810543
Deflecteur Cyl.*cowl-cyl. Skandic 500f. Skandic 500f (swt).
19
420810546
Deflecteur Cyl.*cowl-cyl. Skandic 500f. Skandic 500f (swt).
20
420240385
Screw-taptite M6 X 12 Skandic 500f. Skandic 500f (swt).
21
417300005
Nut-spring 4.8 Skandic 500f. Skandic 500f (swt).
22
420811295
Deflecteur Cyl.*cowl-cyl. Skandic 500f. Skandic 500f (swt).
23
420827817
Rondelle *washer-cup Skandic 500f. Skandic 500f (swt).
24
420960865
Rondelle Caout.*washer-rubber Skandic 500f. Skandic 500f (swt).
25
420227935
Rondelle *washer Skandic 500f. Skandic 500f (swt).
26
420945752
Washer-lock Din.128 Skandic 500f. Skandic 500f (swt).
27
207181644
Screw-hex.cap Din.933 Skandic 500f. Skandic 500f (swt).
28
420926180
Washer-flat 5, 2 X 14, 8 X1, 5 Skandic 500f. Skandic 500f (swt).
29
417300006
Screw-tapping 4, 8 X 16 Skandic 500f. Skandic 500f (swt).
30
420860940
Bride *clamp Skandic 500f. Skandic 500f (swt).
31
420941250
Screw-tapping Skandic 500f. Skandic 500f (swt).
