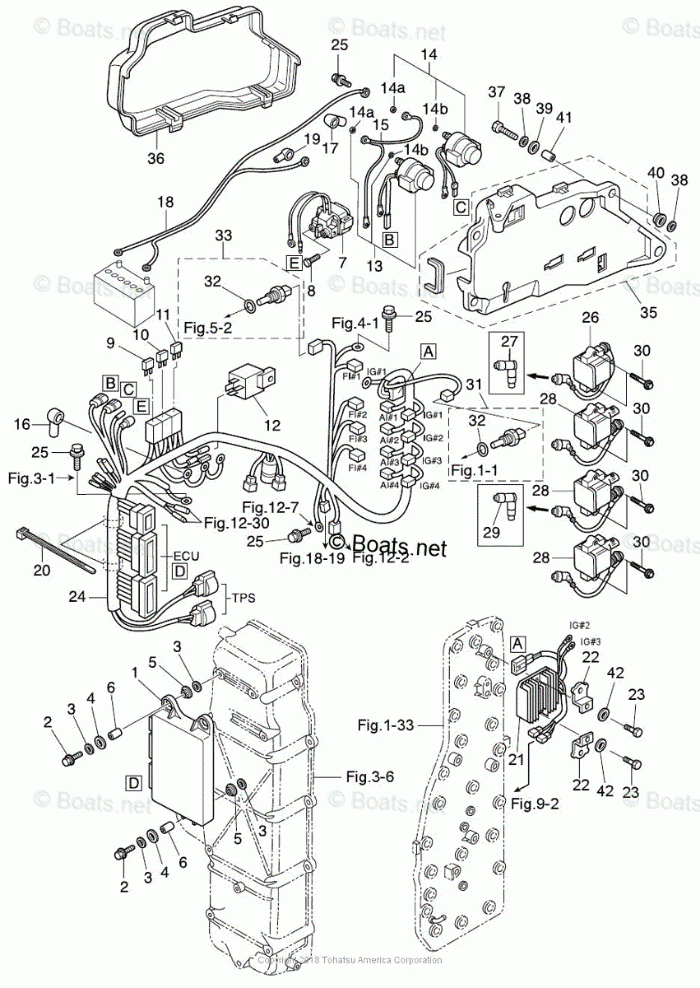

ELECTRIC PARTS (ECU & DIAGRAM)

Tohatsu MD115A2
Tohatsu
#oem кодцена
10-4
346671130
MOUNT RUBBER
10-31
3Y9725140
WATER TEMPERATURE SENSOR, D40/50/70/90/115A/F25/30B
10-35
3T1725930
BRACKET, SOLENOID SWITCH
10-21
3T1760602
RECTIFIER
10-6
3T5671140
SPACER
10-15
3T5761420
CORD A, SOLENOID SWITCH
10-11
3T5762460
FUSE, 15A
10-9
3T5762490
FUSE, 30A
10-33
3Y9725140
WATER TEMPERATURE SENSOR, D40/50/70/90/115A/F25/30B
10-10
3Y9762480
FUSE 25A
10-29
3T1069990
PLUG CAP (WITH RESISTANCE)
10-2
9101036630
BOLT
10-37
9101036630
BOLT
10-8
9101E35610
BOLT & WASHER (10 MULTIPLE)
10-25
9101E35612
BOLT & WASHER (10 MULTIPLE)
10-8
9101E35612
BOLT & WASHER (10 MULTIPLE)
10-30
9101E37635
BOLT
10-14A
9301030600
NUT (10 MULTIPLE)
10-42
9401030600
WASHER (10 MULTIPLE)
10-22
3T1072331
RECTIFIER PLATE
10-27
3T1069990
PLUG CAP (WITH RESISTANCE)
10-39
346671130
MOUNT RUBBER
10-5
3B7069200
MOUNT RUBBER
10-41
346671141
SPACER
10-3
346671150
WASHER
10-20
369843980
WIRE TIE BAND
10-17
3A3761450
CAP BATTERY CORD
10-16
3A3761450
CAP BATTERY CORD
10-13
3AC725800
PTT SOLENOID SWITCH "A"
10-14
3AC725810
PTT SOLENOID SWITCH "B"
10-40
3B7069200
MOUNT RUBBER
10-18
3B7761202
BATTERY CORD
10-36
3T1069020
COVER, SOLENOID SWITCH BRACKET
10-19
3B7761450
TERMINAL CAP, SOLENOID SWITCH
10-38
3C8663080
WASHER
10-32
3G9661360
O-RING
10-7
3H8760400
STARTER SOLENOID
10-1
3HK064011
ECU (MD115A2)
10-12
3T1063300
RELAY
10-28
3T1064690
IGNITION COIL, #2, #3, & #4
10-26
3T1064700
IGNITION COIL #1
10-14B
9413030600
SPRING WASHER (10 MULTIPLE)
