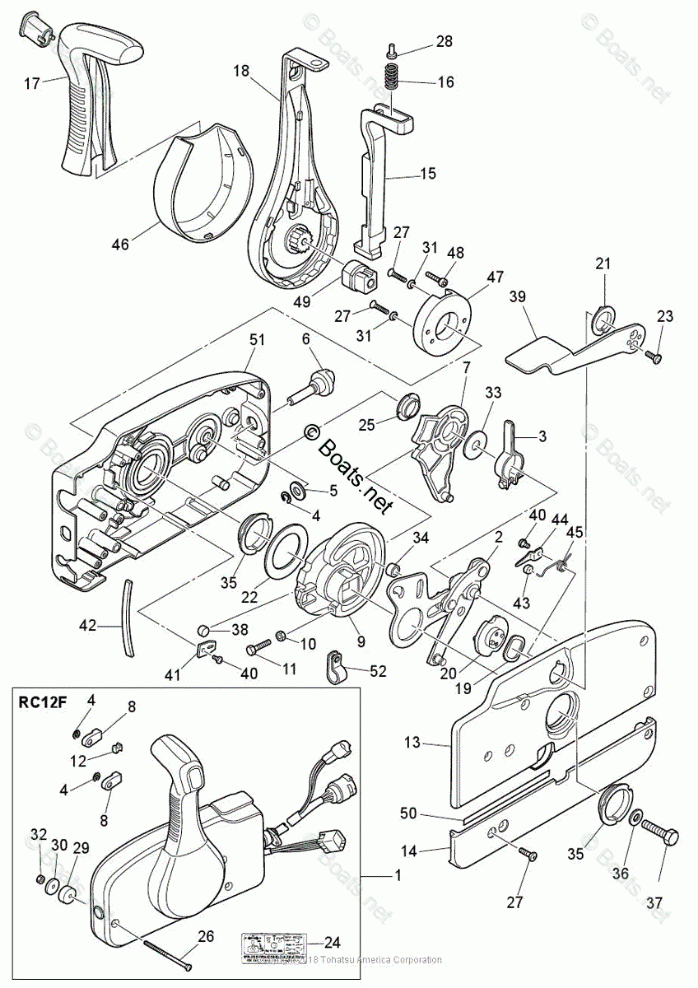

COMPONENT PARTS OF REMOTE CONTROL
COMPONENT PARTS OF REMOTE CONTROL

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MD115A2

COMPONENT PARTS OF REMOTE CONTROL

#

oem код

название

цена

21-30

WASHER

WASHER

21-41

RETAINER

RETAINER

21-4

E-RING (10 MULTIPLE)

E-RING (10 MULTIPLE)

21-36

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

21-32

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

21-10

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

21-23

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

21-40

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

21-11

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

21-21

BUSHING

BUSHING

21-25

BUSHING B

BUSHING B

21-3

ARM

ARM

21-44

RETAINER

RETAINER

21-45

SPRING, FREE ACCELERATOR

SPRING, FREE ACCELERATOR

21-43

ROLLER, FREE ACCELERATOR

ROLLER, FREE ACCELERATOR

21-22

THRUST PLATE

THRUST PLATE

21-38

ROLLER, THROTTLE DRUM

ROLLER, THROTTLE DRUM

21-34

ROLLER

ROLLER

21-16

SPRING

SPRING

21-20

DRUM, FREE ACCELERATOR

DRUM, FREE ACCELERATOR

21-33

WASHER

WASHER

21-7

SHIFT GEAR ASSY

SHIFT GEAR ASSY

21-12

GROMMET

GROMMET

21-29

SPACER

SPACER

21-19

WAVE WASHER

WAVE WASHER

21-2

THROTTLE ARM

THROTTLE ARM

21-9

DRIVE GEAR

DRIVE GEAR

21-42

SPRING

SPRING

21-8

TERMINAL EYE

TERMINAL EYE

21-5

WASHER

WASHER

21-1

RC BOX, RC12F, ALL TLDI/MFS40/50A 2018

RC BOX, RC12F, ALL TLDI/MFS40/50A 2018
