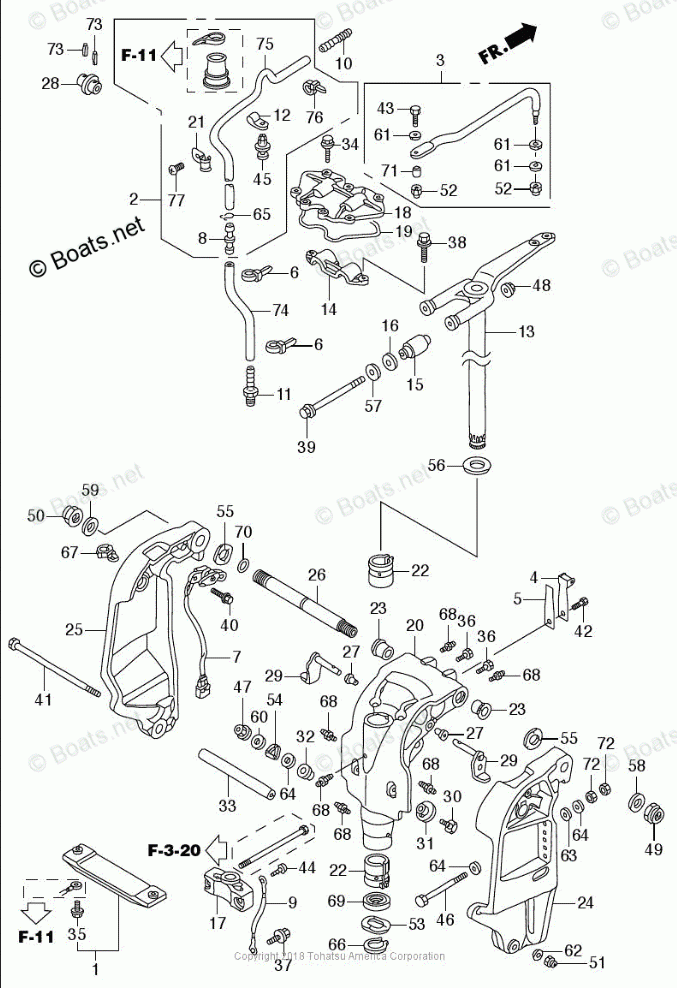

Stern Bracket + Swivel Case

Tohatsu BFT225A
Tohatsu
#oem кодцена
F-10-8
H663-38562-920
JNT, TUBE R WASHER
F-10-47
HZY1-90205-000
NUT, SELF-LOCK, 6MM
F-10-68
HZV7-90951-010
NIPPLE, GREASE
F-10-1
HZW1-06411-020
METAL KIT, ANODE
F-10-51
HZW4-90306-003
NUT, FLANGE, 10MM
F-10-48
HZW5-90302-003
NUT, FLANGE, 12MM
F-10-35
HZW9-90009-000
BOLT, FLANGE, 6X23
F-10-37
HZW9-90103-010
BOLT, FLANGE, 6X12
F-10-40
HZW9-90105-000
BOLT, FLANGE, 6X20
F-10-46
HZX2-90129-000
BOLT, HEX, 12 X 130
F-10-3
HZY3-06532-U00
DRAG LINK ASSY, STEERING
F-10-69
HZV5-91256-003
OIL SEAL (39.5X52X6)
F-10-7
HZY3-35660-003
SENSOR ASSY, TRIM ANGLE
F-10-9
HZY3-40219-013
WIRE, LEAD (1.5X116MM)
F-10-14
HZY3-50109-000
HOUSING, MOUNTING
F-10-18
HZY3-50166-000
COVER, MOUNT (UPPER)
F-10-19
HZY3-50168-000
SEAL, MOUNT COVER (UPPER)
F-10-39
HZY3-90104-010
BOLT, HEX
F-10-43
HZY3-90117-000
BOLT, 3/8 X 24 UNF
F-10-15
HZY3-50151-000
MOUNT COMP., UPPER RUBBER
F-10-70
HZV5-91352-000
O-RING, 15.54X2.26
F-10-66
HZV5-90651-000
CIRCLIP, 39MM
F-10-67
H763-90681-A01
CLIP, WIRE HARN
F-10-10
HZV5-41171-000
NIPPLE, END
F-10-62
H921-90511-000
WASHER, PLAIN, 10MM
F-10-65
H921-90602-000
CLIP, B8 TUBE
F-10-72
HCO-94001-12490-0S
NUT, HEX 12MM
F-10-74
HCO-95005-5020030
TUBE 5X200
F-10-75
HCO-95005-5095030
TUBE 5X950
F-10-6
HKM3-32161-003
BAND WIRE
F-10-76
HKM3-32161-003
BAND WIRE
F-10-61
HZV4-90514-000
WASHER, 10MM
F-10-11
HZV5-41172-000
NIPPLE, SENSOR
F-10-64
HZV5-90559-000
WASHER, PLAIN 12MM
F-10-44
HZV5-90119-000
SCREW, PAN, 6X8
F-10-77
HZV5-90119-000
SCREW, PAN, 6X8
F-10-45
HZV5-90127-003
SCREW, RIVET, 5X10
F-10-49
HZV5-90304-013
NUT, SELF-LOCK(7/8-14UNF)
F-10-52
HZV5-90307-003
NUT, SELF LOCK, 3/8-24 UNF
F-10-53
HZV5-90501-000
WAVE WASHER, 40MM
F-10-55
HZV5-90502-000
WASHER, WAVE, 26MM
F-10-56
HZV5-90504-000
WASHER, 34MM
F-10-63
HZV5-90552-000
WASHER, PLAIN, 12MM
F-10-16
HZY3-50153-000
RUBBER, UPPER MOUNT STOPPER
