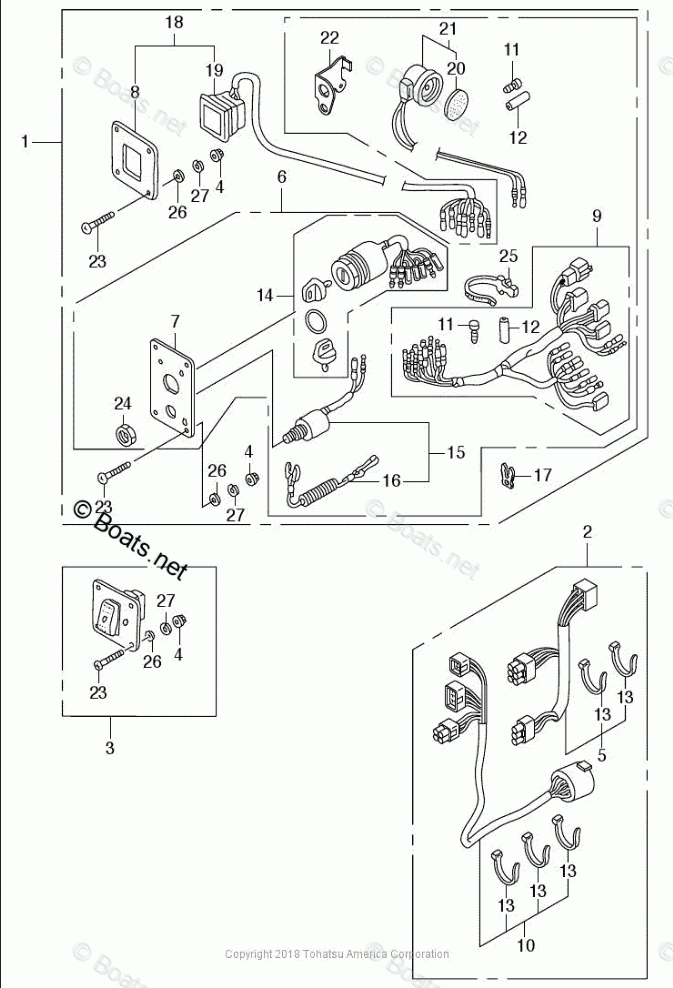

Switch Panel Kit (1)

Tohatsu BFT225A
Tohatsu
#oem кодцена
FOP-4-20
H341-38403-672
PLATE, WINKER BUZZER
FOP-4-21
HZV5-38410-003
BUZZER, WARNING
FOP-4-10
HZZ5-32580-700
CABLE ASSY., SWITCH PANEL (25 FT.)
FOP-4-10
HZZ5-32580-600
CABLE ASSY., SWITCH PANEL (20 FT.)
FOP-4-9
HZZ5-32545-000
HARNESS ASSY, SWITCH PANEL
FOP-4-18
HZZ3-37205-R01
PANEL ASSY, INDICATOR (4-LED)
FOP-4-7
HZZ3-32346-R21
PANEL, CONTROL
FOP-4-1
HZZ3-06323-R20
PANEL KIT, SWITCH (B) (4-LED) *{/*For BFT Binnacle and Flush Mount Key switch replacement use part number HZW7-36452-410*/}*
FOP-4-14
HZW7-36452-410
KEY SWITCH PANEL-SINGLE ENGINE
FOP-4-15
HZV5-36180-033
SWITCH ASSY, EMERGENCY STOP
FOP-4-24
H921-90302-000
NUT, HEX, 16MM
FOP-4-12
HZV5-32824-003
PLUG, OUTER CONNECTOR
FOP-4-11
HZV5-32823-003
PLUG, INNER CONNECTOR
FOP-4-17
HZV4-36187-652
LOCK CLIP, EMERGENCY-2-PRONG
FOP-4-16
HZV4-36182-651
LANYARD CORD COMP, EMERGENCY-2-PRONG
FOP-4-27
HCO-94111-05400
WASHER, SPG 5MM
FOP-4-26
HCO-94103-05400
WASHER, PLAIN 5MM
FOP-4-13
H952-32901-770
TIE, CABLE
FOP-4-10
HZZ5-32580-800
CABLE ASSY., SWITCH PANEL (30 FT.)
