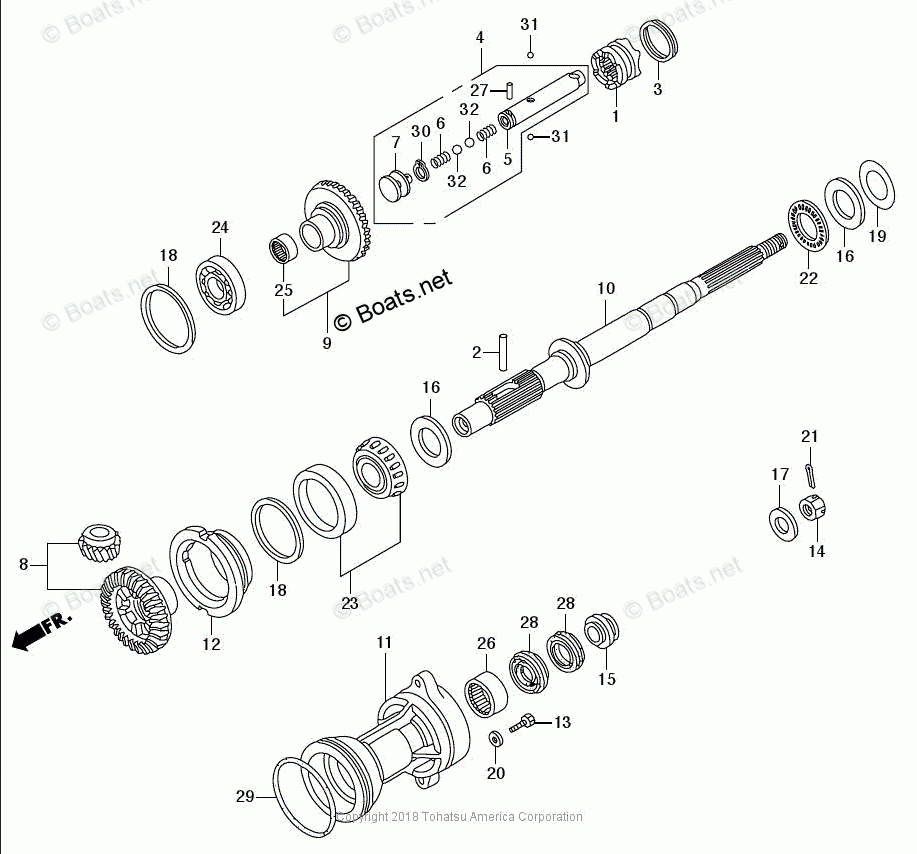

Propeller Shaft (Counter Rotation)

Tohatsu BFT225A
Tohatsu
#oem кодцена
F-5-1-30
HCO-94510-15000
CIRCLIP, EX 15
F-5-1-10
HZY3-41161-B00
SHAFT, PROPELLER, BFT200/225A (COUNTER ROTAT)
F-5-1-29
HZY3-91351-C00
O-RING, 110X3.1
F-5-1-27
HZY3-91151-000
ROLLER, 3 X 13.8
F-5-1-26
HZY3-91057-003
BEARING, NEEDLE, 32X42X30
F-5-1-24
HZY3-91055-003
BEARING, ANGULAR, 50X90X30.2
F-5-1-23
HZY3-91051-003
BEARING, TAPER, 50 X 90 X 21.5
F-5-1-18
HZY3-90531-000
SHIM D, BEVEL (0.50)
F-5-1-18
HZY3-90530-000
SHIM C, BEVEL (0.30)
F-5-1-18
HZY3-90529-000
SHIM B, BEVEL (0.15)
F-5-1-18
HZY3-90528-000
SHIM A, BEVEL (0.10)
F-5-1-17
HZY3-90512-000
WASHER, PROP
F-5-1-13
HZY3-90123-000
BOLT, HEX 12 X 45
F-5-1-11
HZY3-41201-C00ZC
HOUSING, PROP SHAFT (BFT200/225)
F-5-1-7
HZY3-24124-310
PLATE, SHIFT
F-5-1-31
HCO-96211-07000
BALL, STEEL 7
F-5-1-6
HZY3-24123-000
SPRING, SHIFT
F-5-1-5
HZY3-24122-A01
SLIDER, SHIFT
F-5-1-4
HZY3-24113-A01
SLIDER, SHIFT
F-5-1-3
HZY3-24103-000
RING, CROSS PIN
F-5-1-2
HZY3-24102-000
PIN, SHIFTER, 8 X 50
F-5-1-1
HZY3-24101-A01
SHIFTER, CLUTCH
F-5-1-15
HZX2-90506-C00
WASHER, PROP THRUST
F-5-1-16
HZW5-90509-711
WASHER, THRUST BEARING
F-5-1-21
HZW1-90758-B00
PIN, SPLIT 4.0
F-5-1-14
HZW1-90301-B00
NUT, CASTLE 18MM
F-5-1-20
HZV5-90559-000
WASHER, PLAIN 12MM
F-5-1-22
HPT2-91005-N01
THRUST BEARING
F-5-1-32
HCO-96211-12000
BALL, STEEL 12
F-5-1-28
HZZ3-91252-003
SEAL, PROPELLER SHAFT
