  6. COMPONENT PARTS OF REMOTE CONTROL

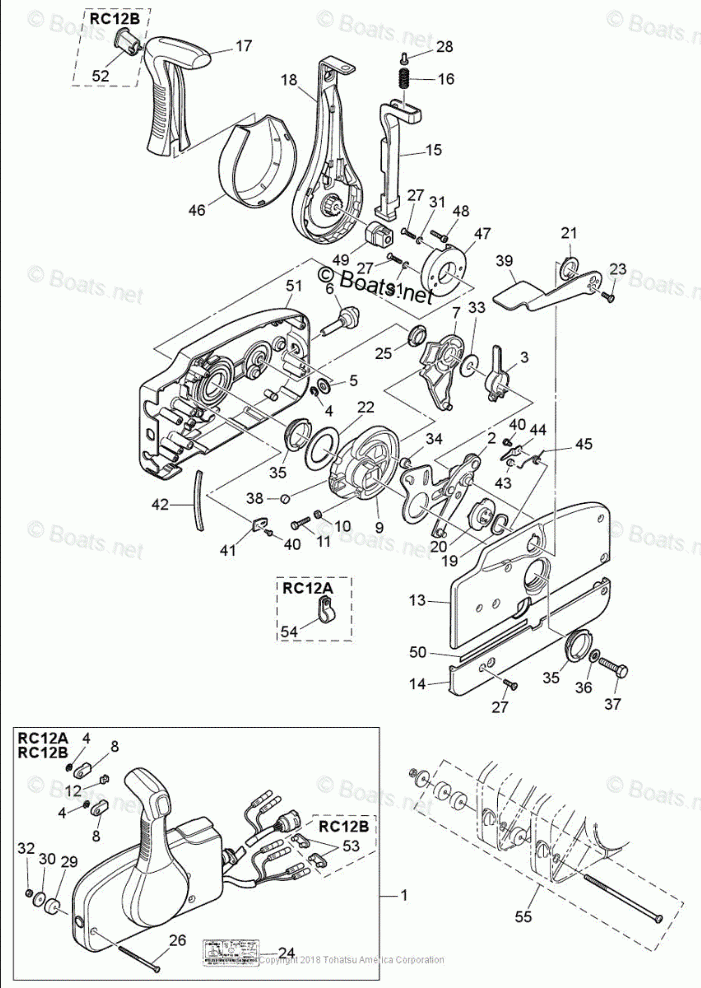

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS30C
Tohatsu
#oem кодцена
21-53
353760370
PLUG
21-41
3A3844230
RETAINER
21-1
3U2B843300
R C BOX (RC12A) MFS8-30C, M40D2-90A W/PTT/ELECTRIC START(2018)
21-4
9453030600
E-RING (10 MULTIPLE)
21-36
9401030800
WASHER (10 MULTIPLE)
21-32
9301030600
NUT (10 MULTIPLE)
21-10
9301030500
NUT (10 MULTIPLE)
21-23
9216030512
SCREW (10 MULTIPLE)
21-40
9215030406
SCREW (10 MULTIPLE)
21-11
9101030525
BOLT (10 MULTIPLE)
21-21
3A3844350
BUSHING
21-25
3A3844320
BUSHING B
21-3
3A3844280
ARM
21-44
3A3844260
RETAINER
21-45
3A3844250
SPRING, FREE ACCELERATOR
21-43
3A3844240
ROLLER, FREE ACCELERATOR
21-22
3A3844220
THRUST PLATE
21-30
353843710
WASHER
21-2
3A3843651
THROTTLE ARM
21-38
353843880
ROLLER, THROTTLE DRUM
21-5
353843940
WASHER
21-55
3A3813010
TWIN SLRC KIT
21-8
3A3833142
TERMINAL EYE
21-42
3A3843070
SPRING
21-9
3A3843642
DRIVE GEAR
21-19
3A3843680
WAVE WASHER
21-34
3A3844210
ROLLER
21-29
3A3843740
SPACER
21-12
3A3843760
GROMMET
21-7
3A3843810
SHIFT GEAR ASSY
21-33
3A3843830
WASHER
21-20
3A3843910
DRUM, FREE ACCELERATOR
21-16
3A3844030
SPRING
21-1
3U2B843400
RC BOX, RC12B (MFS-15/18B2-15/20D-25/30C EP) W/ ELECTRIC START W/O PTT(2018)
