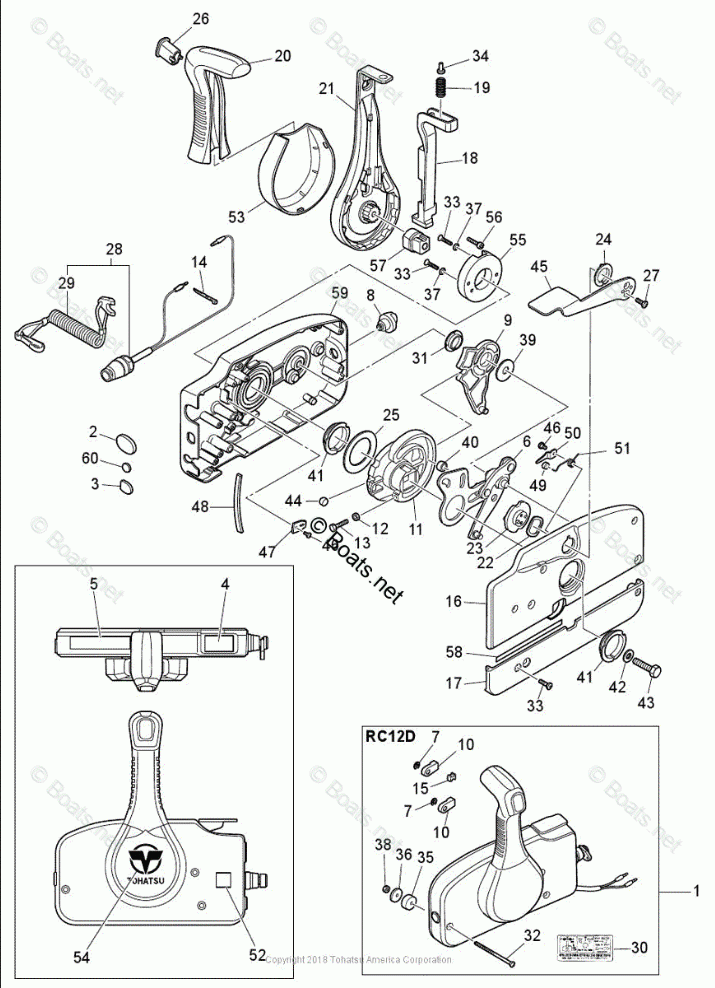

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS4C
Tohatsu
#oem кодцена
15-29
353068210
SAFETY LANYARD & LOCK
15-40
3A3844210
ROLLER
15-7
9453030600
E-RING (10 MULTIPLE)
15-42
9401030800
WASHER (10 MULTIPLE)
15-38
9301030600
NUT (10 MULTIPLE)
15-12
9301030500
NUT (10 MULTIPLE)
15-27
9216030512
SCREW (10 MULTIPLE)
15-46
9215030406
SCREW (10 MULTIPLE)
15-13
9101030525
BOLT (10 MULTIPLE)
15-24
3A3844350
BUSHING
15-31
3A3844320
BUSHING B
15-50
3A3844260
RETAINER
15-51
3A3844250
SPRING, FREE ACCELERATOR
15-49
3A3844240
ROLLER, FREE ACCELERATOR
15-47
3A3844230
RETAINER
15-25
3A3844220
THRUST PLATE
15-19
3A3844030
SPRING
15-3
353843210
GROMMET-DISCONTINUED *{/*NO LONGER AVAILABLE*/}*
15-23
3A3843910
DRUM, FREE ACCELERATOR
15-39
3A3843830
WASHER
15-9
3A3843810
SHIFT GEAR ASSY
15-15
3A3843760
GROMMET
15-35
3A3843740
SPACER
15-22
3A3843680
WAVE WASHER
15-6
3A3843651
THROTTLE ARM
15-11
3A3843642
DRIVE GEAR
15-48
3A3843070
SPRING
15-10
3A3833142
TERMINAL EYE
15-28
3A3068300
STOP SWITCH ASSY W/LANYARD *{/*FOR BINNACLE SWITCH W/FLAT PLUG USE 3Y9068300M*/}*
15-60
369844180
GROMMET E
15-44
353843880
ROLLER, THROTTLE DRUM
15-36
353843710
WASHER
15-1
3U2B843600
RC BOX, RC12D (MFS4B~30C),W/O ELECT START(2018)
