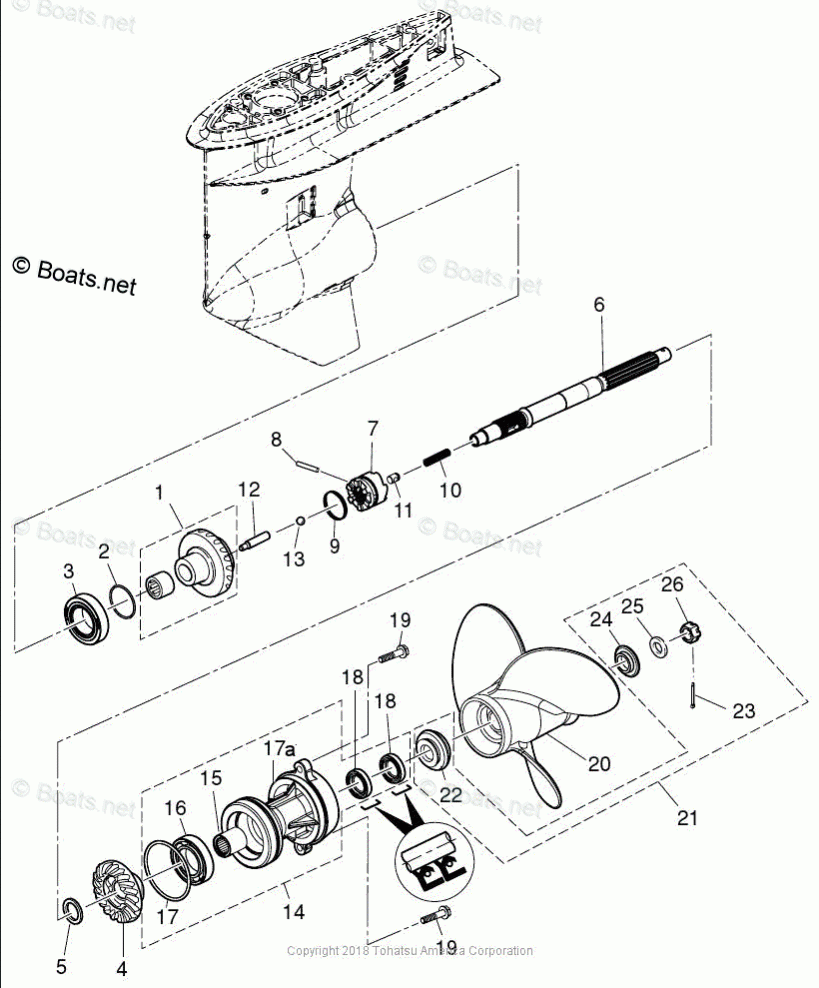

GEAR CASE (PROPELLER SHAFT)

Tohatsu MFS50A
Tohatsu
#oem кодцена
12-3
345602150
BEARING, TAPERED ROLLER, 32007JR
12-6
3KY642110
PROPELLER SHAFT (13 SPLINE)
12-21
3KY873260
PROP HDWR KIT F40/50
12-22
3KY642310
THRUST HOLDER F40/50A
12-13
9650020803
SST BALL
12-16
960106007
BEARING
12-23
9515030325
SPLIT PIN (10 MULTIPLE)
12-19
9101035830
BOLT
12-24
3TW642320
STOPPER
12-25
3TW641240
WASHER,PROP NUT (D40/50B2)
12-17A
3KYQ601010
PROP SHAFT HOUSING
12-12
3KY642230
PUSH ROD
12-7
3KY642150
CLUTCH
12-5
3KY640320
WASHER 22.1-26-3
12-20
348B641081
PROP 40C,D-50D (11.4 DIA. X 7.1 PITCH) 4 BLADE *{/*FOR VERY HEAVY APPLICATION EX. WORK BOAT OR LARGE PONTOON BOAT*/}*
12-4
3KY640300
BEVEL GEAR (C)
12-1
3KY640100
BEVEL GEAR (A)
12-17
3KY601030
O-RING
12-15
3KY601020
NEEDLE BEARING
12-18
3F3602230
OIL SEAL 22-37-8
12-11
3C8642220
SPRING HOLDER, CLUTCH
12-10
3C8642210
SPRING
12-9
3C8642191
SNAP, CLUTCH PIN-40/50D
12-8
3C8642170
CLUTCH PIN
12-26
353641210
PROP NUT(40D-140) 21MM (WRENCH)
12-2
353640330
SHIM KIT
12-14
3KYQ873231
PROP SHAFT HOUSING ASSY
