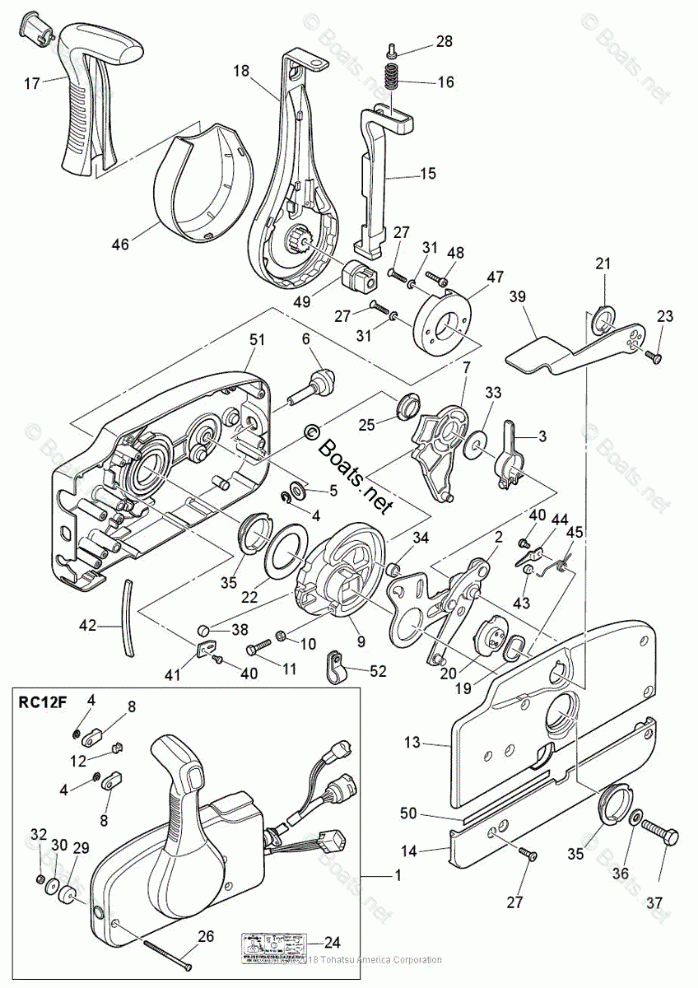

COMPONENT PARTS OF REMOTE CONTROL
COMPONENT PARTS OF REMOTE CONTROL

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MD50B2

COMPONENT PARTS OF REMOTE CONTROL

#

oem код

название

цена

26-30

WASHER

WASHER

26-41

RETAINER

RETAINER

26-4

E-RING (10 MULTIPLE)

E-RING (10 MULTIPLE)

26-36

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

26-32

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

26-10

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

26-23

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

26-40

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

26-11

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

26-21

BUSHING

BUSHING

26-25

BUSHING B

BUSHING B

26-3

ARM

ARM

26-44

RETAINER

RETAINER

26-45

SPRING, FREE ACCELERATOR

SPRING, FREE ACCELERATOR

26-43

ROLLER, FREE ACCELERATOR

ROLLER, FREE ACCELERATOR

26-22

THRUST PLATE

THRUST PLATE

26-38

ROLLER, THROTTLE DRUM

ROLLER, THROTTLE DRUM

26-34

ROLLER

ROLLER

26-16

SPRING

SPRING

26-20

DRUM, FREE ACCELERATOR

DRUM, FREE ACCELERATOR

26-33

WASHER

WASHER

26-7

SHIFT GEAR ASSY

SHIFT GEAR ASSY

26-12

GROMMET

GROMMET

26-29

SPACER

SPACER

26-19

WAVE WASHER

WAVE WASHER

26-2

THROTTLE ARM

THROTTLE ARM

26-9

DRIVE GEAR

DRIVE GEAR

26-42

SPRING

SPRING

26-8

TERMINAL EYE

TERMINAL EYE

26-5

WASHER

WASHER

26-1

RC BOX, RC12F, ALL TLDI/MFS40/50A 2018

RC BOX, RC12F, ALL TLDI/MFS40/50A 2018
