Oil Case Каталог оригинальных запчастей для лодочных моторов Tohatsu BFTW60A (Power Thrust) (2018)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

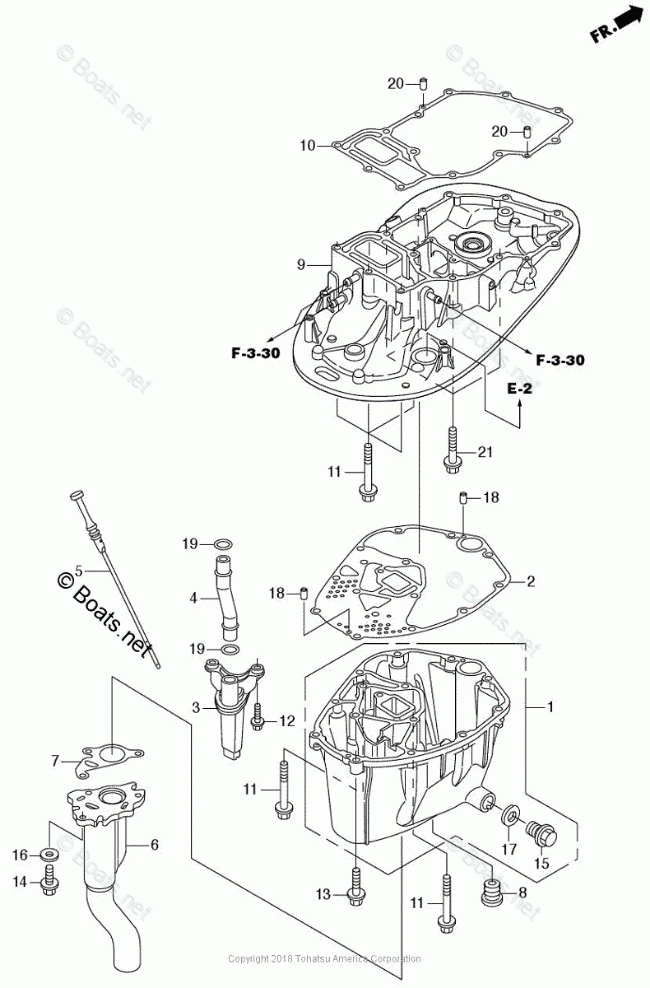

Oil Case

Tohatsu BFTW60A (Power Thrust)

Oil Case

#

oem код

название

цена

E-6-20

HCO-94301-06100

DOWEL PIN 6X10

DOWEL PIN 6X10

E-6-4

PIPE, OIL STRAINER

PIPE, OIL STRAINER

E-6-13

BOLT, FLANGE, 8X35(SUS)

BOLT, FLANGE, 8X35(SUS)

E-6-12

BOLT, FLANGE, 6X22

BOLT, FLANGE, 6X22

E-6-11

BOLT, FLANGE, 8X60(SUS)

BOLT, FLANGE, 8X60(SUS)

E-6-10

GASKET, MOUNT CASE

GASKET, MOUNT CASE

E-6-9

HZZ3-23170-405ZA

CASE COMP., MOUNT

CASE COMP., MOUNT

E-6-7

GASKET, EX. PIPE

GASKET, EX. PIPE

E-6-6

PIPE COMP., EX.

PIPE COMP., EX.

E-6-5

GAUGE COMP., OIL LEVEL

GAUGE COMP., OIL LEVEL

E-6-3

STRAINER COMP., OIL

STRAINER COMP., OIL

E-6-21

HCO-96300-0806009

BOLT, FLANGE DR 8X60

BOLT, FLANGE DR 8X60

E-6-2

PACKING, OIL PAN

PACKING, OIL PAN

E-6-1

HZZ3-11320-000ZA

CASE ASSY., OIL

CASE ASSY., OIL

E-6-18

DOWEL PIN, 6X10

DOWEL PIN, 6X10

E-6-15

BOLT, DRAIN PLUG

BOLT, DRAIN PLUG

E-6-8

GROMMET, WATER TUBE

GROMMET, WATER TUBE

E-6-16

WASHER, PLAIN, 8MM

WASHER, PLAIN, 8MM

E-6-17

WASHER, PLUG DRAIN 12MM

WASHER, PLUG DRAIN 12MM

E-6-19

O-RING 13X3.0

O-RING 13X3.0

E-6-14

BOLT, FLANGE, 8X26(SUS)

BOLT, FLANGE, 8X26(SUS)
