Crankshaft Piston Каталог оригинальных запчастей для лодочных моторов Tohatsu BFTW60A (Power Thrust) (2018)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

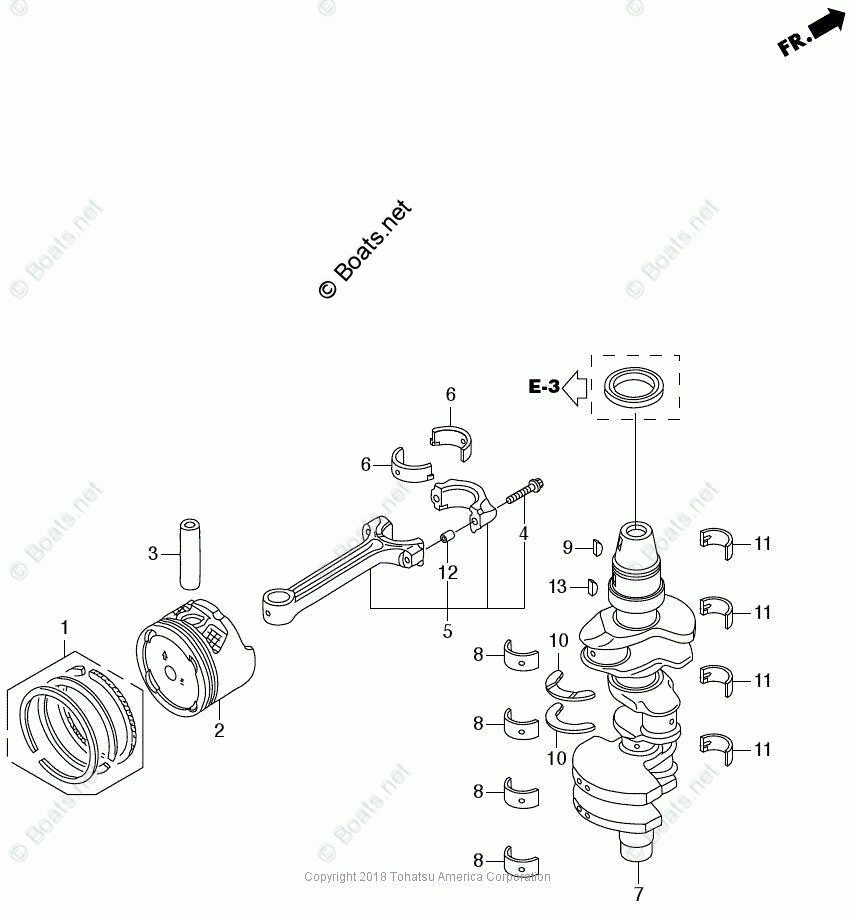

Crankshaft Piston

Tohatsu BFTW60A (Power Thrust)

Crankshaft Piston

#

oem код

название

цена

E-7-9

KEY SPECIAL WOODRUFF 25X18

KEY SPECIAL WOODRUFF 25X18

E-7-8

BEARING F, MAIN UPPER (PINK)

BEARING F, MAIN UPPER (PINK)

E-7-7

КОЛЕНЧАТЫЙ ВАЛ

КОЛЕНЧАТЫЙ ВАЛ

E-7-5

ROD COMP., CONNECTING

ROD COMP., CONNECTING

E-7-2

PISTON, STD

PISTON, STD

E-7-1

RING SET, PISTON(STD.)(RIKEN)

RING SET, PISTON(STD.)(RIKEN)

E-7-11

BEARING H, MAIN LOWER (WHITE)

BEARING H, MAIN LOWER (WHITE)

E-7-11

BEARING G, MAIN LOWER (RED)

BEARING G, MAIN LOWER (RED)

E-7-11

BEARING F, MAIN LOWER (PINK)

BEARING F, MAIN LOWER (PINK)

E-7-11

BEARING E, MAIN LOWER (YELLOW)

BEARING E, MAIN LOWER (YELLOW)

E-7-11

BEARING D, MAIN LOWER (GREEN)

BEARING D, MAIN LOWER (GREEN)

E-7-11

BEARING C, MAIN LOWER (BROWN)

BEARING C, MAIN LOWER (BROWN)

E-7-11

BEARING B, MAIN LOWER (BLACK)

BEARING B, MAIN LOWER (BLACK)

E-7-8

BEARING H, MAIN UPPER (WHITE)

BEARING H, MAIN UPPER (WHITE)

E-7-8

BEARING G, MAIN UPPER (RED)

BEARING G, MAIN UPPER (RED)

E-7-8

BEARING E, MAIN UPPER (YELLOW)

BEARING E, MAIN UPPER (YELLOW)

E-7-12

HCO-94301-08100

DOWEL PIN 8X10

DOWEL PIN 8X10

E-7-8

BEARING D, MAIN UPPER (GREEN)

BEARING D, MAIN UPPER (GREEN)

E-7-8

BEARING C, MAIN UPPER (BROWN)

BEARING C, MAIN UPPER (BROWN)

E-7-8

BEARING B, MAIN UPPER (BLACK)

BEARING B, MAIN UPPER (BLACK)

E-7-6

BEARING G, CONNECTING ROD (RED)

BEARING G, CONNECTING ROD (RED)

E-7-6

BEARING F, CONNECTING ROD (PINK)

BEARING F, CONNECTING ROD (PINK)

E-7-6

BEARING E, CONNECTING ROD (YELLOW)

BEARING E, CONNECTING ROD (YELLOW)

E-7-6

BEARING D, CONNECTING ROD (GREEN)

BEARING D, CONNECTING ROD (GREEN)

E-7-6

BEARING C, CONNECTING ROD (BROWN)

BEARING C, CONNECTING ROD (BROWN)

E-7-6

BEARING B, CONNECTING ROD (BLACK)

BEARING B, CONNECTING ROD (BLACK)

E-7-6

BEARING A, CONNECTING ROD (BLUE)

BEARING A, CONNECTING ROD (BLUE)

E-7-4

BOLT, CONNECTING ROD

BOLT, CONNECTING ROD

E-7-3

ПАЛЕЦ ПОРШНЕВОЙ

ПАЛЕЦ ПОРШНЕВОЙ

E-7-13

HCO-94401-25140

KEY, WOODRUF 25X14

KEY, WOODRUF 25X14

E-7-10

WASHER, THRUST

WASHER, THRUST
