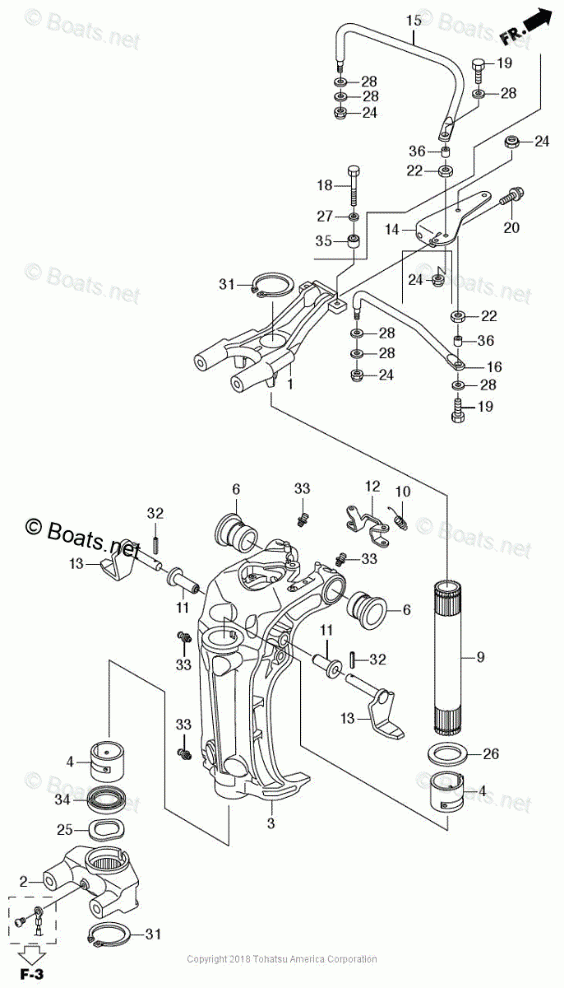

ПОВОРОТНЫЙ КРОНШТЕЙН

Tohatsu BFTW60A (Power Thrust)
Tohatsu
#oem кодцена
F-11-18
HZV0-90113-000
BOLT, HEX., 6X35
F-11-31
HZW4-90651-000
CIRCLIP, EXTERNAL, 39MM
F-11-16
HZZ3-53238-610
ROD, STEERING
F-11-14
HZZ3-53234-000
PLATE, STEERING
F-11-13
HZZ3-50529-000
STOPPER, TILT
F-11-9
HZZ3-50417-000
SHAFT, SWIVEL
F-11-3
HZZ3-50201-000ZC
CASE, SWIVEL
F-11-2
HZZ3-50161-000ZE
HOUSING, LOWER CENTER MOUNTING
F-11-1
HZZ3-50101-000
FRAME, MOUNT
F-11-19
HZY3-90117-000
BOLT, 3/8 X 24 UNF
F-11-20
HZW9-90154-000
BOLT, FLANGE, 10X25
F-11-32
HZW6-90752-000
PIN, SPRING, 2.5X20
F-11-6
HZW1-50214-000
BUSH, SWIVEL CASE
F-11-27
HZV4-90506-000
WASHER, PLAIN, 6MM
F-11-33
HZV7-90951-010
NIPPLE, GREASE
F-11-36
HZV5-91560-000
COLLAR, STEERING ROD
F-11-34
HZV5-91256-003
OIL SEAL (39.5X52X6)
F-11-26
HZV5-90504-000
WASHER, 34MM
F-11-25
HZV5-90501-000
WAVE WASHER, 40MM
F-11-24
HZV5-90307-003
NUT, SELF LOCK, 3/8-24 UNF
F-11-22
HZV5-90302-000
NUT, 3/8-24 UNF
F-11-12
HZV5-50527-000
BRACKET, TILTING
F-11-11
HZV5-50522-000
BUSH, TILT ARM
F-11-10
HZV5-50515-000
SPRING, TILT LEVER
F-11-28
HZV4-90514-000
WASHER, 10MM
F-11-4
HZZ5-50211-000
LINER, SWIVEL CASE
