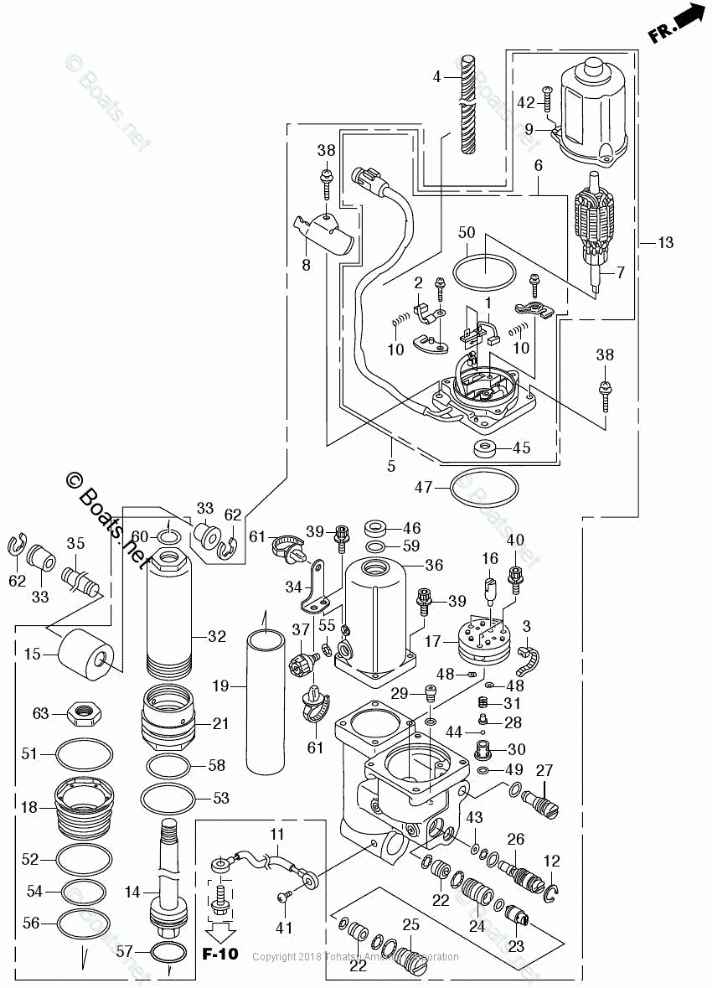

POWER TRIM & TILT

Tohatsu BFTW60A (Power Thrust)
Tohatsu
#oem кодцена
F-11-20-16
H766-56113-801
JOINT, DRIVE
F-11-20-15
HZZ3-56113-003
METAL, JOINT
F-11-20-58
HZW4-91357-H11
O-RING, 2.0X34.5
F-11-20-60
HZW4-91359-H11
O-RING, 2.4X15.8
F-11-20-12
HZY1-53549-871
CIRCLIP, INTERNAL(16)
F-11-20-2
HZY3-31106-003
BRUSH ASSY.
F-11-20-11
HZY3-40219-013
WIRE, LEAD (1.5X116MM)
F-11-20-5
HZZ3-36120-003
MOTOR ASSY., POWER TILT
F-11-20-13
HZZ3-56000-033
TRIM-TILT ASSY., POWER (BFT60/BFTW60)
F-11-20-26
HZZ3-56170-003
VALVE COMP., MANUAL
F-11-20-55
HZW4-91355-H11
O-RING, 1.8X10.8
F-11-20-32
HZZ3-56511-003
TUBE, OUTER
F-11-20-36
HZZ3-56851-003
RESERVOIR
F-11-20-37
HZZ3-56860-003
CAP, OIL TANK
F-11-20-46
HZZ3-91254-003
SEAL, WATER
F-11-20-53
HZZ3-91353-003
O-RING, 3.5X41.7
F-11-20-54
HZZ3-91354-003
O-RING, 2.4X41.2
F-11-20-56
HZZ3-91355-003
O-RING, 2.0X45.5
F-11-20-59
HZZ3-91357-003
O-RING, 1.9X15.8
F-11-20-57
HZW4-91356-H11
O-RING, 2.0X28.5
F-11-20-52
HZW4-91352-H11
O-RING, 2.0X49.5
F-11-20-62
HCO-94540-10029
E-RING, 10MM
F-11-20-42
HZV5-90134-821
SCREW, PAN, 5X20
F-11-20-3
HMG9-35701-950
BAND, TY-RAP
F-11-20-61
HS0A-91541-003
CLIP, HARNESS BAND (BLACK)
F-11-20-43
HV15-90402-003
WASHER, SEAL
F-11-20-9
HZV5-36129-822
YOKE COMP.
F-11-20-10
HZV5-36136-821
SPRING, MOTOR
F-11-20-33
HZV5-56512-000
BUSH, UPPER CYLINDER
F-11-20-38
HZV5-90001-791
SCREW-WASHER
F-11-20-41
HZV5-90119-000
SCREW, PAN, 6X8
F-11-20-45
HZV5-91203-821
OIL SEAL
F-11-20-51
HZW4-91351-H11
O-RING, 2.0X52.5
F-11-20-47
HZV5-91302-821
O-RING, 1.8X69.6
F-11-20-48
HZV5-91304-821
O-RING, 1.5X6.5
F-11-20-49
HZV5-91311-822
O-RING, 1.5X3.5
F-11-20-50
HZV5-91318-822
O-RING, 2.0X55.5
F-11-20-1
HZW4-30280-H11
BREAKER ASSY.
F-11-20-7
HZW4-36123-H12
ARMATURE COMP.
F-11-20-17
HZW4-56114-H11
PUMP
F-11-20-39
HZW4-90111-H11
BOLT, SOCKET, 5X0.8
F-11-20-35
HZZ5-56532-C00
PIN, UPPER CYLINDER
