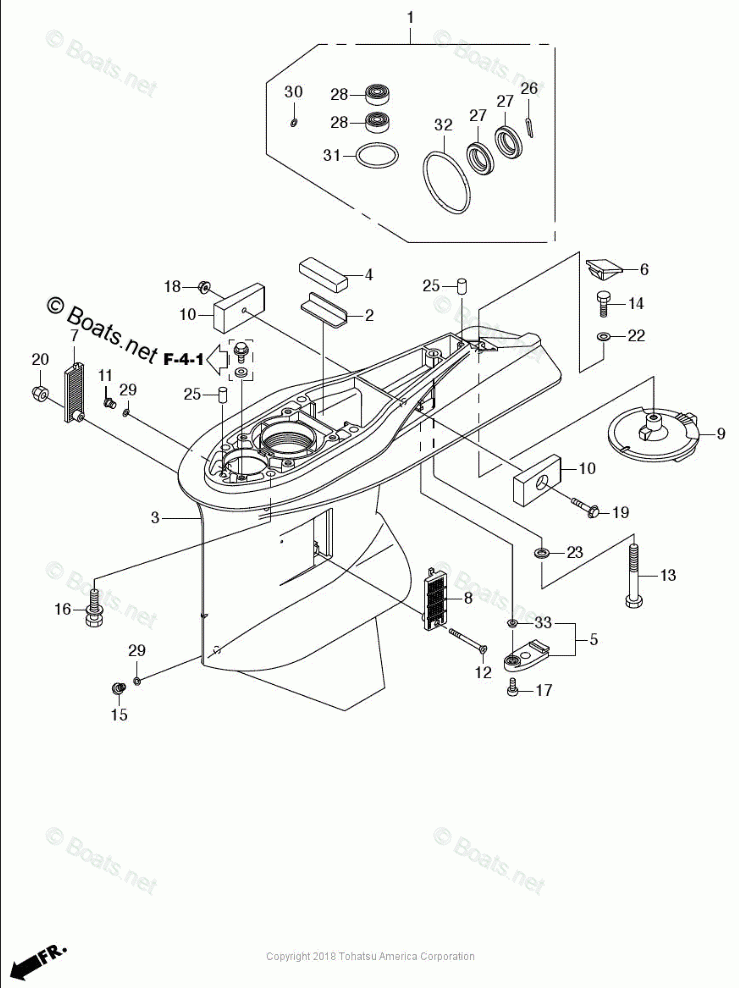

GEAR CASE (W60A-POWER THRUST MODEL)

Tohatsu BFTW60A (Power Thrust)
Tohatsu
#oem кодцена
F-3-11-19
HHW1-90225-670
BOLT, FLANGE 6X35 (SUS)
F-3-11-15
HZY3-90120-000
BOLT, DRAIN PLUG
F-3-11-1
HZZ3-06125-E00
SEAL KIT, GEAR CASE BFW60A
F-3-11-12
HZZ0-90101-000
SCREW, FLAT, 5X55
F-3-11-9
HZZ0-41107-000ZD
TAB, TRIM
F-3-11-8
HZZ0-41105-010
SCREEN, L. WATER, BFT75/90A, BFTW60A
F-3-11-7
HZZ0-41104-010
SCREEN, R. WATER, BFT75/90A, BFTW60A
F-3-11-6
HZZ0-41103-000
GROMMET, GEAR CASE
F-3-11-5
HZZ0-41102-000
COVER B, GEAR CASE
F-3-11-3
HZZ0-41101-000ZD
CASE, GEAR (AMB) BFTW60A
F-3-11-3
HZY9-41101-H00ZB
CASE, GEAR (AMB) BFT75/90A
F-3-11-16
HZY6-90123-000
BOLT W/WASHER 10 X 40
F-3-11-33
HZY3-91556-000
COLLAR, DISTANCE, 6.5X9X3
F-3-11-28
HZY3-91254-003
SEAL, WATER 12X21X6
F-3-11-17
HZY3-90133-000
BOLT, SOCKET, 6X16
F-3-11-18
HZY1-90205-000
NUT, SELF-LOCK, 6MM
F-3-11-31
HMJ0-91308-003
O-RING
F-3-11-11
HZW9-90101-003
BOLT, OIL CHECK
F-3-11-29
HZW4-91301-003
O-RING 6.9X1.45
F-3-11-30
HZW4-91301-003
O-RING 6.9X1.45
F-3-11-32
HZW1-91351-B02
O-RING, 94X4.1
F-3-11-26
HZW1-90758-B00
PIN, SPLIT 4.0
F-3-11-13
HZW1-90104-900
BOLT, HEX., 10X80
F-3-11-10
HZW1-41109-B00
ANODE, METAL, GEAR CASE
F-3-11-4
HZW1-41102-B00
GROMMET, GEAR CASE
F-3-11-2
HZW1-19286-B00
PLATE, RUBBER SETTING
F-3-11-25
HZV5-90756-000
DOWEL PIN, 6X10
F-3-11-23
HZV5-90563-000
WASHER, PLAIN, 10MM
F-3-11-14
HZV5-90115-000
BOLT, HEX., 8X25
F-3-11-22
HZV4-90507-000
WASHER, PLAIN, 8MM
F-3-11-20
HZV4-90302-000
NUT, SELF-LOCK, 5MM
F-3-11-27
HZZ3-91252-003
SEAL, PROPELLER SHAFT
