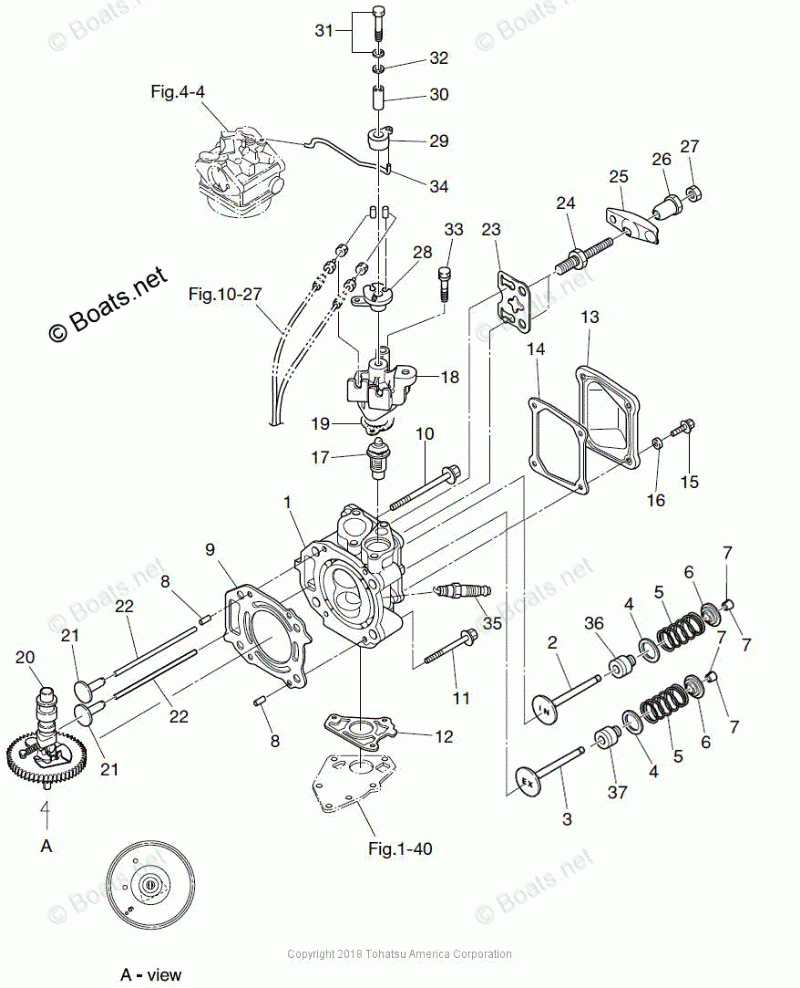

DOWEL PIN 6-12

BOLT

PIVOT, ROCKER ARM

ADJUST NUT (4.0mm THICK)

THROTTLE ROD

COVER, CYLINDER HEAD

BOLT, CYLINDER HEAD

COTTER

SEAL, INT VALVE STEM

PLATE, PUSH ROD

SEAL, EXH VALVE STEM

COLLAR

CAMSHAFT ASSY., MFS/NSF4/5/6A2-C

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

BOLT, PIVOT

PUSH ROD

GASKET, THERMOSTAT *{/*For 40C serial 94363 and below has different gasket. That gasket is no longer available. Have to replace cylinder head and thermostat cap to newer style.*/}*

THROTTLE DRUM

VALVE SPRING

WASHER

WASHER

VALVE, INTAKE

VALVE, EXHAUST

ROCKER ARM

THROTTLE OPENER

LIFTER

CYLINDER HEAD, MFS/NSF4/5/6A2/B/C

CAP, THERMOSTAT

GASKET, CYLINDER HEAD

GASKET, HEAD COVER

THERMOSTAT

GASKET, EXHAUST PORT

SEAT, VALVE SPRING

SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)
