08- rear arm, foothill Запчасти для снегоходов Ski-Doo (Bombardier) Summit 600/700/800 (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

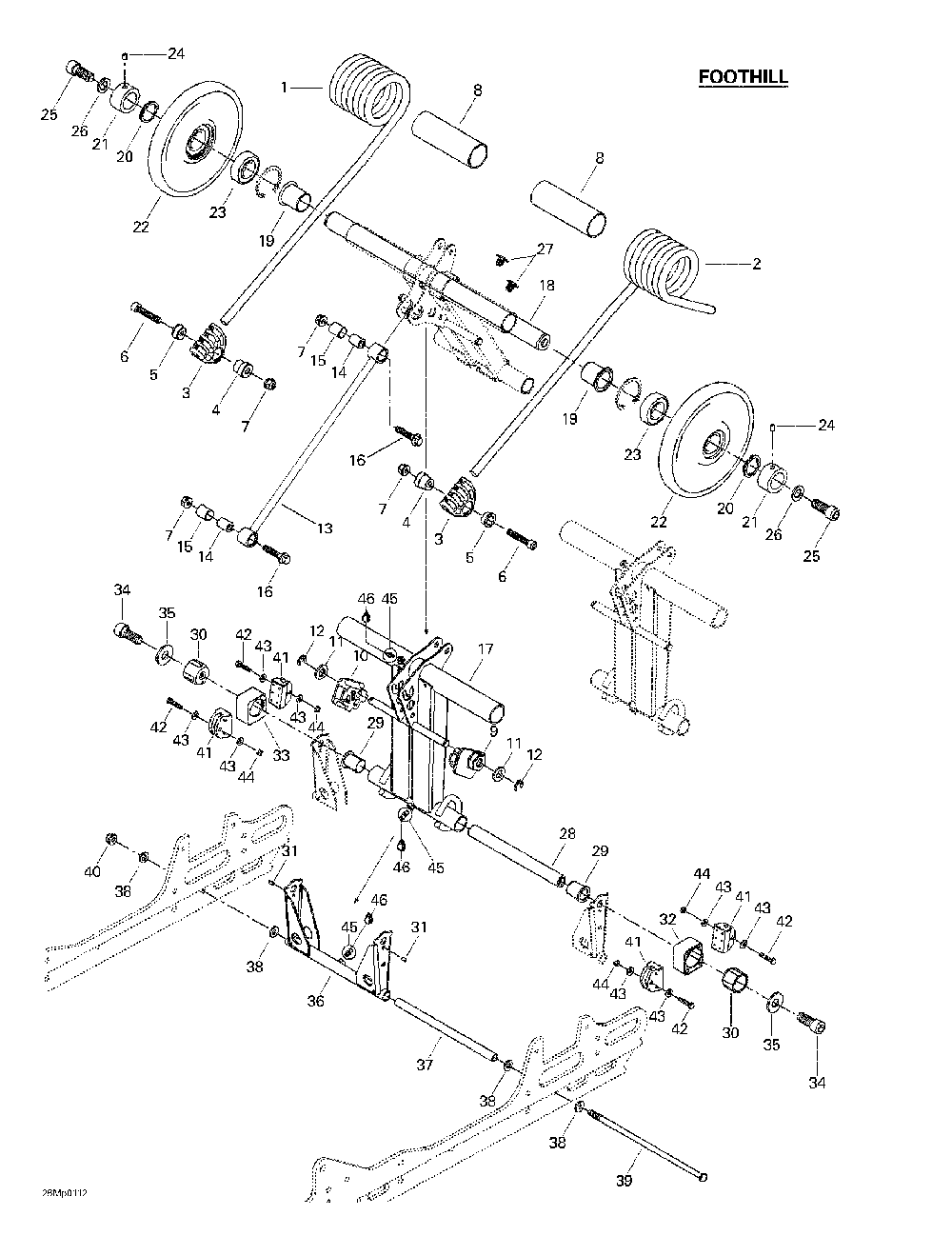

08- rear arm, foothill

Ski-Doo (Bombardier) Summit 600/700/800

08- rear arm, foothill

#

oem код

название

цена

1

Ressort Peint *spring-paint Summit 800.

Ressort Peint *spring-paint Summit 800.

2

Ressort Peint *spring-paint Summit 800.

Ressort Peint *spring-paint Summit 800.

3

Support Ressort*support-spring Summit 800.

Support Ressort*support-spring Summit 800.

4

Axe Guide Ress.*axle-guide Spring Summit 800.

Axe Guide Ress.*axle-guide Spring Summit 800.

5

Coussinet Reten*cushion-retain. Summit 800.

Coussinet Reten*cushion-retain. Summit 800.

6

Screw-socket Hd.din.912 Summit 800.

Screw-socket Hd.din.912 Summit 800.

7

Nut-flange Elastic Din.6926 Summit 800.

Nut-flange Elastic Din.6926 Summit 800.

8

Douille Plast. *bushing-plastic Summit 800.

Douille Plast. *bushing-plastic Summit 800.

9

Came Ressort Ga*cam-spring Lh Summit 800.

Came Ressort Ga*cam-spring Lh Summit 800.

10

Came Ressort Dr*cam-spring Rh Summit 800.

Came Ressort Dr*cam-spring Rh Summit 800.

11

Washer-flat Din.125a Summit 800.

Washer-flat Din.125a Summit 800.

12

Circlip Type"e"*circlip-"e"type Summit 800.

Circlip Type"e"*circlip-"e"type Summit 800.

13

Tige Accel.long*rod-throttle Long Summit 800.

Tige Accel.long*rod-throttle Long Summit 800.

14

Axe De Tige *axle-rod Summit 800.

Axe De Tige *axle-rod Summit 800.

15

Coussinet *cushion Summit 800.

Coussinet *cushion Summit 800.

16

Screw-hex.flange Din.6921 Summit 800.

Screw-hex.flange Din.6921 Summit 800.

17

Bras Arriere P.*arm-rear P. Summit 800.

Bras Arriere P.*arm-rear P. Summit 800.

18

Axe Superieur *shaft-upper Summit 800.

Axe Superieur *shaft-upper Summit 800.

19

Coussinet *cushion Summit 800.

Coussinet *cushion Summit 800.

20

Ressort Axe *spring-axle Summit 800.

Ressort Axe *spring-axle Summit 800.

21

Anneau Retenue *ring-retainer Summit 800.

Anneau Retenue *ring-retainer Summit 800.

22

Roue 165 *wheel-165 Includes 22 - 23. Summit 800.

Roue 165 *wheel-165 Includes 22 - 23. Summit 800.

23

Ball Bearing Summit 800.

Ball Bearing Summit 800.

24

Screw-set Socket Din.913 Summit 800.

Screw-set Socket Din.913 Summit 800.

25

Screw-socket Hd.din.912 S.grip Summit 800.

Screw-socket Hd.din.912 S.grip Summit 800.

26

Rondelle *washer Summit 800.

Rondelle *washer Summit 800.

27

Dard Pare-brise*dart-windshield 1=1 Pac Summit 800.

Dard Pare-brise*dart-windshield 1=1 Pac Summit 800.

28

Axe Inferieur *shaft-lower Summit 800.

Axe Inferieur *shaft-lower Summit 800.

29

Coussinet *cushion Summit 800.

Coussinet *cushion Summit 800.

30

Guide Bloc *guide-block Summit 800.

Guide Bloc *guide-block Summit 800.

31

Dowel-pin 4 X 8mm Summit 800.

Dowel-pin 4 X 8mm Summit 800.

32

Bloc Gauche *block-lh Summit 800.

Bloc Gauche *block-lh Summit 800.

33

Bloc Droit *block-rh Summit 800.

Bloc Droit *block-rh Summit 800.

36

Jumelle Peinte *arm-pivot P. Summit 800.

Jumelle Peinte *arm-pivot P. Summit 800.

37

Axe Jumelle *axle-pivot Summit 800.

Axe Jumelle *axle-pivot Summit 800.

38

Rondelle *washer Summit 800.

Rondelle *washer Summit 800.

39

Boulon 248mm *bolt 248mm Summit 800.

Boulon 248mm *bolt 248mm Summit 800.

41

Butee Caout. *stopper-rubber Summit 800.

Butee Caout. *stopper-rubber Summit 800.

42

Screw-hex.cap Din.931 Summit 800.

Screw-hex.cap Din.931 Summit 800.

43

Rondelle *washer Summit 800.

Rondelle *washer Summit 800.

44

Nut-stop Elastic Din.985 Summit 800.

Nut-stop Elastic Din.985 Summit 800.

45

Graisseur *grease Fitting Summit 800.

Graisseur *grease Fitting Summit 800.

46

Synthetic Grease 10x14oz Summit 800.

Synthetic Grease 10x14oz Summit 800.

29

Coussinet *cushion Summit 800.

Coussinet *cushion Summit 800.
